Product Specifications
Product Description

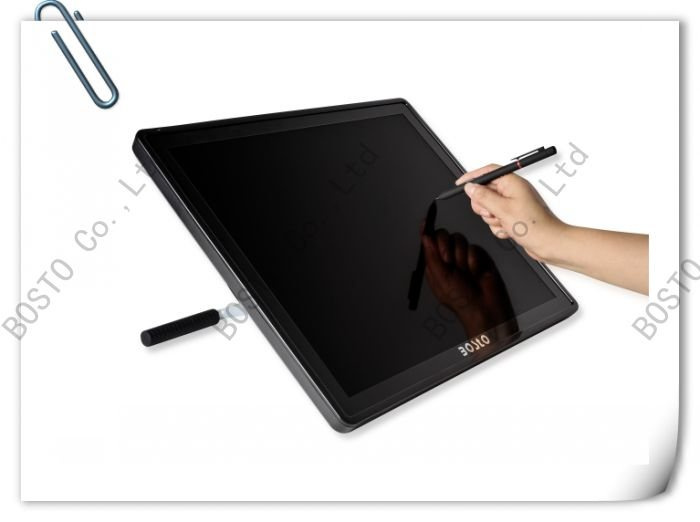

Clear, easy-to-understand presentations This 19-inch LCD interactive pen display was built on the KINGTEE 19M framework in order to utilizeBosto`s patented pen technology for graphic design, business, education. The pen display allows designers, teachers, lecturers, and anyone doing a presentation to annotate directly on-screen while you display your screen via a projector for the audience. The exciting, interactive presentations will capture the attention of your students or colleagues.
The Pen Technology, a natural experience
2048 levels of pressure sensitivity and based on over 5 years of experience in building digital pens that feel like the real thing, Bosto`s patented electro-magnetic resonance pen technology provides the world`s most sophisticated pen input experience. Even first time users will be surprised at how similar writing on-screen is to writing on paper.
Compatible with Tablet PCS
Many of the tablet PC`s currently offered on th e market are built with Bosto`s Penabled component technology. The KINGTEE 19MB`s pen technology is compatible with any of these devices
The Display
The KINGTEE 19MB`s 19-inch active matrix LCD display provides easy-to-see brightness with rich colors, and wide 140-degree horizontal, 125-degree vertical viewing angles for collaboration between two or more people.
Connectivity
Analog RGB video in, composite video-in; USB data connection. Bosto pen tablets and displays offer a better way to use a computer by allowing your hand to remain in its natural position while navigating instead of twsiting it as you do when using a mouse. Furthermore, the KINGTEE 19MB and other pen displays allow you to access menus directly and with accuracy as you work directly on screen with the pen. The faster workflow is one reason why hospitals, clinics and pharmacies choose to install pen displays
Easy to use
* Cordless for free movement and consistent reliability.
* Pen eraser works just like a pencil eraser to erase text or inking mark-UPS depending on the application you are using.
* The adjustable stand allows you to tilt the screen between 18 and 74-degrees from the vertical. The stand can also be removed to mount the unit on any VESA standard LCD mount arm
Product Details
Display Panel; 19-inch
Resolution: 1440 x 900 (XGA)
Pixel pitch: 0.297 x 0.297 mm
Color Depth: 4.3 million colors
Contrast Ratio: 500: 1
Brightness (CD/m 2 ): 250
Refresh rate: 16 ms
Viewing Angles: 140° / 125° (vertical /horizontal)
Backlight lifetime: 30, 000 hours
Tablet & Pen
Cordless pen: Yes
Pen pressure levels: 2048 levels
Customizable pen buttons
Tablet Resolution; 5080 lpi
Coordinate accuracy ± 0.5mm (center)
Tablet reading height: 5 mm
Report rate: 200 points/sec
Data interface: USB
Data cables: USB cable
General
Dimensions (W x H x D): 450 x 300 x 43 mm
Weight (with stand): 4.8 kg
Anti-glare reduction film: Yes
USB hubs: 1
Operating temperature: 5° To 35°
Operating humidity: 20% to 80% RH
Others
Windows: XP/Vista /seven
Macintosh: OS (not support)
Power supply input: AC 100-240V, 50-60Hz
Maximum power consumption: 36W
