Product Specifications
| Prod Model: |
YL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
| Touch Panel: |
Saw or Resistive |
| Cabinet: |
Cold Rolled Steel |
| Material: |
Cold Rolled Steel |
| Size: |
15"-19" |
| Function: |
Customize |
Product Description

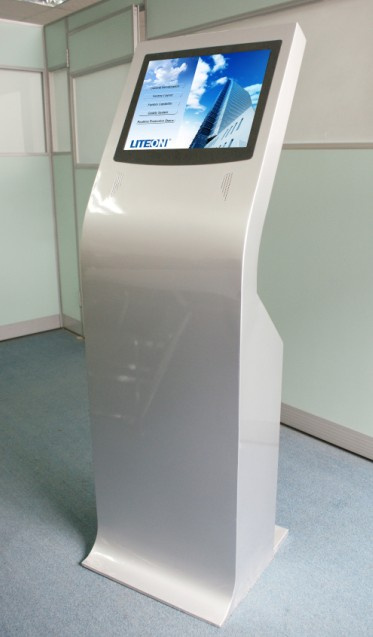

Yulian touch kiosks are designed for banks, hotels, communities, tourist services, telecommunication services, and any other service centers which can widely provide information query. It also can be used for information query and charge collection at securities markets, insurance services and taxation agencies. Unitary package and transportation will greatly reduce maintenance and transportation cost.
|
Components |
Model No. |
Detailed Discription |
|
Computer parts |
PC Host |
Motherboard: G41 |
|
CPU: Intel Celeron Dual-Core 2.2Ghz |
|
RAM:DDRIII 2GB; Hard Disk:320 GB 7200r |
|
1 RS-232 Ports,4 USB Ports,1 LTP, 1 VGA\ 1 10/100M Net Port |
|
Integrated Net Card, Sound Card Graphic Card |
|
Additional colorful display card |
|
Computer case and power supply |
|
Monitor |
17" LCD |
Brightness: 300lumens/m2 |
|
Contrast: 1000:1 |
|
Response Time:5ms Dot pitch: 0.297 |
|
Max. resolution:1280*1024 |
|
Touch Screen |
17'' 5 wire |
High Transparence, high precision and durability |
|
Thickness: 2.2mm, Max: 4096x4096 |
|
Hitting Life Expectancy: Over 35 million |
|
Force<100G; Response Time:<15ms |
|
Cabinet |
YULIAN |
Material: Cold rolled steel ST12 SPCC The surface: color optional |
Thickness: 1.5mm Network function: four-core telphone or RJ45 network tie-in
( Standard of RJ45) |
|
Work environment: temperature:+5 ~ +35 ; humidity:40% ~ 80% |
|
Speakers |
|
Left and right bi-channel; amplified output; Multimedia speaker |
|
Dimension |
|
147*58*40cm |
|
Enclosure |
YL2009 |
Durable steel frame, powder coated; Slim and smart design; Easy to install and operate; Moistureproof.Antirust Anti-acid.Anti-dust.Static free. Color upon request. |
|
OS Software |
|
Microsoft Windows pro XP+SP3(Test version) All hardware driver available |
|
Packing |
|
Bubble Foam, Carton, Wooden Case |
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
