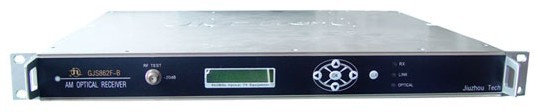

FEATURES
1290~1580nm optical wavelength.
862MHz RF bandwidth.
Return path optional. Frequency splitting according to customer's need.
2 RF outputs, level ≥ 104dBμV when optical input @ -1dBm.
Output level tunable through buttons on front panel.
RF Test Point on front panel.
High quality switch power supply.
19', 1RU.
|
Forward Path |
Unit |
Specifications |
|
Optical Wavelength |
nm |
1290~1580 |
|
Reflection Loss |
dB |
≥ 45 |
|
Input Range |
dBm |
-4~+2 |
|
|
|
RF Frequency Range |
MHz |
47~862 |
|
Output Level |
dBμ V |
≥ 104 |
|
Reflection Loss |
dB |
≥ 14 |
|
Flatness |
dB |
± 0.75 |
|
C/N |
dBc |
≥ 51 |
|
C/CSO |
dBc |
≥ 60 |
|
C/CTB |
dBc |
≥ 65 |
|
* 59-CH PAL-D flatness input, GFS1310F-B 1310nm optical transmitter, -1dBm optical receiving. |
|
TestPort |
dB |
-20 ± 2 |
|
Isolation Impedance |
MΩ |
≥ 2 (DC500V) |
|
Others |
|
Power Supply |
V |
AC 160~265 V, 50/60Hz |
|
Power |
W |
≤ 20 |
|
PowerPassCurrent |
A |
6 |
|
Working Temperature |
|
-5~+40 |
|
Connector |
- |
SC/APC or FC APC for optical, F connector for RF |
|
Reverse Path (Optional) |
|
Optical Wavelength |
nm |
1310± 20 |
|
Transmitting Power |
mW |
1.0 ~ 1.5 mW |
|
RF Frequency |
MHz |
50~30/42/65 |
|
RF Input Level |
dBμ V |
75± 5 |
|
Reflection Loss |
dB |
≥ 16 |
|
Flatness |
dB |
± 1 |
|
NPRRange |
dB |
≥ 15 (FP Laser) |
