Product Specifications
| Prod Model: |
MS5203 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

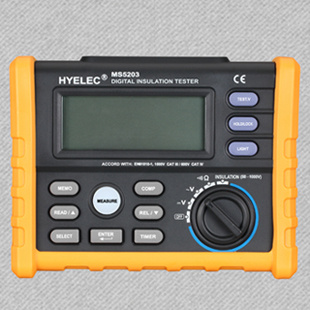

1kv Megohmeter 10G Ohms 1kv Megger Digital Insulation Tester MS5203
1kv Megohmeter
Digital Insulation Tester
1kv Meggers
Specifications
Complies with IEC/EN 61010-1 1000V CAT III, 600 V CAT IV.
6600 Count(except for capacitance, temperature, insulation)
1000V DC Voltage, 750V AC Voltage(TRMS)
Insulation Measurement
Range: 0.01 MΩ To 10.00 GΩ
Insulation Test Voltages: 50, 100, 250, 500, 1000 V
Insulation Source Voltage: + 20 %, - 0 %.
Insulation Short-Circuit Test Current: 1.8mA nominal
Storage Temperature: -40 ° C to 60 ° C.
Operating Temperature: 0° C to 40 ° C.
Storage Altitude: 12000m
Relative Humidity: 40%~75%.
Size: 180(L) mm× 140(W) mm× 65(H)mm.
Weight: Approx 900g. (not including battery)
When the input terminals is Hi and Lo, The overload protective voltage is 600V. When the input terminals is V and COM, the overload protective voltage is 1200 V under the voltage test; In other test mode, the overload protective voltage is 250V.
Batteries: Six AA batteries(NEDA15A or IEC LR6) meter use 1000 hours, insulation test use, meter can perform ar least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000V into 1 MΩ With a duty cycle of 5 seconds on and 25 seconds off.
Weight: Approx 900g. (not including battery)
|
Features |
|
Digital Display & Analog Display |
|
Low Battery Display |
|
Auto Power Off |
|
Display Backlight |
|
Auto Calculate PI and DAR |
|
Store /Load Function |
|
Compare function |
|
Auto discharge for capacitive load |
|
Timer Function for insulation test |
|
Lock function for insulation test |
|
DCV and ACV Test |
|
Continuity test |
|
Power supply |
6 x1.5V AA batteries |
|
Weight |
Approx 950g |
|
Size |
180mm x 140mm x65mm |
|
Safety Rating |
CE ETL CAT III 1000V. CAT IV 600V RoHS |
|
Specifications |
|
Insulation Test |
Source Output Voltage |
Measuring Range |
|
50V( 0 % - 20%) |
0.01MΩ - 50MΩ±(3%+5) |
|
100V( 0% - 20%) |
0.01MΩ - 100MΩ±(3%+5) |
|
250V( 0% - 20%) |
0.01MΩ - 250ΩM±(3%+5) |
|
500V( 0% - 20%) |
0.01MΩ - 500MΩ±(3%+5) |
|
1.00GΩ - 5.00GΩ±(5%+0.1GΩ) |
|
1000V( 0% - 20%) |
5.00GΩ - 10.00GΩ ±(10%+0.2GΩ) |
|
Short Circuit Current |
1.8mA |
|
Multimeter |
DC Voltage Test |
0.1 - 1000V ±0.5% |
|
AC Voltage Test |
0.1 - 750V ±1% |
|
Continuity Test |
0.01Ω - 200Ω ±0.5% |
