Product Specifications
| Prod Model: |
DMS-701 |
| Markets: |
North America,Eastern Europe,Western Europe |
| Camera: |
CMOS 0.3mega Pixel |
| Power: |
110V-240V |
| Lens Viewing Angle: |
100° Wide Angle |
| Battery: |
2100mAh Rechargeable Lithium Battery |
| Transmission Distance: |
600 Meters in Open Land |
| Material: |
ABS Plastic and Hardware |
| PIR: |
Human Body Detection |
| One Camera: |
with 3 Monitors at The Most |
| Certificate: |
CE, RoHS, FCC Compliant |
| Type: |
Video Doorbell |
| Talkback Type: |
Color Video |
| Automation: |
Automatic |
| Peephole: |
Without Peephole |
| Wireless: |
Wireless |
| Active Doorbell: |
Wireless Video Doorbell |
| Wireless Video Doorbell Function: |
Remote Control Unlocking |
| Application Scope: |
Home |
| Waterproof: |
Waterproof |
| Power Source: |
Plug or Rechargable Battery |
Product Description
1.Product description

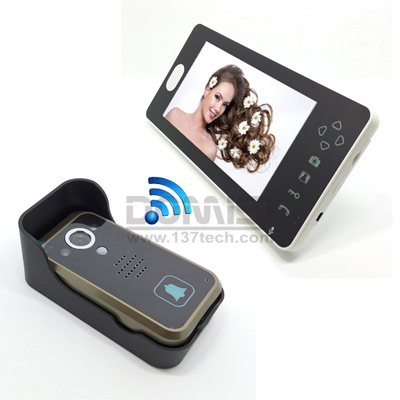

This color video doorphone is a convenient and secure way to monitor and control an entryway such as a door or gate from up to 600 meters away.
When a guest or visitor presses the call button on the camera unit, the homeowner can use one of up to three lightweight hand-held wireless LCD monitors to see who is requesting entry, talk with the caller, take a photo, and decide whether or not to grant entry.
2.Specifications
Outdoor unit |
Battery |
2100mAh rechargeable lithium battery |
Working current |
350mA |
Dimension |
134×74×31mm |
Weight |
130g |
Working temperature |
-10ºc~+50ºc |
Waterproof grade |
IP55 |
Placement |
Hang on wall |
Material |
ABS & hardware accessories |
Camera lens |
CMOS 300, 000 pixels |
View angle |
100° wide angle |
Night vision pattern |
Infrared lamps |
PIR detection range |
3m*100° |
Battery working duration |
7 hours continuously |
Battery standby time |
1050 hours for wireless doorphone |
Battery charge time |
4 hours |
External power |
DC5V/1A |
Indoor monitor |
Battery |
2100mAh rechargeable lithium battery |
Working current |
450mA |
Dimension |
230*150*17mm |
Weight |
355g |
Working temperature |
-0ºc~+40ºc |
Placement |
Hand-held or placed on desk |
LCD |
7" TFT color screen |
Launch frequency |
2.4GHz |
Images transmission speed |
25fps |
Picture compression |
JPEG |
Battery working duration |
5 hours continuously |
Battery standby time |
300 hours for wireless video doorphone |
Battery charge time |
4 hours |
External power |
DC5V/1A |
Transmission range |
About 600m in open space |
Ringing tones |
12 melodies optional |
3.Features
1.2.4GHz digital frequency ensures strong and stable signal transmission;
2.Camera with 2 infrared lights for night vision;
3.Indoor monitor can save about 100 photos;
4.7" TFT color display and 0.3mega pixel camera;
5.Hands-free intercom, unlocked by wireless control;
6.Lithium battery is replaceable and rechargeable for color video doorphone;
7.Brightness can be adjusted and 12 kinds of ring for selection;
8.Rainproof cover design greatly prevents the rain eroding the outdoor camera;
9.With high-sensitive touch panel;
10.Power can be supplied by lithium battery or power source.
4.Packaging
| Outer carton size: | Multiple of 12 sets |
|---|
| Gift box size: | 54X51X30 cm |
|---|
| Single gross weight: | 23.0 kg |
|---|
Single Package Included:
1pc* indoor monitor
1pc* outdoor camera
2pcs* power adapter
2pcs* USB cable
1pc* install screws package
1pc* user manual
2pcs* lithium battery
