Product Specifications
| Prod Model: |
3110-XXSG0BD00A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Rating: |
3.0AMP/1.0AMP |
| Current Resistance: |
20m. Max |
| Insulation Resistance: |
1000m. Min |
| Withstand Voltage: |
500V AC/Minute |
| Operation Temperature: |
-40o to +105o |
| Application: |
UHF |
| Gender: |

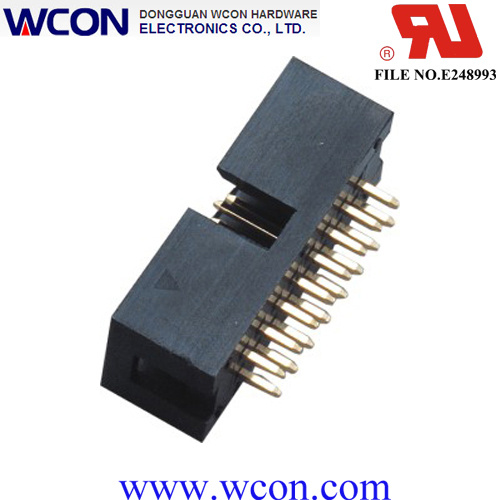

Box Header |
Product Description
Current Rating: 3.0AMP
Current Resistance: 20mΩ Max
Insulation Resistance: 1000mΩ Min
Withstand Voltage: 500V AC/Minute
Operation Temperature: -40º C to +105º C
Contact Material: Brass
Contact Plating: Au Or Sn over Ni
Insulator Material: Polyester(UL94V-O)
Standard: PA9T or PBT+30%G. F
http://www.wcon.com/productstype/box-header-connector.htm
| WCON Hardware Electroncs Co.,Ltd. |
|
| Product name: Ejector Header Connector |
| Product features: high temperature resistant to high voltage electrical conductivity |
| Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating |
Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal |
Dongguan WCON Hardware Electronics Co., Ltd. is located in Boye Ind. Park, Zhongnanzhong Road., Shangsha District, Chang'an Town, Dongguan City, Guangdong province. We are honored as "National High-Tech Enterprise", "Guangdong Famous Brand Enterprise", "Provincial Private Technology Enterprise", "Dongguan City Private Technology Enterprise", "Patent foster enterprise" and "National Creditable Enterprise", "Provincial hardware association", "Dongdong Hardware Moulding Association" member enterprise and "Chang'an Large Private Taxpayer".
The factory, with a floorage of 13, 000sqm, has about 600 employees and owns 30 sets of precision molding equipment, 25 sets of Taiwan & Japan 35-120 ton precision plastic injection machines, 15 sets of Japan & Taiwan precision high-speed punch machines, more than 450 sets of various types of plastic molds and more than 200 sets of hardware terminal molds, 30 sets of laboratory testing equipment and over 130 sets of machines for automatic assembly that can provide customers with over 10 sorts and 20, 000 different specifications of connectors parts. Our company handles import-export rights. 70% of products are exported to Euro-American countries.
Company has always emphasized on the intellectual property rights and self-Innovation. The products have passed the utility model and have 29 national patents for the appearance. There are still five items at the national patent office review. The company also focuses on creating the independent brand of "WCON", and have already obtained "Guangdong Famous Brand" honor.
We emphasize on canonical management and high-quality requirements. We have already acquired ISO9001/ISO14001/QC080000/TS16949 and OHSAS 18001 international quality/environment/management/Occupational Health and Safety Management system certifications. All products are RoHS and REACH compliant. The main 10 series products have obtained American UL & Canada cUL certification, with the File No. E248993. Solar junction boxes and connectors have obtained Germany TUV certification.
The products are widely used in various types of consumer electronic appliances, telecommunications, industrial & electric power control, medical equipment, automotive electronics, solar photoelectricity & LED photoelectricity etc., industries. We are providing our customers with the most reliable and precise connectors.
