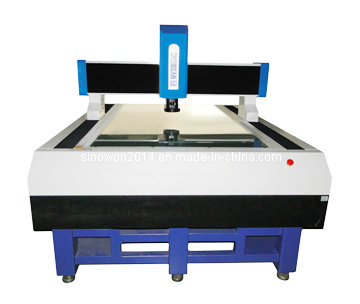

2.5D Large CNC Video Measuring Machine (VML-1512CNC)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
VML-1512CNC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
X/Y-Axis: 3+L/200(Um) |
| Metal Stage Size: |
1790X1390mm |
| Glass Stage Size: |
1709X1209mm |
| X/Y-Axis Travel: |
1600X1200mm |
| Dimension(Mm): |
2700X1900X1700 |
| Net Weight: |
4000kg |
| Max. Load Capacity: |
15kg |
Product Description
Fashionable shape with 00-level high-precision natural granite pedestal and pillars;
Z-axis auto-focusing function, assist the operator in finding the best focus plane;
8-division LED surface ring illuminator and LED parallel contour illuminator Controlled by Software;
6.5:1 0.7~4.5X click zoom lens;
OP-TEK software supports multiple languages, such as, Simplified Chinese, Traditional Chinese, English, Korea, German, etc;
Optional obviously assistant laser position system,assist the operator to find the position of the measurement unit;
UK MCP-K series touch probe and OP-TEK 3D function module for 2D Non-contact and 3D contact measurement;
0.5X and 2X Auxiliary objective are optional;
| Mode | VML-7070CNC | VML-1080CNC | VML-1210CNC | VML-1512CNC | VML-2216CNC |
| Order# | 526-201 | 526-211 | 526-221 | 526-231 | 526-241 |
| Metal stage size | 890x890mm | 1150x950mm | 1349x1149mm | 1790x1390mm | 2390x1790mm |
| Glass stage size | 809x809mm | 1100x910mm | 1309x1109mm | 1709x1209mm | 2309x1609mm |
| X/Y-axis Travel | 700x700mm | 1000x800mm | 1200x1000mm | 1600x1200mm | 2200x1600mm |
| Z-axis Travel | 200mm | 200mm | 200mm | 200mm | 200mm |
| Linear Scale | X/Y/Z 3-axis UK linear scale, Resolution:0.0005mm |
| Accuracy | X/Y-axis: ≤3+L/200(um) ; Z-axis : ≤4+L/200(um) |
| Video device | 1 /2" color CCD camera, 6.5:1 0.7x~4.5x Motorized zoom lens |
| Measuring software | QM4.0 | QM4.0 | QM4.0 | QM4.0 | QM4.0 |
| Dimension(mm) | 1400x1618x1700 | 2000x1500x1700 | 2300x1700x1700 | 2700x1900x1700 | 3300x2300x1700 |
| Net weight | 2000Kg | 2500Kg | 3000Kg | 4000Kg | 4500kg |
