2 Phase NEMA24 Closed Loop Stepper Motor System
Price: |
US $ 77-150/Piece |
Trade Terms: |
FOB,CIF,DAT |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal |
Product Specifications
Prod Model: |
nema 24 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Current: |
8.0A Peak |
Volt: |
20-50V |
Input Voltage: |
36 |
Pulse Input Frequency: |
200 |
Task: |
Adjust |
Structure: |
Closed-Loop |
Mathematical Model: |
Non-Linear |
Signal: |
Continuous |
Function: |
Automatic Control |
Certification: |
CE |
Condition: |
New |
Customized: |
Customized |
Material: |
Stainless Steel |
Product Description

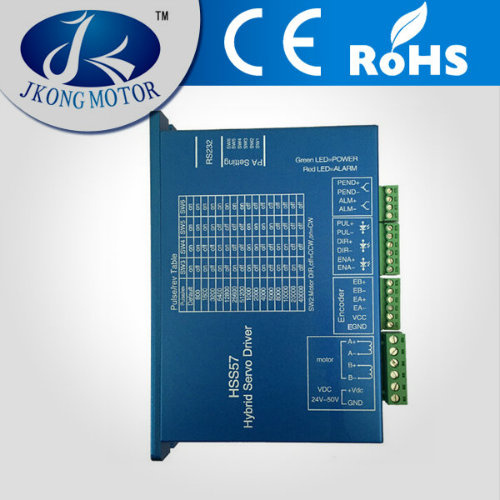

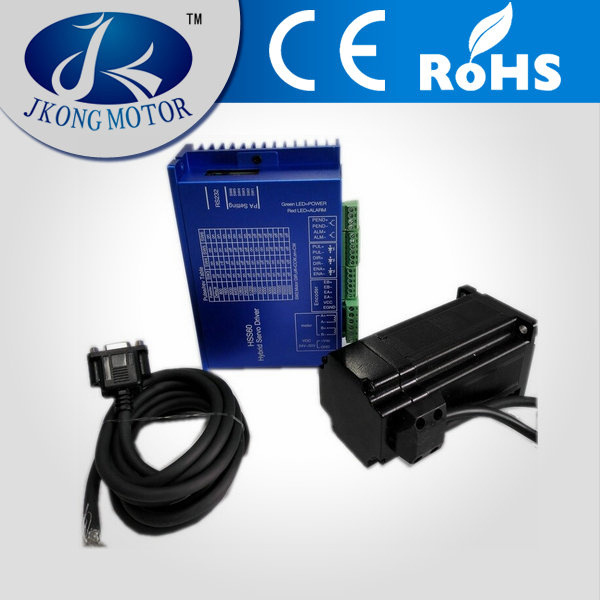

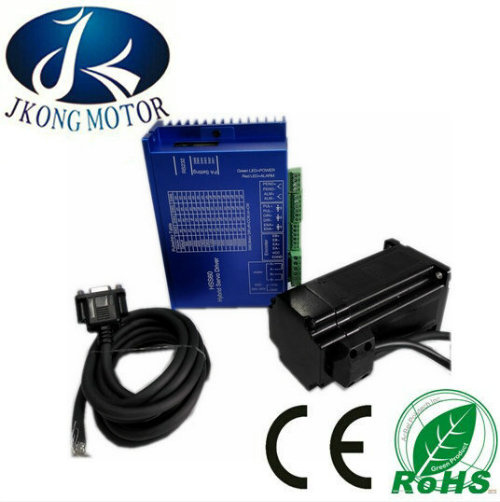

2 phase nema24 closed loop stepper motor system The Hybrid Servo Drive offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 3phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.The Hybrid Servo Drive offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. NEMA 23 Hybrid Servo kit (closed-loop stepper system):one Hybrid Servo Driver HBS57 one NEMA23 JK57-2N-1000 Hybrid Servo Motor with one Encoder 1000 line, one 3 meter cableA: HBS57, 3-phase Hybrid Servo Drive for NEMA23 Hybrid Servo MotorFeatures· Closed-loop, eliminates loss of synchronization · Broader operating range - higher torque and higher speed · Reduced motor heating and more efficient · Smooth motion and super-low motor noise · Do not need a high torque margin · No Tuning and always stable · Fast response, no delay and almost no settle time · High torque at starting and low speed, high stiffness at standstill · Lower cost 20-50V, 8.0A Peak, No Tuning, Nulls loss of SynchronizationParameters | HBS57 |
Min | Typical | Max | Unit |
Output current | 0 | - | 8.0 (Peak) | A |
Input voltage | 20 | 36 | 50 | VDC |
Logic signal current | 7 | 10 | 16 | mA |
Pulse input frequency | 0 | - | 200 | kHz |
Isolation resistance | 500 |
|
| MΩ |
Encoder Feedback Connector - DSub15 Female |
Pin | Name | I/O | Description |
1 | EA+ | I | Encoder channel A+ input |
2 | EB+ | I | Encoder channel B+ input |
3 | EGD | GND | Signal ground |
4 | HW | I | Reserved |
5 | HU | I | Reserved |
6 | FG | GND | Ground terminal for shielded |
7 | EZ+ | I | Reserved |
8 | EZ- | I | Reserved |
9 | HV | I | Reserved |
10 | NC | - | Not Connected |
11 | EA- | I | Encoder channel A- input |
12 | EB- | I | Encoder channel B- input |
13 | VCC | O | +5V @ 100 mA max. |
14 | NC | - | Not Connected |
15 | NC | - | Not Connected |
WHY YOU CHOOSE US: We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service. Our products all with CE and ROHS. Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price. High quality . Competitive price ,
Good Packing ,
Fast Delivery .
Knight serviceAdvanced technology Believe that we will do our best!
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 1, 500 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor.
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
