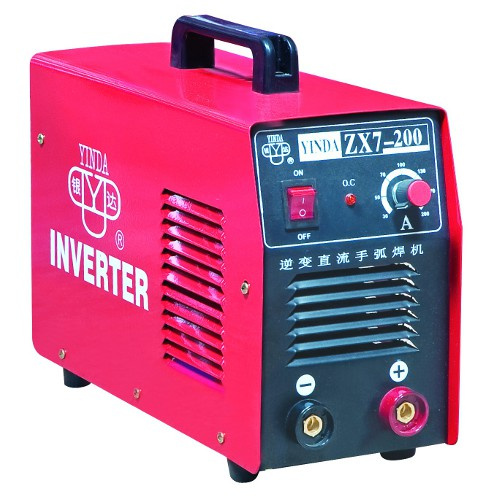

Inverter Based Stick Welder (MMA-200) (inverter welding machine, welding machine, arc welding machine, Dc welder, Inverter Welder)
allows welding stainless steel, alloy steel and carbon steel and other nonferrous metals.
Features:1. High quality and stable performance
2. Automatic voltage balance compensation if voltage waving
3. High Endurance of welding load guarantees continuous working
4. With function of overload protection
5. Stable welding arc, good welding seam, deep melting.
6. Little flash
7. Thrust compensation
Welding effect
Inverter Welding, Inverter Welder, MMA, TIG welder, Stick Welder, Welding Machine
|
PARAMETERS |
MMA-160 |
MMA-180 |
MMA-200 |
MMA-250 |
MMA-315 |
MMA-400 |
MMA-500 |
|
POWER VOLTAGE (V) |
SINGLE-PHASE AC 220V± 15% |
SINGLE-PHASE AC 220V± 15% |
THREE-PHASE AC 220V± 15% |
THREE-PHASE AC 380V± 15% |
THREE-PHASE AC 380V± 15% |
THREE-PHASE AC 380V± 15% |
THREE-PHASE AC 380V± 15% |
|
FREQUENCY (HZ) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
|
RATED INPUT CURRENT (A) |
24.6 |
29 |
33 |
15 |
18.3 |
26 |
37.5 |
|
NO-LOAD VOLTAGE (A) |
55 |
55 |
56 |
68 |
70 |
73 |
58 |
|
OUTPUT CURRENT (A) |
20-160 |
20-180 |
20-200 |
20-250 |
40-315 |
40-400 |
40-500 |
|
RATED OUTPUT VOLTAGE (V) |
26.4 |
27.2 |
28 |
30 |
32.6 |
36 |
40 |
|
FORCE RANGE |
* |
* |
* |
0-100 |
0-100 |
0-100 |
0-100 |
|
DUTY CYCLE (%) |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
NO-LOAD LOSS (W) |
40 |
40 |
40 |
80 |
80 |
80 |
80 |
|
EFFICIENCY (%) |
85 |
85 |
85 |
85 |
85 |
85 |
85 |
|
POWER FACTOR |
0.93 |
0.93 |
0.93 |
0.93 |
0.93 |
0.93 |
0.93 |
|
INSULATION GRADE |
F |
F |
F |
F |
F |
F |
F |
|
HOUSING PROTECTION GRADE |
IP21 |
IP21 |
IP21 |
IP21 |
IP21 |
IP21 |
IP21 |
|
WEIGHT (KG) |
7.6 |
7.6 |
8 |
18 |
27 |
28 |
36 |
|
DIMENSIONS (MM) |
350× 150× 300 |
350× 150× 300 |
350× 150× 300 |
480× 210× 360 |
565× 306× 520 |
565× 306× 520 |
565× 336× 520 |
