Product Specifications
Prod Model: |
HY-200 |
Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Western Europe |
Name: |
200-Standard Test Sieve Shaker for Particle Size a |
Diameter: |
200mm |
Deck/Layer: |
up to 9 Layers/Decks |
Material: |
Stainless Steel 304 |
Power: |
0.12 Kw |
Screen Mesh Size: |
5-500 Mesh |
Voltage: |
220V, 380V, 415V or as Your Request |
Packing Volume: |
0.18 Cbm |
Function: |
Particle Size Analysis |
Certification: |
BV, CE & ISO9001:2008 |
Product Description
1. Introduction

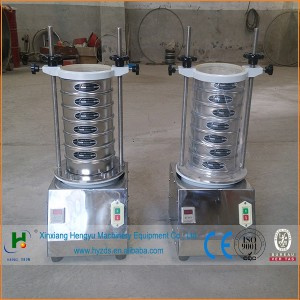

Hengyu test sieve shaker with frames made from stainless steel are suitable both for hand sieving as for dry and wet sieving with all our test sieve shakers. Test Sieve is also called Standard Sieve, Separating Sieve, Concrete Sieve, Carpolite Sieve, Grain Sieve or Grading Sieve.
2. Features: Acid resistance, alkali resistance, erosion resistance, abrasion resistance and easy operation.
3. Functions: Determines the particle size distribution, whatever particles or powder
4. Advantages at a glance
A. This type of test sieve is primarily used to determine particle size range for dry materials, whatever particles or powder.
B. Sieve sizes range mfrom 4 mesh(4750micro opening) to 500mesh(25 micro opening).
C. Typically requires 50-150g of sample material.
5. Technical Parameter
No. | Item | Unit | Data |
1 | Diameter | mm | 200 |
2 | Layers | layer | 8 |
3 | Vibration frequency | n/min | 1400 |
4 | Vibration amplitude | mm | 1-4 |
5 | Vibration force | KN | 1-4 |
6 | Underpan level | mm | < =0.6 |
7 | Power | kw | 0.12 |
8 | Overall dimension | mm | 370x350x650 |
9 | Time | min | 1-15 |
Xinxiang Hengyu Machinery Equipment Co., Ltd is specialized in manufacturing a wide range of screening and conveying system for solids, powders and liquids in various industries. The strict quality control system is in order to meet the quality standard, also comply with the international safety and health regulations. Now our machines have been exported to more than 20 countries and regions. Future we will try our best to get more customers' satisfaction.
