Product Specifications
| Prod Model: |
NBDJS221 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
200mm |
| Shape: |
Round |
| Color: |
Red |
| Product Name: |

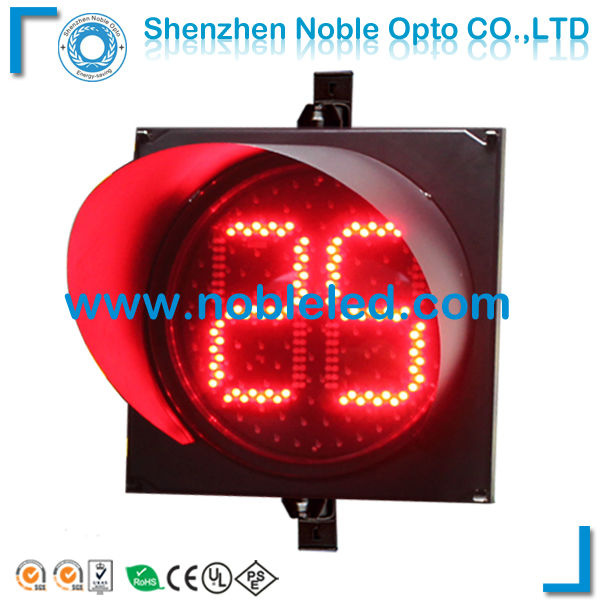

200mm Two Digits LED Countdown Timer |
| Ceitification: |
CE&RoHS |
| Lifespan: |
100.000hours |
| IP Rate: |
IP65 |
| Warranty: |
2 Years |
| Work Voltage: |
85~265VAC |
| Working Temperature: |
-20~75 |
| Type: |
Vehicle Traffic Light |
| Application: |
Road |
Product Description
Item Number: NBDJS221
Specification:
Shape: 200mm
High brightness LEDs with integrated optics
Moisture and dust tight seal(IP65)
Total Harmonic Distortion<20%(with PFC)
OperatingTemperature Range(optional): -30° C to 60° C
Angle: Avg. ≥ 30° Down ≥ 30°
Operating voltage Range: 110/220VAC
Insulation Resistance: ≥ 2M
Life: 100, 000H
Housing material: PC(PMMA)
Benefits:
1. When Green Vehicle Signal is on, the Green Digits will be shown with count down digits, to show the number of seconds left before the Green Light is changed to be Yellow.
2. When Yellow Vehicle Signal is on, the Red and Green Digits will be shown with count down digits, to show the number of seconds left before the yellow Light is changed to be Red.
3. When Red Vehicle Signal is on, the Red Digits will be shown with count down digits, to show the number of seconds the car driver needs to wait before the Red Light is changed into Green.
4. The maximum number of two digits is 99 seconds. If the countdown time is set exceeding 99 seconds, the signal will not show the digit until it counts 99 seconds.
|
Gather to packing |
|
Modul |
housing materials |
quality |
G.W(Kgs) |
N.W(kgs) |
|
NBDJS221 |
pc |
2pcs |
5.7 |
4. |
