Price: | US $ 157-175/Piece |
---|---|
Trade Terms: | FOB,EXW |
Min Order: | 10/Piece |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | SV-LMD200W |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lumen Maintenance: | >50, 000hours |
Cct: | 3000k-6400k± 300k |
Total Harmonic Distortion(Thd): | ≤ 20 |
LED Qty: | 1PCS. Ecse50 COB |
LED Current: | 4167mA |
Input Current: | ≤ 2.1A @110V / ≤0.927A @220V |
Power Factor: | 0.95 |
Lamp Body Material: | Aluminum Alloy |
IP Rating: | IP65 |
Certification: | UL |
Color Temperature: | 3000~6700k |
Usage: | Warehouse, Logistics Centre, Factory Building |
Beam Angle: | 60°90°120°135° |

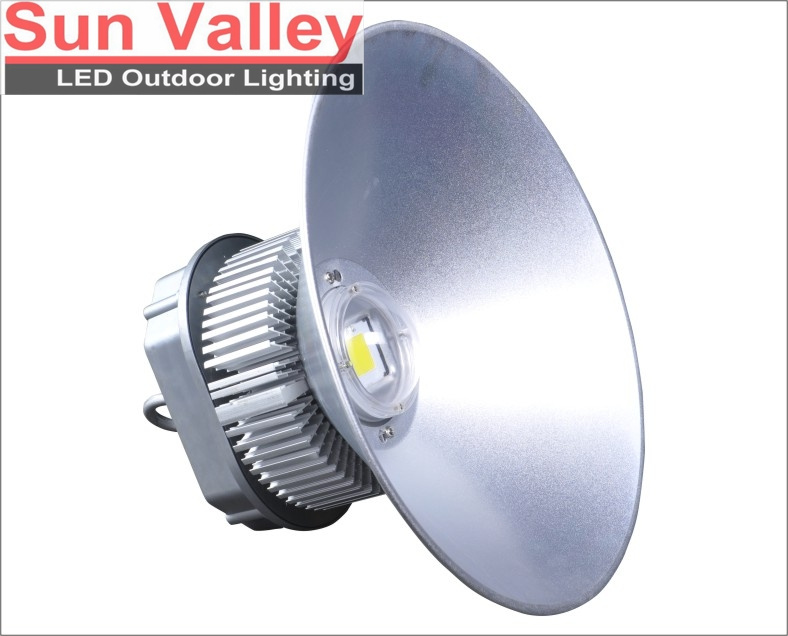

Model SV-LMD200W
Electrical characteristics
LED Qty 1PCS. ECSE50 COB
LED Current 4167mA
Input Voltage&Hz AC90-277V, 50-60Hz
Input Current ≤ 2.1A @110V / 0.927A @220V
Power Factor ≥ 0.95
Photometrics & Chromaticity
Luminous Flux 25560.0lm
CCT 3000K-6400K± 200K
CRI ≥ 70
Light distribution structure 60° 90° 120° 135°
Field Angle H122.1 V141.0
Power 200W± 10%
Lumen Maintenance >50, 000hours
Total harmonic distortion(THD) ≤ 20
Environmental characteristics
Protection grade IP65
Working temperature -40° C to +55° C
Working humidity 10-95%RH
Storage temperature -40° C to +70° C
Storage Humidity 10-95%RH
Lamp specifications
Overall Dimensions 425mm X265mm X 495mm
Net weight 5.1 kg
installation mode ceiling mounted
Installation accessories 10KV lightning protection devices (optional)
OPTIONS:
led high bay | 100W | 150W | 200W | 250W |
Luminous Flux | >12000lm (Typ.) | >18000lm (Typ.) | >18000lm (Typ.) | >35000lm (Typ.) |
CCT | 5000/6400K±300K | 5000K±300K/ | 5000K±300K/ | 5000K±300K/ |
Power Factor | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) |
Input Voltage&Hz | AC90-277V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
Working temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
High bay light is for large-scale factory building, warehouse etc other place of special lighting. According to the installation height of lamps to choose power, High light efficiency to improve the safety of the production site;
The led high bay light is equipped with four light emitting angle, meet different places lighting needs, can be the perfect competence in any lighting environment, save energy to enhance the led high bay light use value;
Suitable for application in: large-scale factory building, warehouse, logistics center;
Product Characteristics:
1. Aluminum alloy lamp body, firm structure, corrosion protection of surface, suitable for different climate and environment, safety and durability;
2. Adopts high efficiency COB light source, low glare, uniform light emission, light efficiency is greater than 120lm/w;
3. Allocation of high efficiency power supply, constant power output; not influenced by the voltage fluctuation, high effective power of high bay light;
4. Adopts natural air cooling heat dissipation design, fast heat conduction, low temperature rise, life span of lamp up to 50000 hours;
5. Dustproof PC mask, high transmittance, uniform light output, weather-resistance, resistance ageing, Low light degradation;
6. High bay light has four different shades, 60°90°120°135°are optional, optional independent lighting protection device;
7. IP65 Protection grade, ensure the products dustproof and waterproof performance stability, prolong the service life of high bay light;
8. Through the security certification and environmental certification standards, 5 years of product quality assurance;

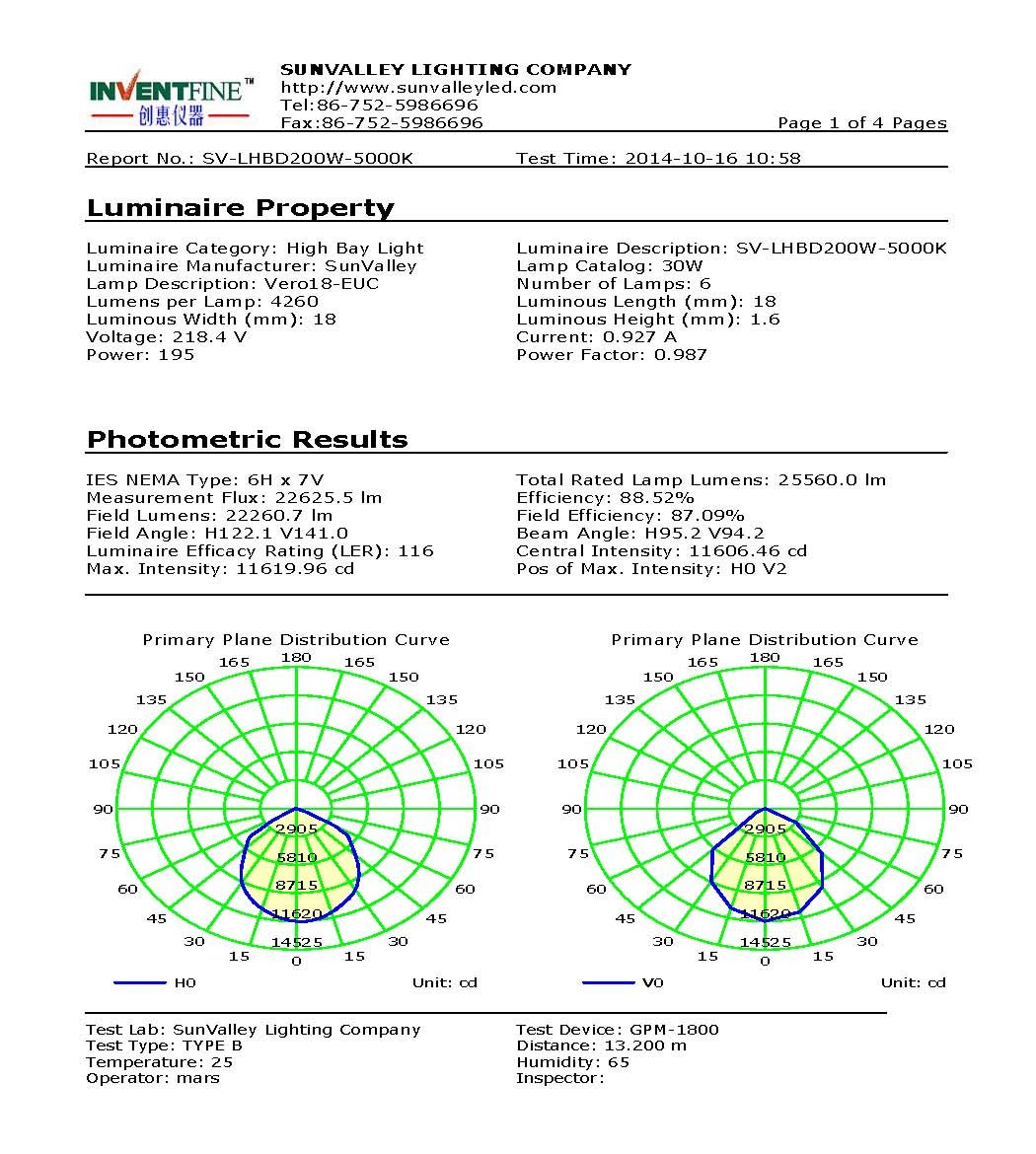

Test Report:

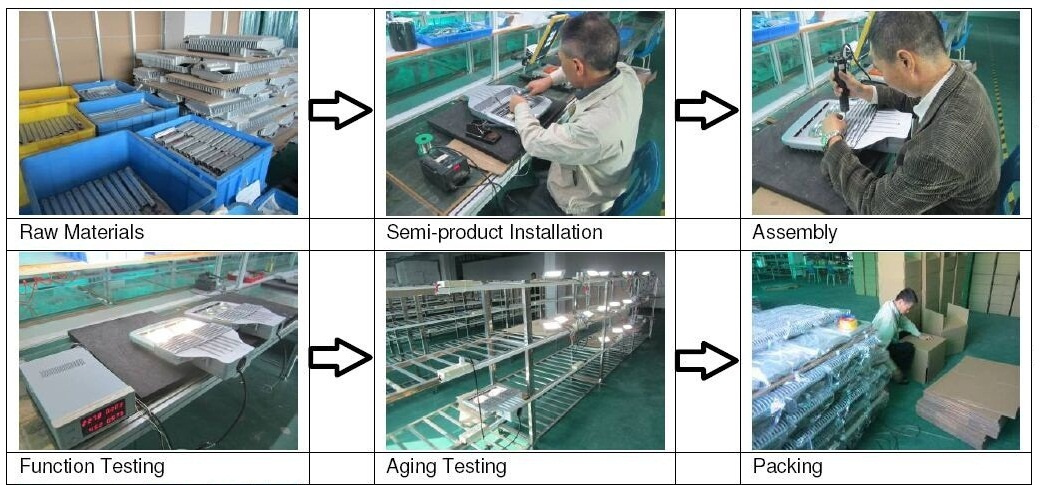

Work Flow:
