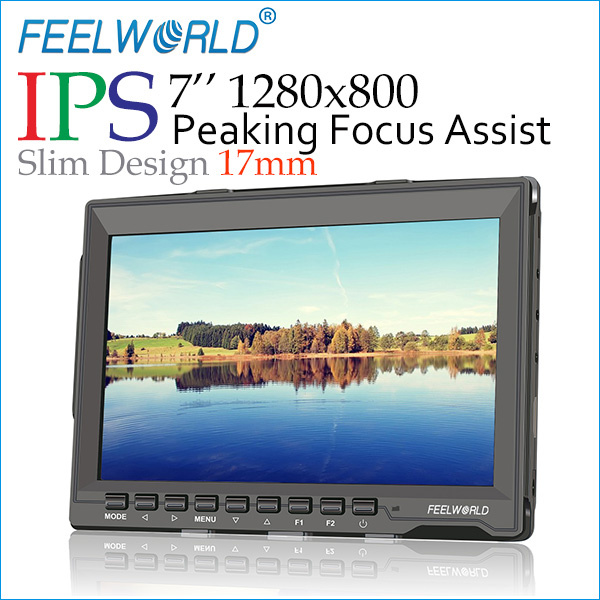

2015 hot sale 7-inch lcd video monitor 17mm thickness IPS 1280x800 resolution Peaking Focus Assist camera stabile
Now it's time to welcome our new product!
Specific Slim Design 17mm wide view angle IPS 1280x800 HD Monitor for Steadycam,DSLR Rig,Camcorder Kit,Handheld Stabilizer,Video Camera Crane ,seizing much more clear world. The high resolution LCD,1:1 pixel mapping and 800:1 contrast ratio provides users with the most accurate picture of FEELWORLD monitors.Professional Peaking Focus Assist
Application for full HD Vedio Camera in taking photos and Making Movies.
Advanced Feature:
1.Wide view angle IPS panel,HD1280x800 resolution
2.The enhanced 400cd/m2 backlight and 800:1 color contrast ratio
3.Slim design 17mm Portable Light compatible for Steadycam,DSLR Rig,Camcorder Kit,Handheld Stabilizer,Video Camera Crane
4.Inputs:Video,Audio,HDMI Outputs:Wire remote OSD controller,Built-in Speaker,3.5mm Audio
5.HDMI Mode: 480i / 576i / 480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps)
6.Peaking Focus Assist
7.Camera 5D II Mode
8.Check Field:(Red,Green,Blue,Mono)
9.Image Flip(U/D,L/R)
10.Centre Marker
11.ScreenMarker(80%,85%,90%,93%,96%,2.35:1)
12.4:3&16:9 image adjustable
13.Pixel-to-Pixel
Description | 7'' Slim Design Ultra HD IPS 1280x800 Field Monitor HDMI input | *Peaking Focus Assist |
Model | FW759 | *Camera 5D II Mode |
Resolution | 1280x800 | *Check Field:(Red,Green,Blue,Mono) |
Dot pitch | 0.11775(H) x 0.11775(V) | *Image Flip(U/D,L/R) |
Aspect ratio | 16:10 | *ScreenMarker (80%,85%,90%,93%,96%,2.35:1) |
Brightness | 400cd/m² | *Centre Marker |
Contrast | 800:01:00 | *4:3&16:9 image adjustable |
Backlight | LED | *Pixel-to-Pixel |
Response time | 25ms | *Image Freeze |
Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
|
Inputs | Video,Audio,HDMI |
|
Outputs | Wire remote OSD controller,Built-in Speaker,3.5mm Audio |
|
HDMI Support Mode | 480i / 576i / 480p/576p |
|
1080i (60/59.94/50) |
|
720p (60/59.94/50/30/29/25/24/23.98) |
|
1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps) |
|
Power Consumption | 5w |
|
Input Voltage | 7.4V~35V |
|
working Temperature | –20~50ºC |
|
storage Temperature | –30~60ºC |
|
Install Way | 1/4"-20 Thread Socket(1 bottom side) |
|
Unit Size | 176Lx130Wx17H(mm) |
|
Unit Weight | 0.4kg |
|
Standard Accessory | Optional Accessory | Packing Details |
Sunshade | Wire remote controller | Box size |
|
F970 Plate | Power Adapter | Per box G.W. |
|
Hot Shoe Mount | LP-E6 plate | Per Carton |
|
HDMI Cable | D28S/D54 Plate | Carton Size |
|
HDMI plug lock | V-Mount Plate | N.W. |
|
Manual | Anton Plate | G.W. |
|
Founded in 2006, Shenzhen Feelworld Technology Co., Ltd is a professional high-tech enterprise engaged in research and development, design, production and marketing of mini LCD Monitors, touch screen monitor, open frame monitors.
Attributing to our strict quality control in component selection and performance inspection, we have gained an excellent reputation from our worldwide customers. Certified by CE, FCC, CCC, and E-MARK standards, the performance of our products meets or exceeds the advanced world standard.
Driven by our powerful Research & Development staff, we have the ability to design and machine LCD video monitors as per your various requirements. It is free to adopt talents establishing a high-qualified R&D group with abundant experience to back up strongly for ensuring product performance and quality.
Now our products are widely used in Europe and North America, and we have cultivated very successful communications with our valued customers. With the help of their great ideas and feedback regarding marketing, design, and new product construction, we are consistently growing as the world leader in LCD display technology.
