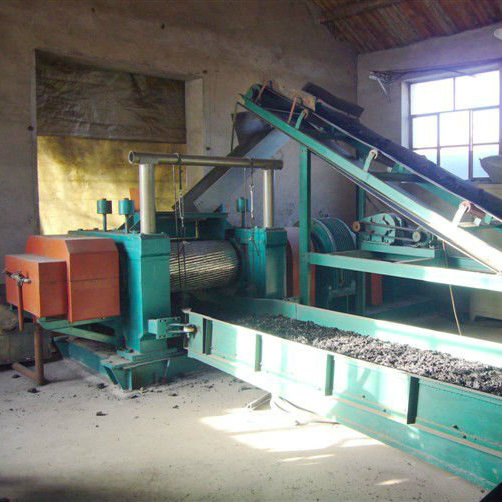

Waste Tyre Shredder Machine
1. Version: XKP-450, 560, 400.
2. Name: Waste Tyre Shredder Machine, Rubber cracker, Rubber crusher, rubber pulverize
3. Application: The Waste Tyre Shredder Machine/rubber cracker/tire recycling machine is used to break, plasricize, mix rubber materials.
4. Features:
1) The rollers are grooved and chilled cast iron alloy.
2) The reducer is hard toothed surface gear.
3) Emergency stop device is equipped.
4) Self-aligning ball bearing system.
5) CE, SGS, ISO Certification.
6) Waste Tyre Shredder Machine can be equipped with different configuration according to your requirement.
5. Technical parameter for Waste Tyre Shredder Machine:
| Parameter \ Model | XKP-560 | XKP-450 |
| Front roller diameter (MM) | 560 | 450 |
| Back roller diameter (MM) | 510 | 450 |
| Roller length (MM) | 800 | 650 |
| Front roller surface speed (m/min) | 25.56 | 23.2 |
| Friction ratio | 1:1.3 | 1:1.38 |
| Max. nip | 15 | 8 |
| Feeding capacity (KG/H) | 1500 | 600-800 |
| Motor power (KW) | 75 | 55 |
| Measurement (MM) | 5064x2284x1978 | 4770x1846x1835 |
| Weight (KG) | 19000 | 12000 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
