Product Specifications
| Prod Model: |
JM-JU2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Name: |
2015 New Designed Complete Juice Production Line |
| Design And Manufactur: |
Shanghai Jimei Food Machinery Co.,Ltd |
| Customised: |
Accepted |
| Processing: |
From a to Z Turn-Key Project |
| Raw Material: |
All Kinds of Fresh Fruits |
| Producing: |
Concentrate Juice or Flavor Juice Beverage |
| Package: |
Aseptic Carton,Roof Carton,Bottle,Can,etc |
| Productivity: |
1000L to 30000L Per Hour |
| Advantage: |
High Quality and Competitive Price |
| Warranty: |
Lifelong Time |
Product Description

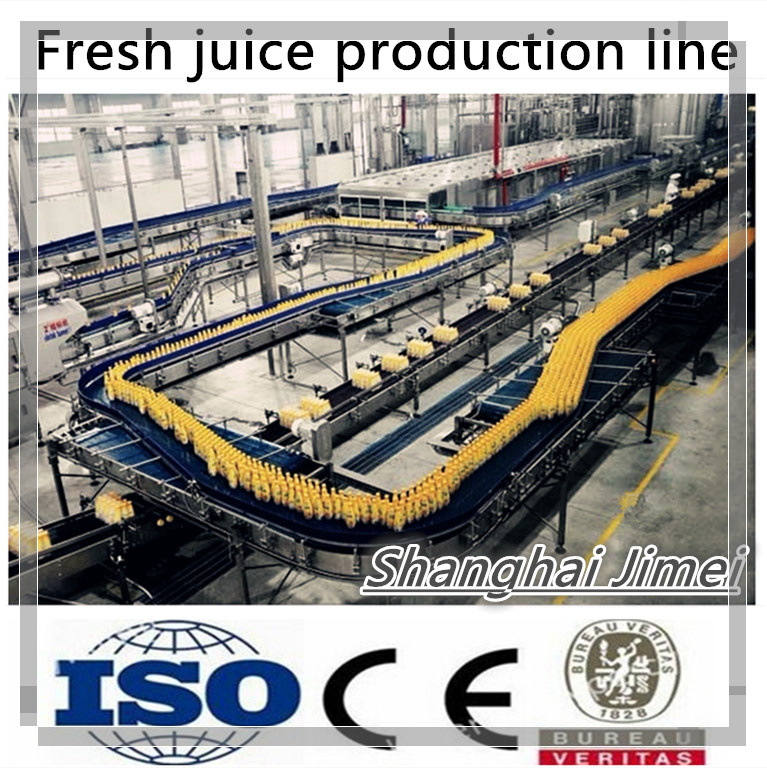

2015 New Designed Complete Juice Production Line
Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,
New Product ,
Customer's Design and Logo are Welcome ,
Competitive Prices ,
Earth-friendly Products ,
In a Variety of Design ,
Small Order Acceptable ,
ODM Accepted ,
OEM Accepted
Tea, juice,milk and all the hot filling drink machinery
Pet bottle and glass bottle
Screw capping and press capping cap
Capacity from 1000-25000 bottles per hour
Lubrication system
SUS 304 or 316 materials
PLC controller
Suitable for the different types bottle 200ml-2000ml
Feeding conveyor:
1 easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Air conveyor for the plastic bottle, screw conveyor for the glass bottle
Washing part
1. Inverter clamp to pick up the bottles by catch the bottle neck
2. SUS304 stainless steel
3. spraying nozzle could reach all the parts of the bottle ,save the washing water
The bottle will be feed into the machine through the conveyor to the first part is rinsing part, there are many support seats and the bottle grippers ,The grippers take the bottles from the inlet star wheel while they are still driven by the star wheel, thus guaranteeing a safe grip.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling parts
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3.Filling precision ≤±2mm
4. Vacuum filling method
5. filling temperature:85-95
6. No dropping
For the juice, milk and tea, we should adopt the hot filling valves, to protect the quality of the beverage,This series machine adopts block bottle-neck hanging work state design and filling valve rise-drop design. It satisfies 95 degree hereinafter hot filling technology demand.
The star wheels drive the bottles always "by the body" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
Filling valve should use the stainless steel as the material .
Capping parts
1.PCO ,plastic cap, metal cap, aluminum cap
2.no bottle no capping
3.two sensor to check, PLC control
4.no full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding
Lamp checker
Clearly to see the filled bottle
Vacuum tank and pump
Because the liquid contains the foam , so not only the valve has the degas feature, we also need the fit the vacuum pump and tank, to suck all the foam from the liquid , and send to the vacuum tank through the vacuum pump
Electrical apparatus
PLC/ transducer/ touch screen: siemens
Contactor/ air switch/ stabilized voltage supply: Schneider
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack
Jimei company was established in 1989, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have passed ISO9001, National GMP Technology Standard Evaluation, inspections by National Pharmaceutical Equipment Inspection Center, and all products are designed and manufactured strictly according to standards such as ISO, SMS, IDF, DIN, QB/T2003, 2004, 3A as well as our internal standards.
We are a company integrating scientific research, manufacturing and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported through our sister compang in group (Shanghai Runrong International Trade Co., Ltd)to Asia, Europe, America, Africa, over 50 countries, and gained favorable feedback from users. Major projects include milk preliminary handling, UHT pipe, plate bacteria killing machines, bacteria-free liquid soft packing machine, gable-top paper box filling machine, that combine to form diary production line, beverage production line, biological engineering production line. We have provided products to the following famous companies: Taizinai, Wahaha, Sanlu, Bright, Danone, Mengliu, Coca Cola, PepsiCola, Yingxiong etc.
