Product Specifications
Prod Model: |
ZYS84B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Crusher: |
Stone Crusher |
Mining Equipment: |
Cone Crusher |
Type: |
Cone Crusher |
Application: |
Stone Industry |
Drive: |
Electric |
Crushing Style: |
Grinding & Impact |
Crushing Degree: |
Intermediate Crusher |
Finished Surface: |
Outer Surface Process |
Color: |
According to Customers ' Needs |
Product Description
Machinery Factory of Gongyi City:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you

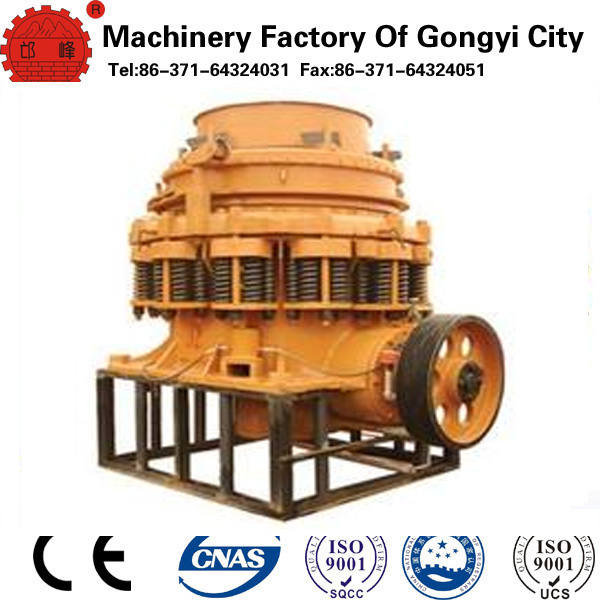

cone crusher
cone crusher offer several outstanding features such as excellent tramp release system, unique hydraulic lifting system, high crusher throw and reasonable cavity design, all of these features ensure the cone crusher can offer the perfect performance in secondary, tertiary and quaternary applications.
The innovations like the stable lubrication, excellent sealing feature, great abrasive material applied in key components and rugged construction effectively reduce the wear rate , extend the replacement period of the spare parts, evidently reduce the production cost in per ton hour material processed. All of these can help you to achieve the most profitability.
Technicla datas of Cone Crusher:
1. Standard Type
Model | Cone big end dia(mm) | Input dimension (mm) | Size of discharge open (mm) | Capacity (T/h) | Main motor | Overall dimension (m) |
Power (Kw) | Rotating speed (r/min) | Voltage (V) | Length (m) | Width (m) | Height (m) |
2ft | fine | 600mm | 72 | 6-38 | 16-54 | 22 | 985 | 380 | 2.195 | 1.158 | 1.651 |
coarse | 95 | 10-38 | 18-68 |
Extra coarse | 109 | 13-38 | 23-72 |
3ft | fine | 900mm | 102 | 9-22 | 45-91 | 75 | 985 | 380 | 2.656 | 1.746 | 2.241 |
coarse | 175 | 13-38 | 59-163 |
Extra coarse | 178 | 25-38 | 118-163 |
4ft | fine | 1200mm | 131 | 9-31 | 63-188 | 110 | 985 | 380 | 2.656 | 1.974 | 3.112 |
medium | 156 | 13-38 | 100-199 |
coarse | 191 | 19-51 | 141-308 |
Extra | 250 | 25-51 | 190-317 |
4 1/4ft | fine | 1275mm | 137 | 13-31 | 109-181 | 155 | 985 | 380 | 4.809 | 2.354 | 3.156 |
medium | 210 | 16-38 | 132-253 |
coarse | 241 | 19-51 | 172-349 |
Extra | 259 | 25-51 | 236-358 |
5 1/2ft | fine | 1676mm | 209 | 16-38 | 181-327 | 220 | 985 | 380 | 3.911 | 2.87 | 3.771 |
medium | 241 | 22-51 | 258-417 |
coarse | 269 | 25-64 | 299-635 |
Extra | 368 | 38-64 | 431-630 |
7ft | fine | 2134mm | 278 | 19-38 | 381-726 | 315 | 985 | 380 | 4.613 | 3.251 | 4.732 |
medium | 334 | 25-51 | 608-998 |
coarse | 369 | 31-64 | 789-1260 |
Extra | 460 | 36-64 | 880-1351 |
**Remarks: 1. Length of crusher isnt including motor length. 2. Weight of crusher isnt including motor weight. |
2. Short Head Type
Model | Cone big end dia(mm) | Input dimension (mm) | Size of discharge open (mm) | Capacity (T/h) | Main motor | Overall dimension (m) |
Power (Kw) | Rotating speed | Voltage (V) | Length (m) | Width (m) | Height (m) |
2ft | fine | 610mm | 35 | 3-13 | 9-36 | 22 | 985 | 380 | 2.195 | 1.158 | 1.651 |
coarse | 51 | 5-16 | 16-50 |
3ft | fine | 914mm | 41 | 3-13 | 27-90 | 75 | 985 | 380 | 2.656 | 1.746 | 2.241 |
medium | 60 | 3-16 | 27-100 |
coarse | 76 | 6-19 | 60-126 |
4ft | fine | 1219mm | 57 | 5-16 | 50-132 | 110 | 985 | 380 | 2.56 | 1.942 | 2.928 |
medium | 73 | 10-16 | 90-145 |
coarse | 89 | 13-19 | 141-181 |
Extra | 117 | 13-25 | 145-218 |
4 1/4ft | fine | 1295mm | 64 | 3-16 | 36-163 | 155 | 985 | 380 | 2.958 | 2.254 | 3.156 |
medium | 89 | 6-16 | 82-163 |
coarse | 105 | 10-25 | 169-227 |
Extra | 133 | 19-25 | 209-236 |
5 1/2ft | fine | 1679mm | 70 | 5-13 | 90-209 | 240 | 985 | 380 | 3.917 | 2.87 | 3.771 |
medium | 89 | 6-13 | 136-281 |
coarse | 133 | 10-19 | 190-336 |
Extra | 133 | 13-19 | 253-336 |
7ft | fine | 2134mm | 105 | 5-16 | 190-408 | 400 | 985 | 380 | 4.13 | 3.251 | 4.454 |
medium | 133 | 10-19 | 354-508 |
coarse | 178 | 13-25 | 454-599 |
Extra | 203 | 16-25 | 508-653 |
Remarks: Same as ** |
cone crusher
Cone Crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. Compared with Jaw Crusher, Spring Cone Crusher is of stable structure, high efficiency, easy adjustment, and economical using etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the Cone Crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make sure reliable performance. This type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.
Gongyi City Machinery Factory (original Kangdian machinery factory, Gong County Machinery Factory) has large and medium-sized equipment 365 sets, 384 employees, consists of six department: Tachnical department, production department, sales department, domestic trade department, international trade department, service department. There are 240 high-intermediate grade technical personnel. It covers an area of 38, 600 square meters, building area is 18, 000 square meters, fixed assets is 28 million yuan. Gongyi City Machinery Factory is locaded in Kangdian town. One kilometer to south of Kang million eatate Scenic and Kangzhuang road. It is in the east of the provincial capital of Zhengzhou city, there is Hulaoguan Three Kingdoms Battlefield Site; West of Luoyang which is ancient capital of nine dynasties, there is longmen Grottoes which is one of China four famous cave; South of the songshan mountain, there are shaolin Temple and songyang Scademy; North of the Yellow River, there is Sihe yanliu scenic district; Lianhuo Expressway, the Longhai Railway zhengzhou-Xi′ An high-speed rail pass through from east to west, Yellow River bridge line pass through south to nouth. Location is good and transportation is convenient.
Since the factory is established in 1958, it first past the ISO9001 2000 international certification, and obtained import and export license eligibility. Now the leading product are beneficiation series, sandstone series, drying series, milling series eqipment. The products sell well in more than 20 provinces, municipalities and autonomous regions, famous in China, and exporten to many countries southeast Asia, Africa. Quality is enterprise′ S life, we will achieved recognition and satisfaction of the customer through excellent products and quality service. AN oeder is positive, one hopes is a responsibility. No matter it is in the before-sales, during sales or after -sales, we always offer the most attentive service to make you comfortable, let you succeed, also make you satisfied. Cooperating with Gongyi City Machinery Factory will make you no regrets!
Make friends all over the world, invite world content. Gongyi City Machinery Factory sincerely welcome friends from all walks of life to visit and guide, putting forward valuable advice, dicussing cooperation intention, joining hands to creating a better tomorrow.
