Product Specifications
| Prod Model: |
2PG450*500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Equipment: |
Roll Crusher |
| Type: |
Roller Crusher |
| Crushing Style: |
Grinding & Impact |
| Drive: |
Electric |
| Finished Surface: |
Outer Surface Process |
| Application: |
Stone Industry |
| Crushing Degree: |
Intermediate Crusher |
| Color: |
as Client Request |
Product Description
Machinery Factory of Gongyi City:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you
Product Description

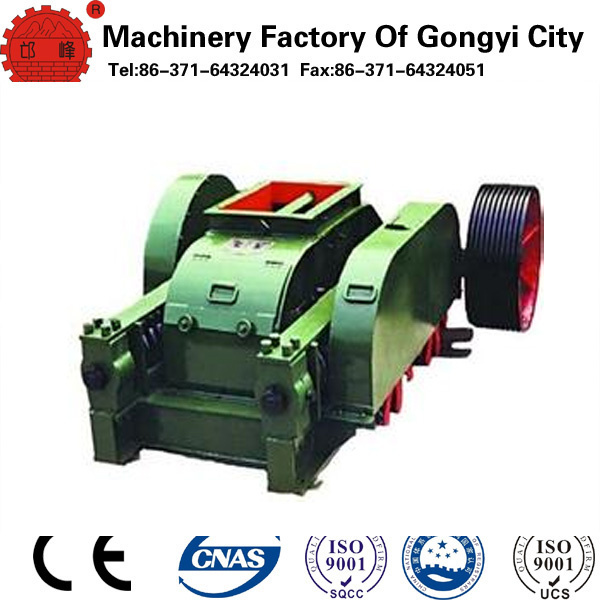

The double rollers crusher is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. Roll crusher can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.
Techinical Parameter
Model |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
Dimension (mm) |
2PG400×250 |
<35 |
≤2-8 |
2-10 |
2×5.5 |
1.3 |
2110×870×810 |
2PG610×400 |
<65 |
≤2-20 |
5-20 |
2×15 |
3.9 |
3510×1420×1030 |
2PG750×500 |
<75 |
≤2-25 |
10-40 |
2×18.5 |
9.5 |
4210×1630×1260 |
2PG800×600 |
<80 |
≤2-25 |
12-45 |
2×22 |
10.8 |
4505×1780×1320 |
2PG1000×700 |
<100 |
≤3-30 |
20-65 |
2×30 |
14.9 |
5310×2175×1595 |
2PG1200×800 |
<120 |
≤3-35 |
35-80 |
2×37 |
25.5 |
6290×2270×1870 |
2PG1500×800 |
<130 |
≤3-45 |
50-120 |
2×75 |
33.7 |
7460×2410×2290 |
2PG1600×1000 |
<150 |
≤3-50 |
60-140 |
2×90 |
41.2 |
8220×2680×2475 |
Advantages
1. With the advanced hydraulic control system, users can adjust the pressure according to the material hardness, so that can press and pulverize the materials absolutely.
2. With sensor, the roller crushers can load relief when overload, so that to protect the machine.
3. The advanced hard faced technology improves the roller covers' life.
4. Good performance, low cost in operation and easily maintenance.
Working principle
The roller crusher consists of roll wheel, roll bearing, pressing device, adjusting device and driving device etc.
Discharging size adjustment: between two roller equipped with cuneate or gasket adjusting device, top of the wedge device capped with adjustment bolts. When the adjustment bolts pull upward wedge which will bear against the fixed wheel to make it deviate from the movable roller wheel, then the gap between wheels become large, discharging size become bigger, otherwise the opposite, gasket device is through the quantity or thickness to adjust the materials size. When adding gaskets the gap between wheels become large, when reducing gaskets the gap between wheels become small, so the discharging size becomes small. Driving structure is two motors through triangle belt drive to grooved pulley which drag roller rotating according to relative direction. In crushing stage, material is broken by roll wheel; final product is discharged from chassis. For safety, transmission part should be installed safety guard according to actual situation.
Gongyi City Machinery Factory (original Kangdian machinery factory, Gong County Machinery Factory) has large and medium-sized equipment 365 sets, 384 employees, consists of six department: Tachnical department, production department, sales department, domestic trade department, international trade department, service department. There are 240 high-intermediate grade technical personnel. It covers an area of 38, 600 square meters, building area is 18, 000 square meters, fixed assets is 28 million yuan. Gongyi City Machinery Factory is locaded in Kangdian town. One kilometer to south of Kang million eatate Scenic and Kangzhuang road. It is in the east of the provincial capital of Zhengzhou city, there is Hulaoguan Three Kingdoms Battlefield Site; West of Luoyang which is ancient capital of nine dynasties, there is longmen Grottoes which is one of China four famous cave; South of the songshan mountain, there are shaolin Temple and songyang Scademy; North of the Yellow River, there is Sihe yanliu scenic district; Lianhuo Expressway, the Longhai Railway zhengzhou-Xi′ An high-speed rail pass through from east to west, Yellow River bridge line pass through south to nouth. Location is good and transportation is convenient.
Since the factory is established in 1958, it first past the ISO9001 2000 international certification, and obtained import and export license eligibility. Now the leading product are beneficiation series, sandstone series, drying series, milling series eqipment. The products sell well in more than 20 provinces, municipalities and autonomous regions, famous in China, and exporten to many countries southeast Asia, Africa. Quality is enterprise′ S life, we will achieved recognition and satisfaction of the customer through excellent products and quality service. AN oeder is positive, one hopes is a responsibility. No matter it is in the before-sales, during sales or after -sales, we always offer the most attentive service to make you comfortable, let you succeed, also make you satisfied. Cooperating with Gongyi City Machinery Factory will make you no regrets!
