Product Specifications
| Prod Model: |
PT 100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging Detail: |
Standard Export Carton |
| Brand Name: |
Sanda or OEM |
| Outline Dimension: |
80*160*135 |
| Power: |
< 10W |
| Certifuction: |
CE,RoHS,ISO9001 |
| Measure Humidity Range: |
10%-99%Rh |
| Usage: |
Air Conditioner |
| Certification: |
RoHS |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
| Display Type: |
LED |
| Material: |
Aluminium |
| Brand: |
Sanda |
Product Description
Product Name

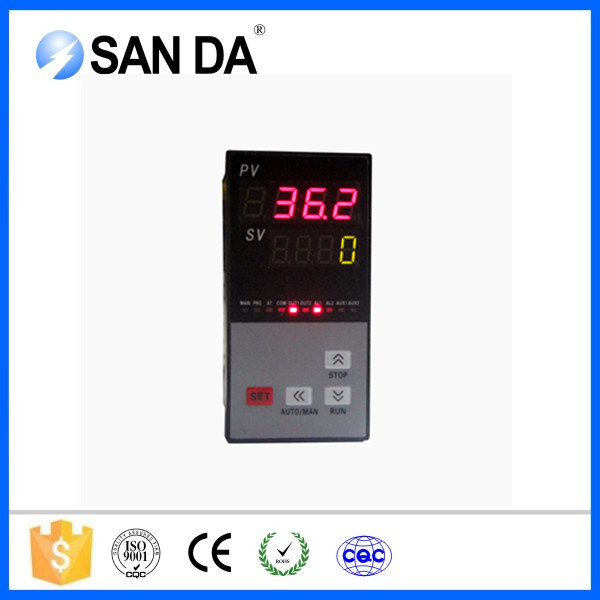

2015 Newest LED Digital Temperature Controller For Incubator
Product Description
Temperature Controller of WSK-H (TH) / G series along with one way condensation sensor and temperature sensor,can monitoring measure the changes of internal temperature and humidity all time in monitored environment. When the internal environment temperature is below preset temperature or condensation will generate, the controller automatically drives the heater elevated environment temperature to damage the small environment of condensation resulting.When generating condensation condition disappears and the ambient temperature reaches the preset temperature, the heater automatically disconnects, then the controller resumes monitoring state.
Mounting Dimensions & Wiring Diagram
How to install it safely and choose sizes accurately? More details for your reference below.
Type | Normal Model No. | Compulsory heating disconnection alarm Model No. |
| Two way temperature | SD-W300-2W | SD-W300-2W/B |
| Two way condensation | SD-W300-2N | SD-W300-2W/B |
| Two way temperature,Two way condensation | SD-W300-2W2N | SD-W300-2W2N/B |
| One way temperature, One way humidity | SD-W200-1W1S | SD-ZW8002 |
| Above Models for reference only, More products please consult customer service for details . |
Technical Parameters
Please note that the parameters provided below are for guidance only. OEM /ODM are acceptable.Welcome to share your opinion with us.
Product Name | temperature and humidity controller |
| Power supply | AC220V + 10%, 50Hz |
| Working conditions | -20 ~70°C, <95%RH |
| Measuring range | 0 ~ 99°C, 0 ~ 99%RH |
| Control precision | Temperature: + 1 °C Humidity: + 5%RH |
| Humidity | + 5%RH |
| Output interface | 2 ways load output 220V 3A (be permitted with heater or fan) without power supplying |
| Power | < 10W |
| Reliability | meeting IEC834-1 |
| Outline dimension | 80*160*135 (mm) |
| Installation dimension | 76*152(mm) |
Precautions
1)Wiring should be strictly in accordance with the wiring diagram on the back of the meter.
2)Do not use at the place where exist excessive dust and excess of harmful gases.
3)Long term storage without using,please give meter power once every three
months, each time more than four hours.
4)Long-term preservation should avoid direct sunlight, the degree at -10 °C ~ 70 °C is
suitable for storage.
5)If the meter has no display, first check the auxiliary power and voltage is in the specified range.
6)If the display is abnormal, check the input signal is normal and the signal terminals are tightened.
7)Unless the PT have enough power, or can not use the PT signal as an auxiliary power to ensure that the meter work normally.
8) In order to avoid failure,be sure the CT circuit current terminal screws are tightened,the inlet / outlet access are reliable.
FAQ
1. Do your company do the manufacturer or the trading coming?
We are manufacturers.
2. How to visit your company?
Our company is closed to Changsha, you can take high speed to LiLing station ,and call me we will driving to pick up you.
3. Does your company have ISO9001 QA system certification by 3rd party?
Yes, we have passed the ISO9000 CE certification.
4. Free sample is available or not?
Yes, But you need pay for the freight charge.
5. What about the min-Q'TY.?
For sample, min-Q'TY is 1PCS
6. What's the payment term?
T/T,PAYPAL ,L/C,Western union payment,MoneyGram , are available.
7. What's the delivery time?
It's based on your order quantity. Generally within 10-15 working days.
8. What kind of freight way?
Express: DHL, UPS, TNT, FedEx, EMS, Parcel Post
Air or Sea.
9. Is OEM available for your company?
Sure. We can produce based on your special requirements, also can you're your LOGO.
10. How long the warranty of your products?
Sanda promises all products are free maintenance (no matter where)
Professional manufacturer and supplier of digital meter, temperature & humidity controller, switch cabinet control device, Main products include, current meter, voltage meter, frequency meter, energy meter, multifunction meter, temperature and humidity controller, switch status indicator panel, switch cabinet control device, etc.
