Product Specifications
Prod Model: |
H1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Image Sensor: |
1/4" Ov9712 CMOS |
Shutter: |
1/50(1/60) Seconds to 1/10,000 Seconds |
IR Cut: |
Support |
Weight: |
195g |
Technology: |
Wireless |
Style: |
Mini Camera |
Type: |
IP Camera |
Sensor: |
CMOS |
HDMI Format: |
720P |
Kind: |
Autofocus Lens |
Certification: |
SGS |
Feature: |
Auto BLC |
Effective Distance: |
10-30m |
Sensor Size: |
1/4 inch |
Remote Control: |
With Remote Control |
Horizontal Resolution: |
N/O |
Product Description
Features:
1. WPS(Wi-Fi Protected Setup) wireless connection, one-key auto configuration
2. Exquisite styling perfectly match with the home environment
3. HD 720P resolution
4. Support IR CUT
5. Support smart phone remote monitor like iPhone,Windows Mobile, BlackBerry,Symbian, Android
6. Support electronic shutter
Parameter:

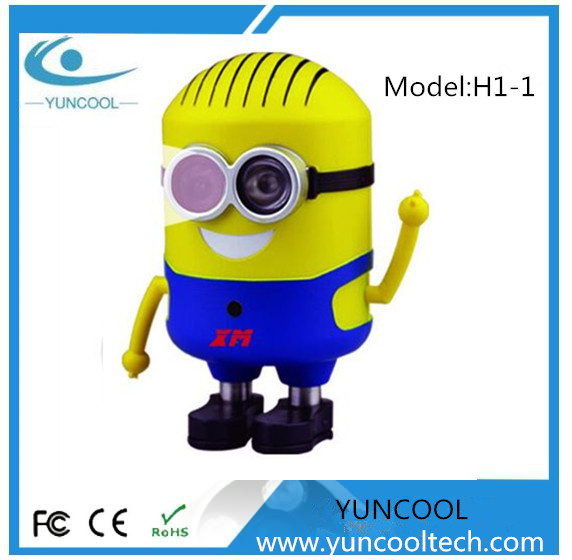

Model | H1-1 |
Image Sensor | 1/4" OV9712 CMOS |
Minimum Illumination | Color: 0.1Lux @(F1.2,AGC ON),0 LUX with IR |
B/W:0.01 Lux @ (F1.2,AGC ON),0 LUX with IR |
Shutter | 1/50(1/60) seconds to 1/10,000 seconds |
Lens | HD lens 2.6mm @ F1.8 |
Video Compression | H.264 High profile, JPEG snapshot |
IR CUT | Support |
| 32 Kbps~8Mbps |
Audio Compression | G.711a |
Max. Image Resolution | 1280*720 |
Frame Rate | 50Hz:25fps (1280*720) 60Hz:25fps (1280*720) |
Connection | WIFI,one-key WPS(Wi-Fi Protected Setup) |
Others | Support WEB,OSD,realtime video transport,motion detect,alarm activated to message pop up,JPEG snapshot,CMS, MYEYE |
Operating Condition | -10ºC~60ºC, humidity less than 90%( non-condensing) |
Power Supply | 5V micro USB |
Power Consumption | 2W MAX |
IR distance | 10~20meters |
Dimension | 130mm*70mm*75mm |
Weight | 195g |
Hangzhou Xiongmai Technology Co., Ltd., is a professional manufacturer in the security and surveillance field. Through years' development, Xiongmai Technology has been fully experienced in research and design of cutting-edge technology surveillance equipment. Both hardware and software are modular-designed with flexibility for configuration, various scales of application and future expansion.
And here let me introduce some our DVR advantages:
1. The DVR compression format is H. 264 main profile which is more advanced than H. 264 and MPG.
2. The video recording has D1, CIF and QCIF these three types.
3. The DVR supports combined encoding streams which evolve from Dual-stream and strengthen it.
4. Our DVR's picture quality is much cleaner and clearer than other DVR in the market which use PNX1701 and Ti CMOS chip when playing back and the video is playing fluently.
5. The DVR supports windows mobile surveillances through GPRS and 3G network.
6. The DVR supports Email alarm and other alarm ways
7. The max storage is 2T, and our E and D1 series can support 2 HDD.
Our products are used in the field of bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy in China and many other countries. In addition, our headquarter is in Hangzhou, and we have many branches in Shanghai and Shenzhen to provide our customers a faster and better service.
We have a strong R&D team to ensure the high quality of our products; Also our R&D team are developing new items for the market needs monthly. Our goal is to provide customers good surveillance equipments and good services, and our services include customer technical consultations and installation. Please call, email or fax us for more details.
