Product Specifications
| Prod Model: |
LSLN 20A-12V |
| Size: |
25*19*15cm |
| Weight: |
1.5kg |
| Color: |
White |
| Certification: |
CE |
| Type: |
Refrigeration Compressor |
| Usage: |
Refrigerator |
| Control Type: |
Mechanical |
| Material: |
Stainless Steel |
Product Description

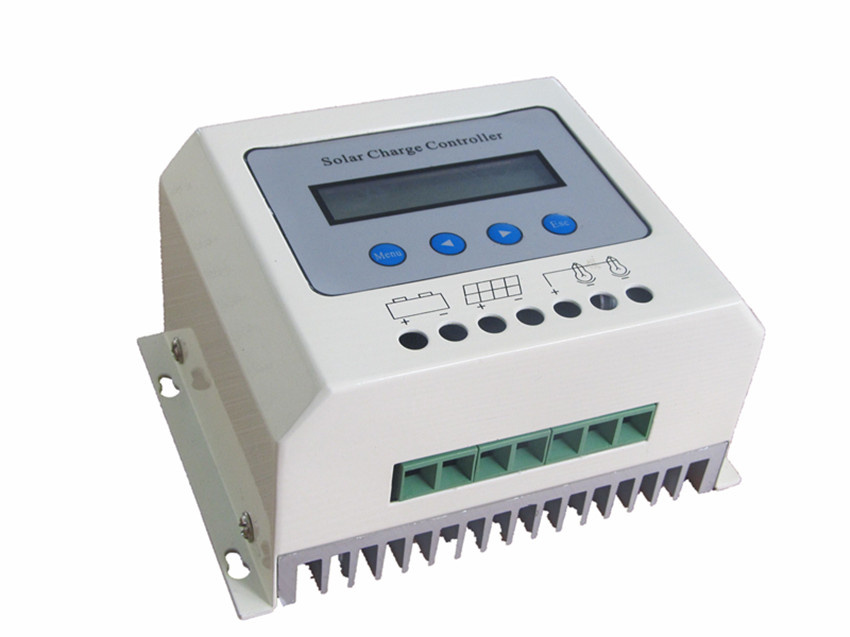

This solar streetlight controller is specially designed for small-scale off-grid solar generation system. It is applicable to the solar hybrid streetlight system, solar monitor system and so on. The equipment could control solar cells charging to battery safely and efficiently.
Functions/Features:
1. Efficient PWM Charging Mode
2. Battery Maximum Charging Current Smart Limiting
3. Every Controller Has Two DC Outputs, Each Output Has 6 Output Modes
Mode 1: Light-control on; Full-power working; Light-control off.
Mode 2: Light-control on; Full-power working for N hours, off (Time-control off).
Mode 3: Light-control on; Full-power working for N hours, half-power work, Light-control off
Mode 4: Test Mode, Full power constant on.
Mode 5: Test Mode, Half power constant on.
Mode 6: Test Mode, constant off.
4. Each Output Take Short Circuit Protection
5. Using or Not Using Solar to Charge to Battery Could be Set Manually
6. Using or Not Using Output Could be Set Manually
7. LCD Display Multi-level Menu; Intelligent Button Settings
8. Battery Over-discharge & Over-Charge Protection
9. Two Negative Pole Connect Together in Battery Charge Circuit.
|
Model |
LSLN024/12V |
|
Rated Solar Charging Current |
20A |
|
Max. Solar Charging Current |
30A |
|
Rated Battery Voltage |
12V |
|
Over-discharge Voltage |
10.2V(adjustable) |
|
Over-discharge Recovery Voltage |
11.5V(adjustable) |
|
Over-charge Voltage |
14.4V(adjustable) |
|
Over-charge Recovery Voltage |
13.0V(adjustable) |
|
Floating Voltage |
13.5V(adjustable) |
|
Output Over-discharge Voltage |
17.5V(adjustable) |
|
Output Over-discharge Recovery Voltage |
15.0V(adjustable) |
|
Light-control on Voltage |
6V(adjustable) |
|
Light-control off Voltage |
6V(adjustable) |
|
Load output Power |
200W |
|
Rated output Current of 1st Load |
10A |
|
Rated output Current of 2nd Load |
10A |
|
Working Mode of 1st Load |
Light-control on; Light-control off (adjustable) |
|
Working Mode of 2nd Load |
Light-control on; Full-power working for 5H, half-power working ; Light-control off.(adjustable) |
|
Display Mode |
LCD |
|
Display content |
Voltage of battery and solar . Current of battery and solar ; Power of solar and battery. Load working mode ,current and power; System state, and so on. |
|
Operating Temperature & Relative Humidity |
-20~+55degrees/35~85%RH(Non-condensing) |
|
Quiescent Current |
≤3W |
|
Protection Type |
Solar cells and battery anti-reverse connection,Battery over-charge, over-discharge, over-charge recovery, over-discharge recovery, etc., Load over-charge and over-discharge. |
|
Color (selectable) |
White |
