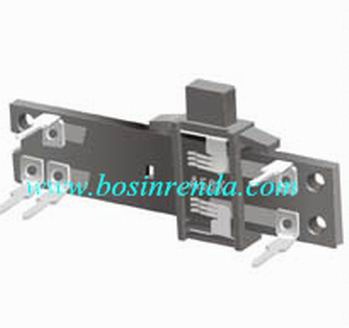

20mm Travel Slide Potentiometer Precision Potentiometer (SN074)

Name: 20mm Travel Slide Potentiometer Precision Potentiometer (SN074)
Brand: china-manufacturer-directory.com
SKU: 720904385
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SN074
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Resistance:	Variable Resistor
Type:	Slide Potentiometer
Installation:	DIP Resistor
Function For Resistance:	Load Resistor
Material:	Carbon Film Resistor
Package Type:	Plastic Box, Carton

Product Description

Potentiometer, slide potentiometers, audio potentiometers

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

Please check below specification.

1.Electrical Characteristics for slide potentiometer
1.1 Total Resistance: 1KΩ~1MΩ 1.2 Total Resistance Tolerance:500Ω R<500Ω or R>1MΩ:±30% 1.3 Resistance Taper: A,B,W 1.4 Withstand Voltage: 1minute at AC 250V 1.5 Insulated Resistance:More than 100M 0 at DC250V 1.6 Sliding Noise : Less than 100mV 1.7 Residual Resistance :Term.1~2:Less than 30Ω Term.2~3:Less than 50Ω 1.8 Max.Operation Voltage:AC 50V/DC 10V 1.9 Rated Power: 0.025W
2.Mechanical Characteristics
2.1 Slid Travel: 20mm,30mm 2.2 Operating Force :10gf~100gf 2.3 Stopper Strength :3.0Kgf (from the bas Level to a point of 2mm) 2.4 Click torque (Only Center Click) :30~150gf 2.5 Level Push-Pull Strength :3.0Kgf Min at 10Sec. 2.6 Level Wobble :2(2XL)/20mm Max.(L:Level length both sides)
3.Durability
3.1 Silding life :15,000Cycles Min

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
