Product Specifications
| Prod Model: |
LIB-305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Microscope: |
Travel: 135mm*85mm |
| Eyepiece: |
Wf10X/20 |
| Objective Lens: |
10X, 20X, 40X, Phase-Contrast 20X |
| Fixed Stage: |
Size: 240mm*260mm Travel: 135mm*85mm |
| Interpupillary Distance: |
52mm-75mm |
| Binocular Tube: |
Inclined 45 |
| Diopter Adjustment: |
5 Diopter |
| Illumination: |
6V/30W Halogen Bulb |
| Power Supply: |
110V/220V |
| Standard Delivery: |
10X, 20X, 40X Plan Achromatic Objective Lens |
| Type: |
Biological |
| Number Of Cylinder: |
Binoculars |
| Mobility: |
Desktop |
| Shape: |
Rectangular Prism |
| Principle: |
Optics |
| Magnification: |
100X-1200X |
Product Description

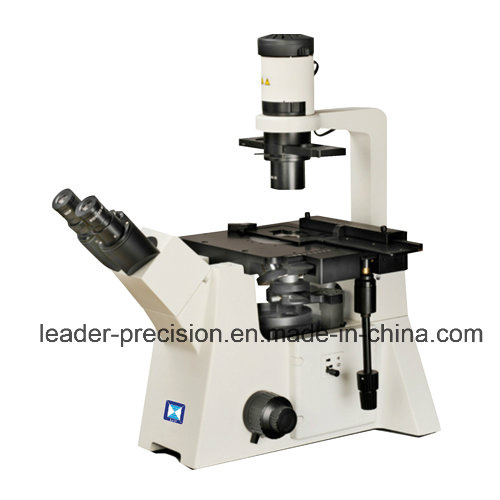

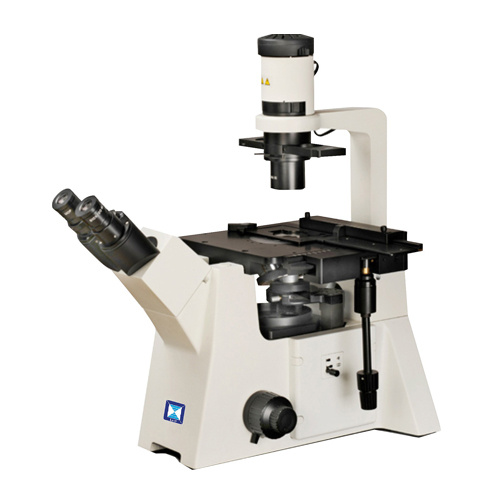

20X Phase-contrast Inverted Biological Microscope For Laboratory And Education (LIB-305)Usage:Inverted biological microscope LIB-305 is widely used for biology medicine agriculture and industry field,
The inverted light microscope is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Standard delivery:Main unit: 1pcs
10x, 20x, 40x plan achromatic objective lens: 1pcs each
20x phase-contrast objective lens: 1pcs
6V/30W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs each
Anti-dust cover: 1pcs
Optional Accessories:4X, 60X plan achromatic objective
10x, 40x phase-contrast objective
0.5x, 1x C-mount camera adapter
3.0M pixel digital camera
5.0M pixel digital camera
Technical Specifications:| Eyepiece | WF10X/20 |
| Objective lens | 10x, 20x, 40x, phase-contrast 20x |
| Fixed stage | Size: 240mm*260mm, Travel: 135mm*85mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 45º |
| Diopter adjustment | ± 5 diopter |
| Illumination | 6V/30W halogen bulb |
| Power supply | 110V/220V |
