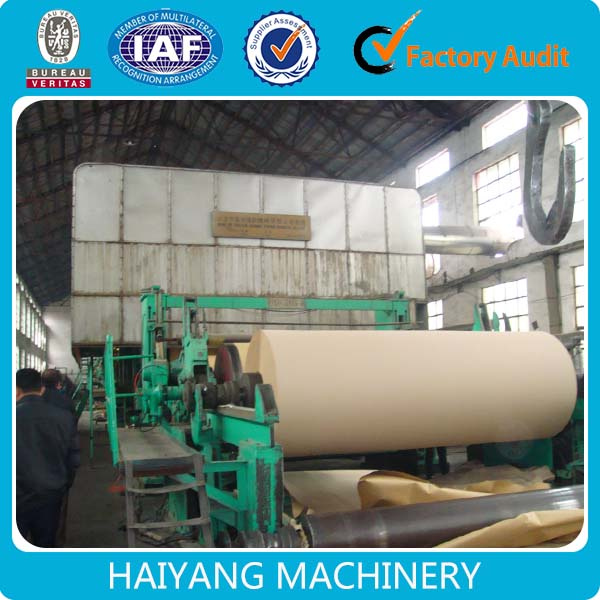

2400mm multi-dryer and multi-cylinder duplex paper machine 50T/D
I.Technical parameters:
1.Raw material:White shavings and waste paper
2.Output paper:Coated duplex board
3.Net paper width:2400mm
4.Paper grammage:200-450g/m2
5.Capacity:50T/D
6.Working speed:30-70 m/min
7.Design speed:100m/min
8.Wire width:2950mm
9.Rail gauge:3400mm
10.Drive way:AC frequency conversion adjustable speed, sectional drive
II.Main equipments and structure :
1.Cylinder part:
Φ1500mm×2950mm×3400mm stainless plate cylinder mold 6pcs, Φ450mm×2950mm×3400mm couch roll 6pcs, rubber shore hardness 38ºC±2,Φ500mm×2950mm×3400mm reverse roll 1 pc, rubber shore hardness86ºC±2.Pneumatic control couch roll , Manifold distributor, step diffusion headbox.
2.Press part:
Pre-press roll 1 set ,Top roll Φ450mm×2950mm×3400mm natural marble roll.
Bottom roll Φ400mm×2950mm×3400mm rubber roll,rubber shore hardness96ºC±2.
Major diameter blind press,Φ850mm×2950mm×3400mm rubber roll 2 pcs,rubber shore hardness98ºC±2,bottom roll with drive device,Pneumatic control
3.Dryer part:
Φ1500mm×2950mm×3400mm alloy dryer 22pcs, among which there are 2 pcs chromium facing dryer,with cleaning scraper knife 22pcs,arrangement 14pcs+sizing+8pcs .
4.Sizing part:
Top roll Φ800mm×2950mm×3400mm imitation stone roll 1pcs,hardness 100ºC±2
Bottom roll Φ805mm×2950mm×3400mm rubber roll 1pcs,hardness 96ºC±2,double drive device,pneumatic control device
5.Calender part:Φ575mm×2950mm×3400mm chilled roll 2 pcs, pneumatic pressure control
6.Winding part:2400mm horizontal pneumatic winding machine 1 set
7.Rewinding part:2400mm frame upper feed rewinding machine 1 set.
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
