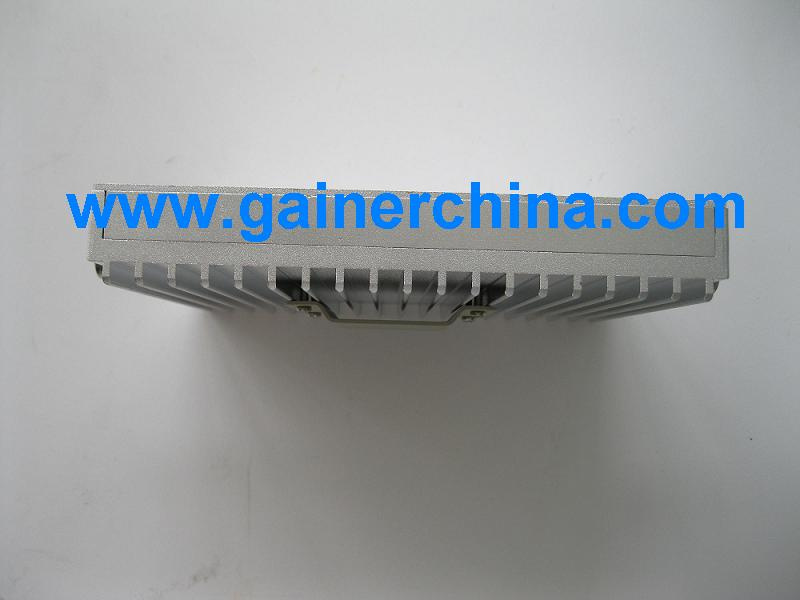

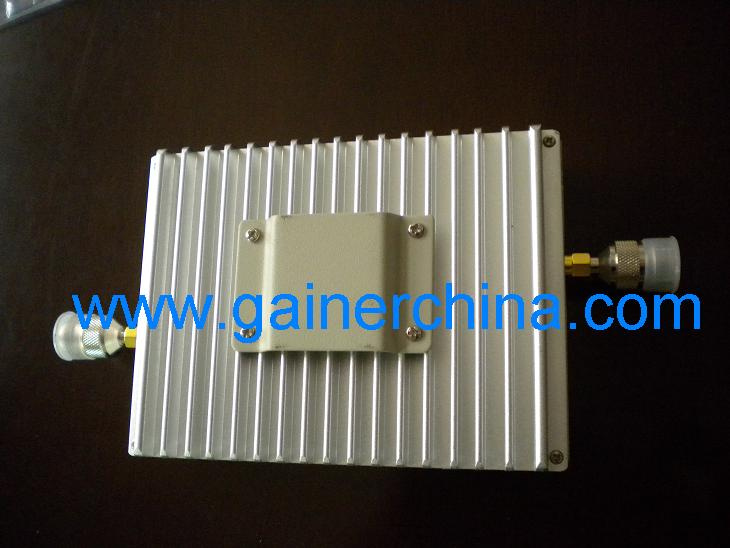

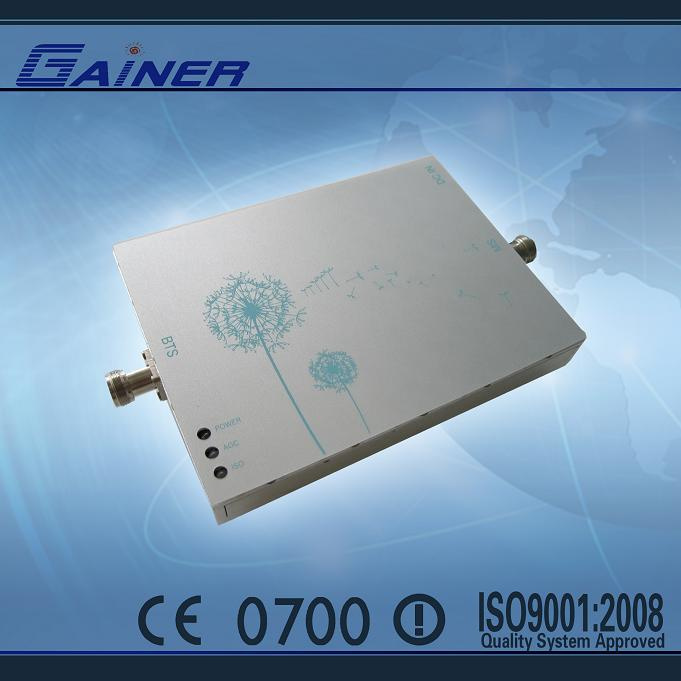

25dBm GSM Intelligent Fullband Power Mobile Signal Repeater
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
25dBm GSM Intelligent Fullband Power Mobile Signal Repeater
Features:
1.With Oscillation Detective Indicate Function;
2..With Uplink/Downlink auto gain synchronization, can adjust the UL/DL gain;
3.High gain, easy installation and operation.
4.Use ALC and AGC technology, adjust extent automatically.
5.LED Light Working & Signal Condition Indicators.
6.Dependability stand by GB6993-86 standard.
7.Compatibility of electromagnetism according with ETS300 609-4.Standard Package:

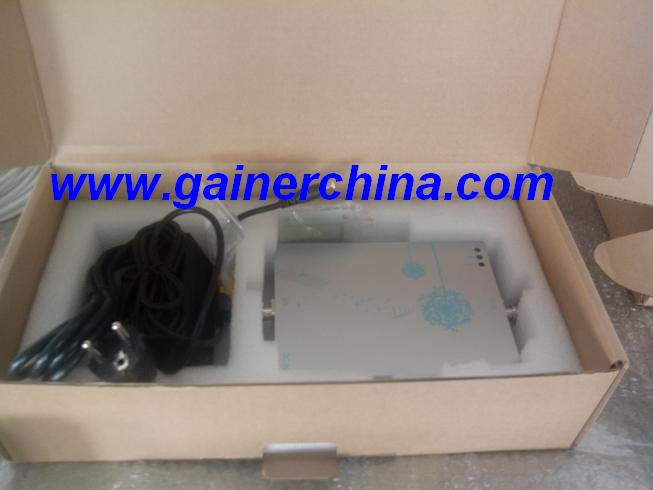

1) Power supply adapter 1 unit
2) AC power plug (USA/EU/Swiss/UK/SA/China standard etc) 1unit
3) Installation kit 1unit
4) User manual 1unit
Recommended Accessories:
1)Donor(outdoor) antenna:
For Single band repeater:Yagi Antenna(8dBi 10dBi)
For Dualband repeater:Patch Antenna(8.5dBi 806-960/1710-2700MHz)
For Triband repeater:Patch Antenna(8.5dBi 806-960/1710-2700MHz)
2)Service(indoor) antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)2*15m of 50Ω-5 coaxial cable with 2 connecters.
We can make such as frequenies:
For indoor single band intelligent repeater: GSM900, GSM1800, GSM1900M, CDMA850, 3G2100, IDEN, LTE etcFor dualband and tri-band intelligent repeater: GSM900+GSM1800 dualband, GSM900+3G2100M dualband, 900+1800+2100 triband etc.Outdoor series: Fullband repeater, band selective repeater, frequency selective repeater, frequency shifting repeater etc.Model Number | GCPR-G25 |
Frequency | UL: 890-915MHz DL: 935-960MHz |
Gain | ≥65dB |
Automatic Level Control | ≥20dB |
Noise Figure | ≤5dB |
Gain Flatness | ≤8dB (p-p), |
Automatic Gain Control | 30dB in step of 1dB (Auto) |
Output Power(Max) | UL≥20±2dBm DL≥25±2dBm |
Input Power Range | ≤-25 dBm |
IM3 | ≤-45dBc |
Spurious Emission | 9KHz~150KHz | ≤-36dBm @ 1KHz |
150KHz~30MHz | ≤-36dBm @ 10KHz |
30MHz~1GHz (out of band) | ≤-36dBm @ 100KHz |
1GHz~6.7GHz | ≤-36dBm @ 1MHz |
Group Delay | UL≤1μs |
Operating voltage | AC 220V |
Prod Model: |
GCPR-G25 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Installation Type: |
Indoor, Small Size |
Technic Advantage: |
Alc&Agc |
Certificate: |
CE RoHS ISO |
Band: |
GSM Dcs WCDMA Lte CDMA PCS Single Band |
Gain: |
65db |
Work Environment: |
Office Building,House,Coffe Shop etc |
Package: |
Neutral Packing |
Type: |
Wireless Repeater |
Certification: |
CE |
Condition: |
New |
Gainer International (China) Limited is a professional enterprise which specialized in wireless communication products, customer electronics products. We are highly developing enterprise, with CE certificate and GB/T19001-2008 /ISO 9001: 2008. We spare no effort to provide good products and service for customers all over the world.
We mainly produce signal repeater, booster of GSM, CDMA, DCS, WCDMA, IDEN, LTE CDMA450M, also other correlative products. We manufacture products by our own R&D team which was formed by experienced exports in related fields. Our design and manufacture can follow customers' special requirements.
We dedicate to provide the most satisfactory services for our customer. We aim to provide more competitive products and meet the needs of high-speed developing market.
Our products have been sold to the worldwide markets like USA, Italy, the Netherlands, New Zealand, France, Switzerland, Ireland, Russian, Spain, Poland, UK, South Africa, Brazil, Mexico, Saudi Arabia, Jordan, Indonesia, Malaysia, India, UAE, Iceland, Australia, Czech Republic, Kyrgystan, and more.
We ensure to offer the best quality and the lowest price to help you to develop your market, Hope to built up long term business relation with you.
Cooperate with Gainer International, you will be the gainer of the world, we are waiting for you!
