Product Specifications
| Prod Model: |
DY140101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Oily Water Separator |
| Certificate: |
CCS, Ec, BV, ABS |
| Product Standard: |
Imo Mepc 107(49) |
| Capacity: |
0.25~5.0m3/H |
| Processing Methods: |
Biology |
| Pullution Sources: |
Water Pollution Control |
Product Description

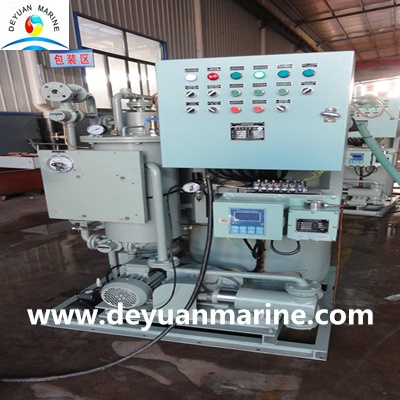

0.25M3/h~5.0M3/h15ppm Oily Water Separator / Bilge Water Separator with high quality
1. Capacity: 0.25M3/h~5.0M3/h
2. Oil content in effluent water: Less than 15ppm
3. Certificate: CCS, EC, ABS, BV
4. Usage: Ships and vessels
5. Standard: IMO MEPC107(49)
Lifeboat made in China deyuan marine, life raft made in China deyuan marine, life jacket made in China deyuan marine.
| Type | DY-0.25 | DY-0.5 | DY-1.0 | DY-1.50 | DY-2.0 | DY-2.5 | DY-3.0 | DY-4.0 |
Rated capacity
(M3/H) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 |
| Power (kw) | 0.75 | 1.10 | 1.10 | 1.10 | 2.20 | 2.20 | 3.0 | 3.0 |
Steam heater
M2/kw | --- | --- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 |
15ppm
Bilge alarm | including | including | including | including | includig | including | includig | includig |
| base | #5
1000*600 | #6
1100*690 | #6
1050*1084 | #8
1100*1130 | #8
1900*1120 | #8
1700*1500 | #10
2400*
1700 | #10
2500*
2000 |
| dimension | 1320 | 1460 | 1500 | 1660 | 1700 | 1900 | 2020 | 1820 |
Dry weight/
Net weight | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/
2260 | 1500/
2800 | 1800/
3200 | 2100/
3900 |
| Suitable for vessels | Less than 1000
DWT | 1000~5000 DWT | 5~10
KDWT | 10~30
KDWT | 30~50
KDWT | 50~100
KDWT | 100~200
KDWT | 100~300
KDWT |
More types of Oily Water Separators with competitive price can be offered, please contact us for more details.
