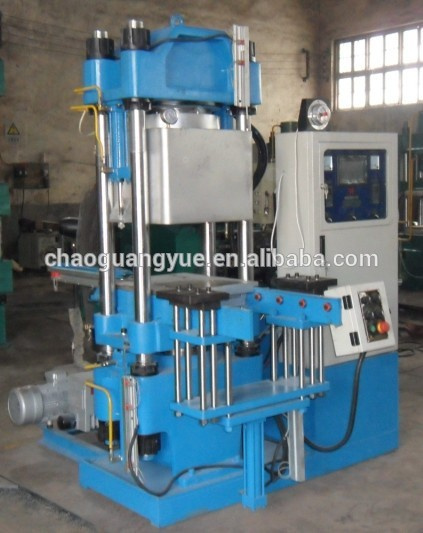

25t PVC plate rubber vulcanizing machine/ Hydraulic Press rubber mats vulcanizer/ vulcanizing hot press machine
1,Use:
This Lab vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
2, Structure of Lab press
This rubber vulcanizing machinery including main machine, hydraulic station, electric controlling cabinet.
Main machine is composed by base, plunger piston, platform, beam, automatic mould pushing-out device and compulsory mould opening device.
Under the control of PLC, this machine achieves automatic mould closing, vulcanization timing, exhausting time and frequency setting, mould opening, mould pushing, and so on.
Specification of Lab press
Model |
XLB-D/Q
350X350X1(2) |
XLB-D/Q
400X400X2 |
XLB-D/Q
500X500X2 |
XLB-D/Q
600X600X2 |
XLB-D/Q
750X850X2(4) |
Nominal pressure(MN) |
0.25 |
0.50 |
0.60/0.80 |
1.00 |
1.60 |
Plate size(mm) |
350X350 |
400X400 |
500X500 |
600X600 |
750X850 |
Plate clearance(mm) |
125 |
125 |
125 |
125 |
125 |
Working layer number |
1(2) |
2 |
2 |
2 |
2(4) |
Plate unit pressure(Mpa) |
1.56 |
3.1 |
3.2 |
2.8 |
2.5 |
Piston stroke(mm) |
250 |
250 |
250 |
250 |
250(500) |
Motor power(kw) |
3.0 |
2.2 |
2.2 |
2.2 |
3.0 |
Overall dimension(mm) |
L |
1200 |
1400 |
1650 |
1410 |
1900 |
W |
400 |
550 |
600 |
680 |
950 |
H |
1300 |
1500 |
1600 |
1750 |
2000 |
Weight(kg) |
800 |
1300 |
1500 |
3500 |
6500(75 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
