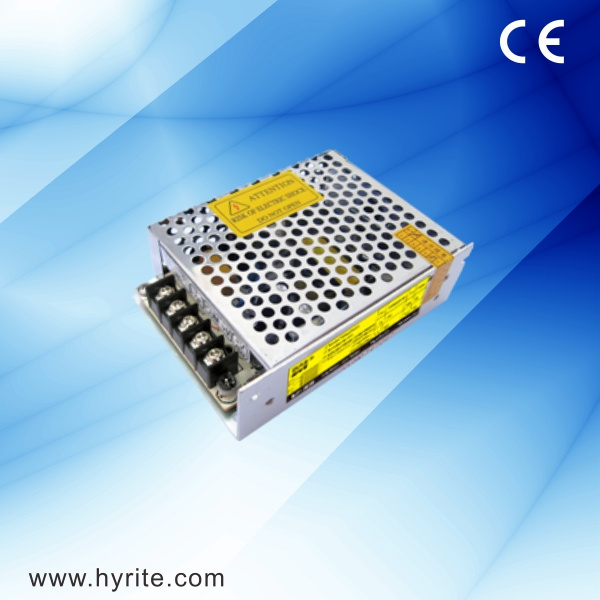

25W 12V Indoor Constant Voltage Switching Power Supply with CE1.Features of Switching Power Supply- Constant voltage output Switching Power Supply.
- Indoor Switching Power Supply.
-100%burn-in test
-Mesh case(or electric fan) for ventilation
2.Specifications of Switching Power Supply Model no. | ELDV-12E25B |
---|
Input voltage | 220-240VAC 50Hz/60Hz |
---|
Max. power | 25W max |
---|
Output type | Constant voltage |
---|
Dimming | No |
---|
Built-in active PFC | No |
---|
Power factor | Low |
---|
Efficiency | 75% |
---|
AC inrush current(max.) | Cold start, 40A@230VAC |
---|
Output voltage | 12VDC ± 5% |
---|
Output current | 2.08A max |
---|
Overload protection | 110-150% hiccup mode, auto-recovery |
---|
Over voltage protection | 115-150% rated output voltage |
---|
Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
---|
Operating temperature | -10~+60,100%Pout@0~45, 60%@60 , 80%@-10 |
---|
Installation | Indoor |
---|
IP rating | IP 20 |
---|
Cooling | Free air convection |
---|
Connection input/output | Terminal |
---|
Weight(kg) | 0.2000 |
---|
3. Applications of Switching Power Supply*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting
4.Important Parameter of Switching Power SupplyStore Temperature: -25~75° C
Working Temperature: -10~40° C
Work environment: Indoor installations
Waterproof Rating: IP20
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
