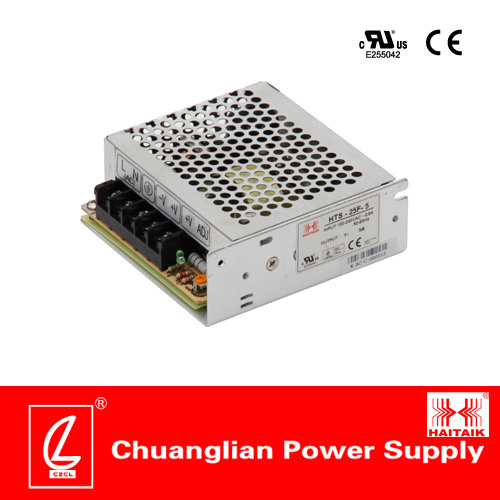

25W 5V Certified Standard Single Output Switching Power Supply

Name: 25W 5V Certified Standard Single Output Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 764642455
Availability: InStock
Rating: 4.5 (78 reviews)

Price:	US $ 5.9-6.4/Piece
Trade Terms:	FOB
Min Order:	300/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	HTS-25F-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	85X58.5X36.5mm
Output Voltage:	5V
Color:	Silver
EMC Standard:	En55022 Class B, En61000-3-2,3
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Output Power:	25W
Input Voltage:	85-264VAC; 120-370VDC
Brand:	Haitaik

Product Description

Product Model:HTS-25F-5

Features:

Universal Input 85 to 264 VAC

EMI Meets EN55022(CISPR22) Class B

Low Power Consumption

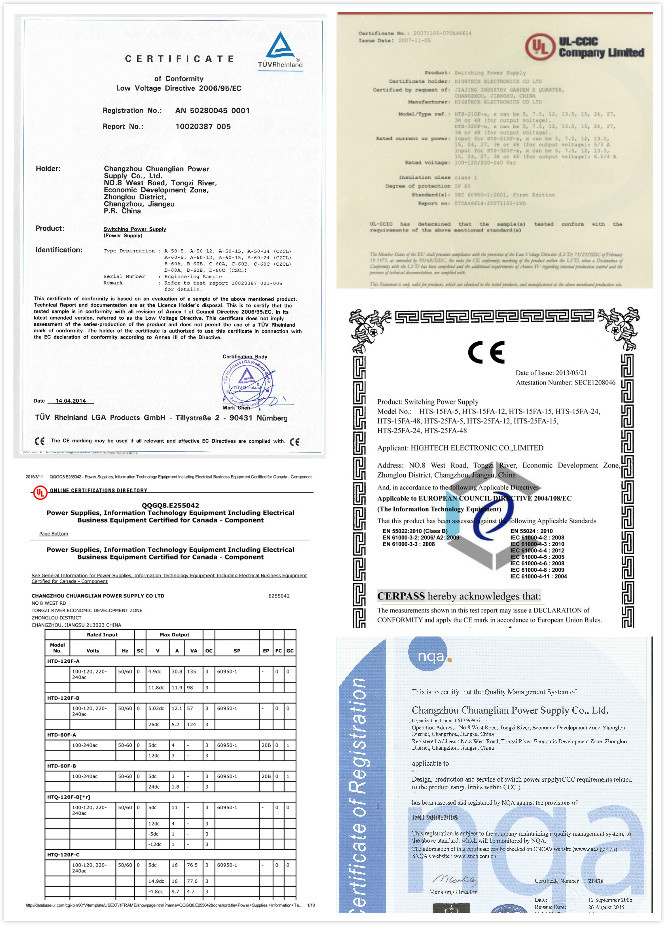

Approvals: UL/ CUL/ TUV/ CB/ CE

Protections: Over Load/ Over Voltage

Short Circuit

100% Full Load Burn-in Test

2 Years Warranty

Case: 401 Size: 99x98.5x36mm

Input Voltage Range............................................85~264VAC; 120~370VDC

Input Frequency....................................................47-63Hz

Inrush Current.......................................................Cold Start, 15A/ 115VAC, 25A/ 230VAC

Output Adjustment Range................................. ±10% Rated Output Voltage

Line Regulation...................................................≤ 0.5%

Output Over Load Protection.............................110%~150% Hiccup Mode, Auto-recovery

Output Over Voltage Protection.........................115%~135% Rated Output Voltage

Output Short Circuit Protection..........................Hiccup Mode, Auto-recovery

Rise, Hold Up Time............................................50mS, 20mS at Full Load (Typical)

Hi-pot Isolation.....................................................I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC

Operating Temperature Range.........................0 ºC to +50ºC @100%, -10ºC@ 80%, +60 @60% Load

Storage Temperature Range.............................-40ºC to +85ºC, 0 to 95%RH (Non-Condensing)

Safety Standards...................................................UL60950-1, TUV EN60950-1

EMC standards.....................................................EN55022 class B, EN61000-3-2,3

EN61000-4-2,3,4,5,6,8,11,ENV50204

Cooling Method....................................................Free Air Cooling Convection

Product model	DC output	Load regul.	R&N	Efficiency
HTS-25F-5	5V, 5A	1%	50mV	73%
HTS-25F-12	12V,2.1A	0.5%	100mV	77%
HTS-25F-15	15V, 1.7A	0.5%	100mV	78%
HTS-25F-24	24V, 1.1A	0.5%	100mV	81%

Founded in March of 2000, Changzhou Chuanglian Power Supply Co. Ltd. Focuses on researching, developing and manufacturing varieties of AC/DC and DC/DC switching power supplies and modules. Chuanglian® Is one of the famous and leading brands in the switching power supply industry in China. The product spectrum of the company covers the power rating from 5W to 2, 000W in over 2, 000 different models. Chuanglian Power Supplies are widely used in communication, LED display, industrial control, monitors, lighting, railway system, power station, instrumentation, medical equipment, etc. The company offers the costumers in over 50 countries/Regions including Europe, the USA, Japan, Korea, Hong Kong with the annual capacity of 6, 000, 000 units.

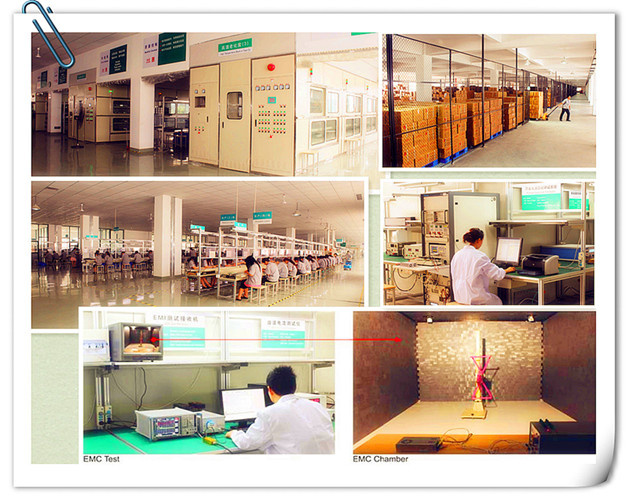

The plant is equipped with vertical and horizontal Automatic Insertion Machines and Surface Mount Machines, Automatic Wave Soldering Machines, PC based Power Supply Auto Test Systems, RoHS spectra analyzer and many other state-of-art devices. For assuring the high quality and reliability, all of the key components for the products are sourced from worldwide famous vendors. Every single unit has to pass the full load high temperature burn-in test. The average failure rate is less than 0.2%.
