| Price: | US $ 4.45-4.5/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |

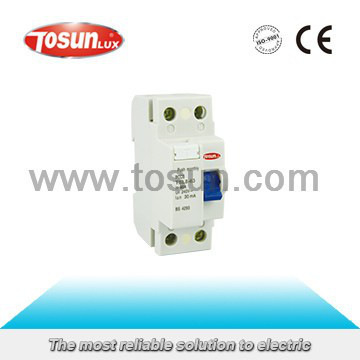

| Prod Model: | TSL8-63 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage (V): | 240 / 415 |
| Rated Frequency: | 50/60Hz |
| Rated Current (a): | 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Rated Operating Current (IΔn) (Ma): | 10, 30, 100, 300, 500 |
| Rated Non-Operating (IΔn) (Ma): | 4000 |
| Tripping Curve: | C, D |
| The Type: | Electronic |
| Breaking Capacity: | Low Voltage Circuit Breakers |
| Certification: | CCC |
| Operation: | Manual Type |
| Installation: | Insert |
| Arc-extinguishing Medium: | Air |
| Speed: | High-Speed Circuit Breaker |
| Structure: | RCCB |
| Poles Number: | 2p, 4p |
Application
The RCCB can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk. Thus. It is suitable to avoid the shock hazard and fire caused by earth leakage.
The RCCB is mainly used in various plants and enterprises, building construction 1-phase 240V and 3-phase 415V 50/60Hz. The products comply with IEC61008 and have been certified by "CB", "TUV", and "CE".
Specification
Number of Poles | 2P, 4P |
Rated Current (A) | 16, 20, 25, 32, 40, 50 ,63, 80, 100 |
Rated Residual Operating Current (In)(mA) | 10, 30, 100, 300, 500 |
Rated Residual Non-operation Current (In)(mA) | ≤0.5In |
Rated Voltage | 2P: AC 240V |
4P: AC 415V | |
Residual Operating Current Scope | 0.5In~In |
Residual Current Off-time | ≤0.3S |
Breaking Capacity | 3,000A |
Endurance | 4,000 |
Protection Degree | IP20 |

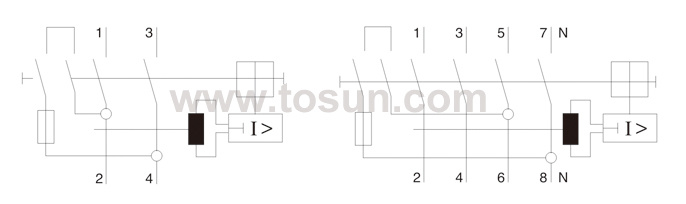

Operation Principle

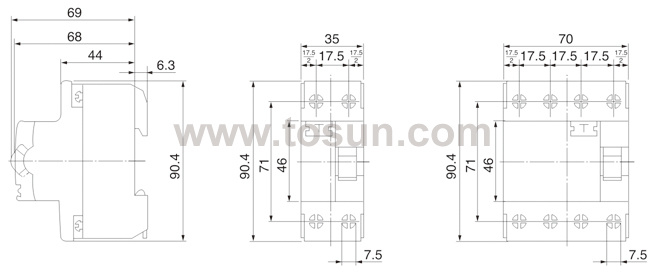

Overall And Mounting Dimensions(mm)
About Us

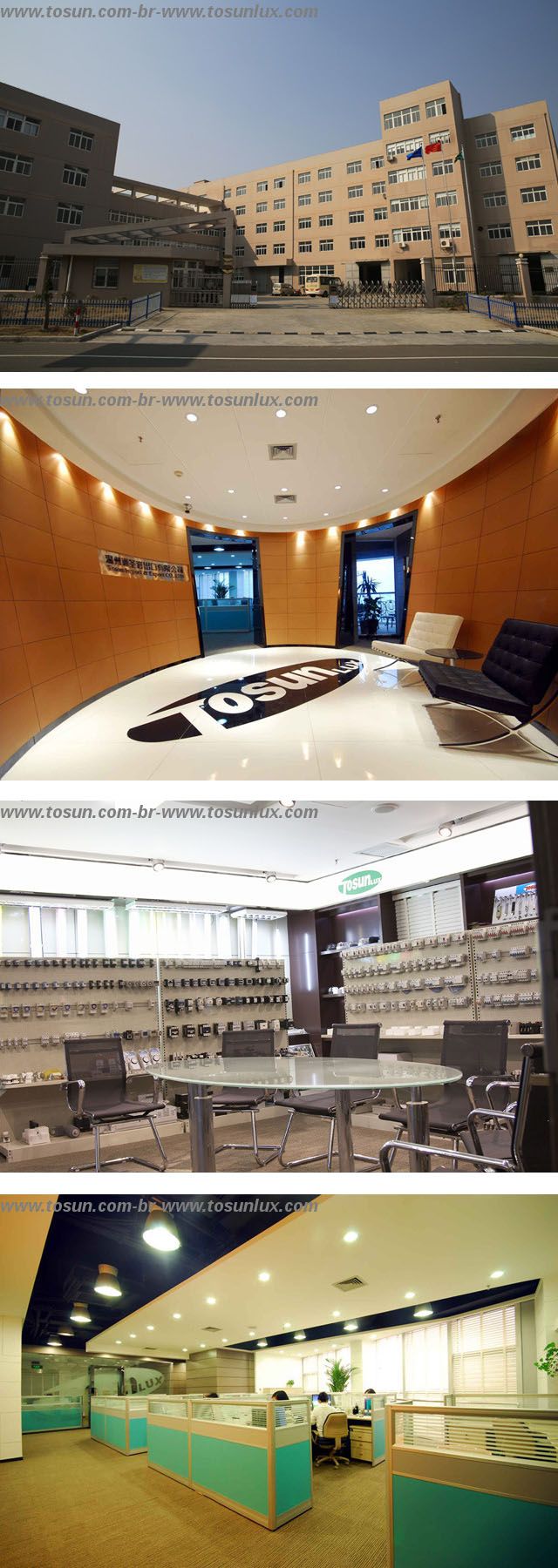

Wenzhou Tosun Electric Co., Ltd
We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as voltage stabilizers, circuit breakers, AC contractors, meters, relays, control units as well as illumination items.
Qualifications and Technological Strength
We possess full line of high tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in design, exquisite in workmanship and excellent in quality. A lot of our products have obtained "SEMKO", "CB", "CE" and "IRAM", as well as other international quality approvals. The products now are being well sold in more than 100countries and regions in the world.
Contact Us Today
We always pay special attention to protecting the benefit of clients, so that both the clients and our company are able to gain benefit from the business relation to the maximum degree. We warmly look forward to establishing, reinforcing and expanding a long term fruitful relationship with the reliable clients all over the world.
Let's get busy and pull together to create a better future.
Why us?
1. We always consider the benefit of the clients first, because we pay special attention to the reputation of our company.
2. We have extensive experience in low tension electric items and illumination products, because we have been dealing the line for more than 21 years.
3. The prices of our products are very reasonable because we have a good network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².
4. The quality of our products are reliable because we have a group of professional inspectors supervising the quality during the production and before shipment. Our products have obtained TUV, SEMKO, CE, CB, and ROHS certificates.
5. The packing of our products is attractive because we have particular designers in charge of packing material in a unique style.
6. The service from our company is favorable, because we have experienced salesmen to handle business for you specially.
For Further Information
www.tosun.com www.tosunlux.com
