Features & Benefits
1.2U 650mm depth, ideal for IDC/High Perfromance Computing Server
2. Support Extended (12"x13"), (12"x10.5"), (12"x9.6") M/B
3. Support Standard ATX Power & 2U PSU
4. Optional front VGA port for on-site monitoring
5. Modular design in HDD cage/front fan/backplane for easy maintenance
6. Fully utilized space to support 6x3.5"HDD(max=8), 2x5.25"CD-ROM
Specification
Order Code Generality
ED207L65 Metal Material SGCC
Description Metal Thickness 1.2 mm

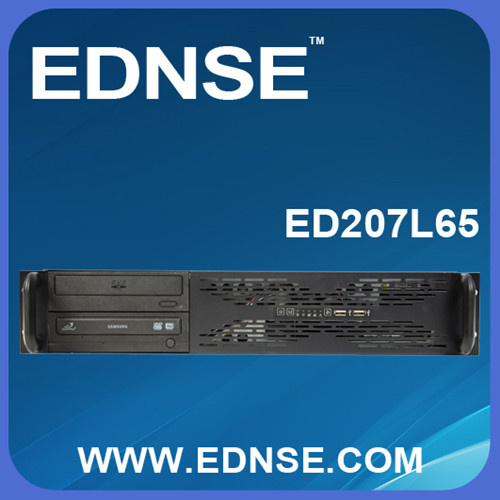

2U 650mm depth, 6x3.5"HDD(max=8), 2x5.25"CD-ROM Metal Material Type ABS
Expansion Slots
M/B Form Factor FF 7
(12"x13"), (12"x10.5"), (12"x9.6") System Cooling(Hot-Swap)
Processor Middle 4 x 8025 mm (Hot-Swap)
DP Xeon(Intel), DP Opteron(AMD) Rear
Core(Intel) Rear Window
Support Backplane Standard
Front Panel
Chassis Dimension Front Control Power On/Off
D x W x H (mm) 650x430x88 System Reset
D x W x H (inch) 25.6''x16.9''x3.5'' Alarm Reset
Drive Bay Indicator Power LED (x1)
Hot-Swap 3.5" and 2.5" 6 (Max=8) HDD Activity LED (x1)
CD-ROM 2 x 5.25" CD-ROM LAN Activity LED (x2)
Fan / Power Failure LED
Power Supply Ports USB2.0 x 2
Standard ATX Power & 2U PSU VGA ( option)
Shipping Information*
Net Weight (Chassis Only) 7.5 Kg
Gross Weight (w/Packing) 9.5 Kg
Cubit Feet 0.072CBM
Container Information 20': 388pcs
40': 861pcs
40'H: 972pcs
Founded in 2005, Denese Group owns the brand, EDNSE. We have more 10 years' experience in manufacturing system equipment and server system equipment products, such as rack mount chassis 1U, 2U, 3U, 4U and 5U ITX tower cases. Our products are exported to more than 43 countries and districts, particularly in Southeast Asia, Europe, North America, the Middle East and Russia.
We also provide OEM and ODM services to our clients. Contact us today for more details.
