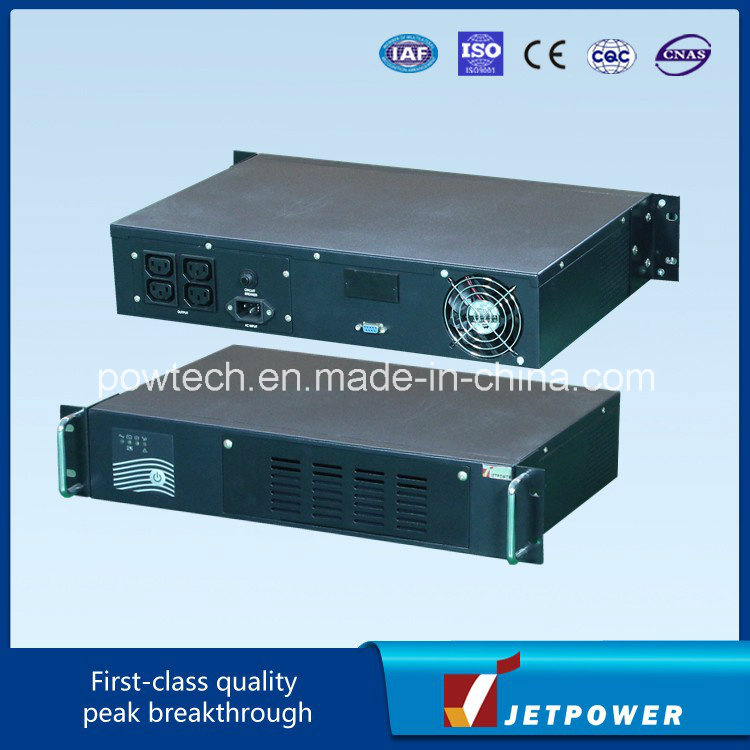

Seagull Series Line Interactive UPS (500~1000VA)
Main Features:
1) Compact 1U or 2U design (1U for 500 ~800VA, 2U for 600~1000VA)
2) Provides line-interactive design and true sine wave output
3) Microprocessor control guarantees high reliability
4) Built-in Boost and Buck AVR to stabilize input voltage
5) User-Replaceable hot swappable battery design & cold startup capability
6) Enable to extend runtime with scalable external battery pack (inbuilt 10A battery charger)
7) Fully protection for overload, short-circuit, overheat and battery over discharge protection
8) RS232 /USB communication port
9) SNMP Card SLOT available
Technical Specifications:
| Model | 600S | 600L | 1000S | 1000L | 500S | 800S |
| Capacity | 600VA / 420W | 600VA / 420W | 1000VA / 700W | 1000VA / 700W | 500VA / 300W | 800VA / 500W |
| Overview | Surge Protection Only (VA) | 600VA | 600VA | 1000VA | 1000VA | 500VA | 800VA |
| Outlook | 19"/2U | 19"/2U | 19"/2U | 19"/2U | 19"/1U | 19"/1U |
| Design Type | Line Interactive |
| Waveform | Pure sine wave |
| AVR Function | Boost, Buck |
| Input | Nominal Voltage | 115 or 230Vac |
| Voltage Range | 72~144V/145~275V |
| Frequency Range | 60Hz-->115V/50Hz-->230V±6Hz |
| Power Line Surge | 1482/476 Joules | 1482/320 Joules |
| Socket Type | Power Cord+C.B->115V
Inlet Socket+C.B->230V |
| Output | Nominal Voltage | 115/230Vac |
| Voltage Range (AC Mode) | 100~127V/200~253V (+10~-13%) |
| Voltage Range (Batt. Mode) | 115/230v±6% |
| Frequency Stability | 50/60Hz +/- 0.5% |
| Socket Q'ty (Backup+Surge) | (NEMA/IEC)*4 |
| Transfer Time | < 4ms (typical) |
| Overload | Protection (AC Mode) | 100%~120% 1min S/D |
| Protection (Batt Mode) | 100%~ 120%->25Sec S/D, >120%->immed UPS Off. |
| Battery | Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 12VDC | 12VDC |
| Battery Capacity | 12V/7AH*1 | NA | 12V/7AH*2 | NA | 6V/7AH*2 | 6V/9AH*2 |
| External Battery | No | Yes | No | Yes | No | No |
| DC Cold Start | Yes |
| Built-In Charger | 1A Max. | 6~10A Max. | 1A Max. | 6~10A Max. | 1A Max. |
| Charger Over Protection | Yes |
| Charging When UPS off | Yes |
| Microprocessor Control | Yes |
| Communication | Port | RS232 or USB |
| Monitoring Software | UPSilon2000 |
| SNMP Card (optional) | DP801 Slot |
| Display | LED | 4 LEDs on Front Panel |
| LED Status | Line, Batt Mode/charger, Overload/Fault |
| LCD | option |
| Environment | Temperature | 0-40 degree C |
| Humidity | 3000 Meters max Elevation 10-95% |
| Audible Noise | Less than 45dBA (at 1M) |
| Physical | Dimension(D*W*H), mm | 280*430*89 | 300*430*44 | 350*430*44 |
| Net Weight (Kg) | 9.6 kg | 8kg | 12.4kg | 9kg | 9.6kgs | 12.4kgs |
