3.5"Car Rear View System (DF-32161W)
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |

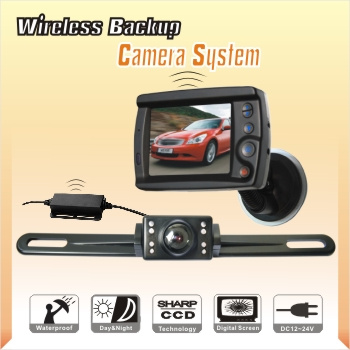

*Free Voltage DC11-32 Volts Wireless Backup Camera System
*3.5" Digital Screen TFT LCD Monitor Built-in 4 CH 2.4GHz Wireless Receiver and CDS Sensor for Illumination of the Control Knobs, Monitor Automatically Activated on Detecting Wireless Signal, On-Screen Menu for All Settings: Normal/Mirror view, Reversing Image Delay, Priority of Reverse Camera.
*Backup Camera with 2.4GHz Wireless Transmission Box Built-in Magnet, Easy installation.
| PRODUCT SPECIFICATION |
| 2.4GHz Wireless Transmission Backup Color Camera(MODEL:DF-8027IRFS) |
| Image Type: 1/3 Color CMOS |
| Horizontal Resolution:330TV Lines |
| Effective pixel:NTSC:510(H)X496(V);PAL:628(H)X586(V) |
| Usable illumination:0Lux(Built-in 8pcs IR LED) |
| Water resistance:IP65, Waterproof for outdoor use |
| Wide angle : 150 degree |
| Wireless Transmission Power Box Built in 2.4GHz Transmitter and Omni-directional Antenna |
| About 100 meter wireless send distance without block |
| Wireless Transmitter box Power supply:DC12~24V/350mA |
|
| 3.5" Digital Screen Wireless Receiving TFT LCD Monitor (Model:SP-356) |
| Display Resolution: 320RGB(H) X 240(V) dot |
| Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65 |
| Brightness (cd/m2): 300 |
| Contrast ratio: 300:1 |
| Color system: PAL/NTSC |
| Built-in 4 CH(2.414/2.432/2.450/2.468)GHz wireless receiver |
| Estimate of 100 meter wireless receive distance without block |
| Receiving power: -80 dB |
| Operating temperature: -20ºCto +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Power consumption:DC11~32V |
| External dimension:L*W*T(80X80X21.5)mm |
| Weight Approx: 179g |
|
| Product Accessories |
| Auto Cigarette Lighter, Remote Control, User’s Guide |
| Prod Model: |
DF-32161W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
400CD /M2 |
| Load Dump: |
DC14+87V(Td400ms) |
| Waterproof: |
IP69k |
| Shockproof: |
10g |
| Type: |
Monitoring System |
| Application: |
Sound Monitoring |
| Feature: |
Vandal-proof |
| Video Capture System: |
Video Camera |
| Video Transmission System: |
Coaxial-Cable Transmission |
| Software Function: |
Monitoring |
| Software Usage: |
Vehicle Monitoring Software |
| Client Software: |
Without Client Software |
| Kind: |
Manual Focus Lens |
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
