Product Description:
1, We have well experienced in reseaching and developing different trailers: Container trailer, low bed trailer, side wall semi trailer, stake semi trailer, tank trailer and heavy duty trailer etc.
2, High tensile strength steel Q345B for I-beam
3, Axle: German or American style from 12 tons to 20 tons
4, Suspension: Mechanical suspension, air suspension or bogiesuspension.
5, Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
6, King pin: Optional for 2" or 3.5" Kingpin
7, Landing gear: "Jost" landing gear

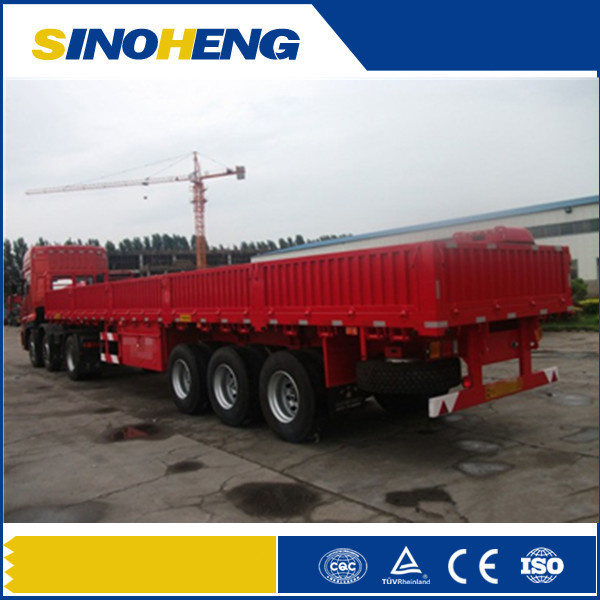

Side Wall Semi Trailer |
Assembly | Composition | Specification | Optional |
Dimensions | Size(LxWxH) | 12450x2500x2180mm |
|
Curb weight | 7500kg |
|
Loading weight | 60000kg |
|
Chassis | Main beam | Q345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Downplate is 16mm. |
|
Cross beam | 16# channel steel |
|
Side beam | 25# channel steel |
|
King pin | 2'' or 3.5'' traction pin | Optional JOST |
Floor | 3mm diamond steel plate |
|
Fence | 1.5m steel plate 600mm height, fence 500mm+200mm |
|
Support leg | China brand 28Tons (Double speed) |
|
Suspension | Type | Common mechanical | Optional Air suspension |
Steel spring | 90(W)mm*13(Thick)mm*10 Layer |
|
Axle | Brand | Fuwa(13000kgx3) | Optional BPW |
Wheel rim | 9.0-22.5 steel wheel rim |
|
Tire | 12.00R22.5(12 pcs) | Optional 12.00-20 |
Brake system | Brake chamber | WEBCO, 6 big chamber |
|
Brake valve | KTL/WEBCO |
|
Brake syste | Dual line brake system | Optional ABS |
Other | Light | Tail lamp with tum signal, brake light & reflector, side lamp etc. |
|
Landing gear | 28 Ton manual operating, heavy duty landing gear. | Optional JOST |
Tool box | 1 set standard tool box |
|
Spare tire carrier | 2 pcs |
|
Painting | 1 coat of anticorrosive prime, 2 coats of final paint. |
|
SINOHENG is a professional exporter of construction machinery in China, working with government manufacture of XCMG and SINOTRUK. On the basis of the Groups, we export the construction machinery more than 100 countries. We always help our customers find the most suitable machines according to customer local market. From us, you could get all the construction machinery you need at earlier time. In the meanwhile, you could enjoy the most competitive price, strong quality and sales service here. We sincerely welcome you contact us for cooperation!
1. Loader: Engine power: 25HP-532HP
Bucket capacity: 0.3m3-6.5m3
Rated load: 800kg-12000kg
Main product: wheel loader, skid steer loader, mini loader, backhoe loader, etc
2. Crane: Lifting weight: 5ton-2000ton
Main product: truck crane, rough terrain crane, truck mounted crane, crawler crane, all-terrain crane, tire crane, etc
3. Dump truck, tractor truck, mixer truck, semi trailer, container transport semi trailer, concrete mixer semi trailer, tanker transport semi trailer, wrecker truck and other different series.
Other series of construction machinery: forklift, motor grader, road roller (compactor), excavator, concrete pump, telescopic handler, etc
