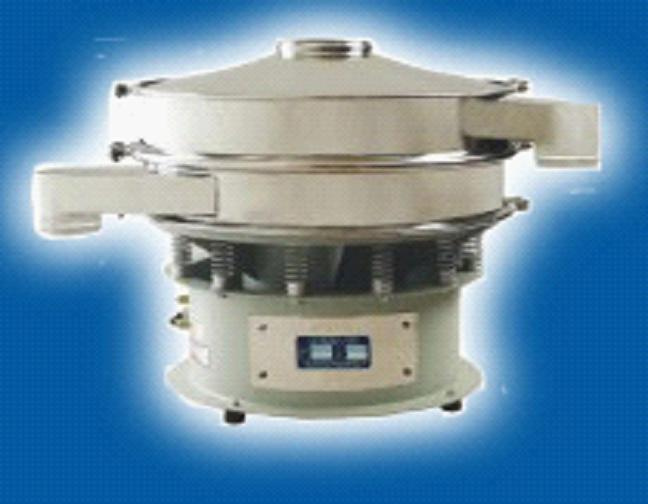

3-D Vibrating Screen One Layer (VB)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Design Concept:
In view of the feedbacks from our customers, based on our own knowledge patent, our engineers constantly improve technology and products function to better satisfy the needs of customers.
Working Function:
We adopt new type dynamic generator, making three dimension powers more obvious and successfully making the scale of processed materials enlarged. Accordingly this makes Beilite VB series 3-D vibrating screen capable of processing various kinds of materials.
Application Fields:
The stuffs capable to be processed include dry, wet, refined, crude, light, heavy (0-400MESH) materials of all sorts above. Liquid and pasty stuffs(0-600 MESH) can be filtered as well.
Features:
The outstanding griddle net clearing apparatus can reduce the rate of screen being blocked to minimums and therefore sieving efficiency and processing refining degree will be effectively enhanced. In addition, special types and various griddle net fixing forms are available for customers to choose.
|
Model |
Power(kw) |
Effective Diameter for Seive Surface(mm) |
Packing Size |
Layer |
|
VB-400-1S |
0.18 |
Φ 320mm |
580× 580× 560 |
1 |
|
VB-600-1S |
0.55 |
Φ 550 mm |
800× 800× 680 |
1 |
|
VB-800-1S |
0.75 |
Φ 750mm |
900× 900× 780 |
1 |
|
VB-1000-1S |
1.5 |
Φ 950mm |
1160× 1160× 880 |
1 |
|
VB-1200-1S |
1.5 |
Φ 1170mm |
1360× 1360× 980 |
1 |
|
VB-1500-1S |
2.2 |
Φ 1450mm |
1850× 1850× 1130 |
1 |
|
VB-1800-1S |
2.2 |
Φ 1750mm |
2200× 2200× 1360 |
1 |
| Prod Model: |
VB |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Type: |
Mineral Processing & Screening Equipment |
Xinxiang Beilite Vibration Machinery Co., Ltd., is a manufacturer specialising in research, design and manufacture of professional vibration machines. Beilite is an integrated enterprise specialising in grinding, crushing, sieving, conveying and the design, manufacture and installation of energy saving and environmental protection products. Our engineers can also advise on system program design.
Beilite is located in Xinxiang City, Henan Province -, China which is called the home of Vibration Machines and has superior geographic location, convenient traffic, and a special cultural and natural landscape. A warm welcome is offered to friends from all over the world as our guest.
Beilite produces high quality lightweight type Linear vibration screens, YK, YA series circular mining screen machines, VB Equal thickness elliptical vibrating screens, dehydration and desliming cambered screen machines, large hot-ore/cold-ore mining vibration screens, probability screen machines, Frequency Conversion vibrating screens, banana vibration screens. In addition, Beilite designs VB-3D series Vibration screens and filters, VBC ultrasonic sieving machines, VBG high frequency vibration screens, VB200 NC standard testing sieving machine, VBQ Vertical airflow vibration screens, VB450 filter machines, VB New type NO 1sieving machines, Inertance and specific weight screen, various vibration motors, BHD Vibrators. All the above products which have had mature experience are manufactured using modern high technology methods.
Our other manufactured products include various specification Hammer crushers, Roller crushers, Jaw crushers, Vibration milling machines, Raymond milling machines, Rotary vibration milling machines and various model Belt conveyors, Bucket elevators, Vertical vibration feeder machines, Screw elevators, Scraper conveyors. All the above series machines make up complete production line of a Milling system, Conveying system, Sieving system which is widely used for pharmacy, food, chemical industry, mining, metallurgy, building material, coal, electricity, non-pullted industries. Beilite machines extensively used in the domestic market. Meanwhile, they are exported to the countries inAsia, Africa, Latin America, Russia and other places to order.
We always adhere to the principle of innovation after learning by experience, therefore we have a program of continuous improvements. We have the certification of ISO9001: 2008 on 2010 and are awarded AAA for good quality and high- integrity enterprise.
Keeping in touch with research and design departments of one industry and experts and scholars in colleagues, having been established a friendly and long term business relationship with Vibraconstic, Mortensen, Reflex etc. World famous companies manufacturers of vibrating machinery, giving Beilite a perfect base to develop.
With the advanced technologies, good-quality products combined with our excellent engineering skills, high quality manufacturing machines and testing equipments, and the best price combined with the best services, we are certain our products can satisfy each of our customers and we hope we can establish a long business relationship with our customers to create a win-win situation.
