Product Specifications
| Prod Model: |
CGF32/32/10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
2000-20000bph |
| Materia: |
Ss304 |
| Weight: |
2500kg |
| Automatic Grade: |
Automatic |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Volumetric Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Filling Principle: |
Pressure |
| Packaging Type: |
Bottle |
| Dosing Device: |
Capacity Cup |
| Packaging Material: |
Plastic |
Product Description

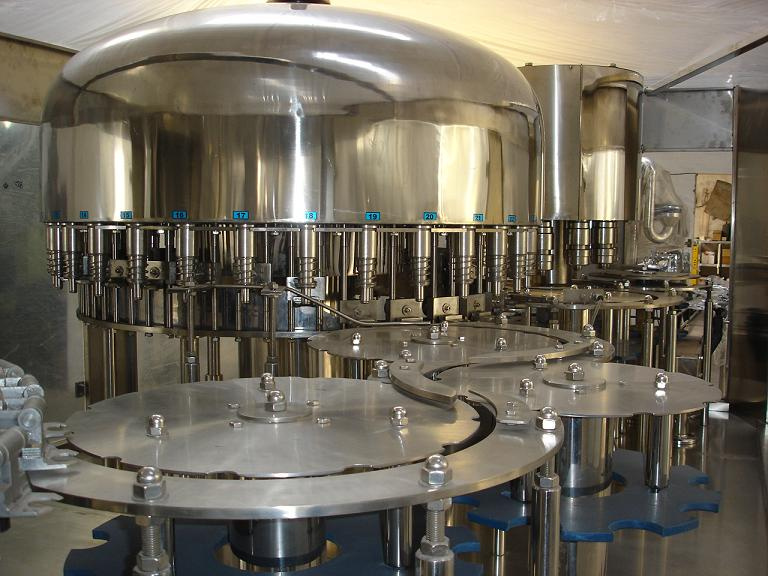

Mineral water filling machine 3 in 1 Characteristics:
1. Water filling machine is used in filling for non-carbonated beverage, compose bottle rinsing, filling and capping three fuctions into one body of the machine.
1. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east.
2. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
Main Technical Specifications for water filling machine(500ml):
Model: CGF32/32/10
Production(b/h): 15000
Filler valves: 32
Rinser grippers: 32
Capper header: 10
Suitable bottle shape: Circular or square
Bottle diameter(mm): Φ 50-φ 90
Bottle height(mm): 150-310
Compressed air pressure(MPa): 0.3-0.7
Washing medium: Aseptic water
Washing water's pressure(MPa): 0.25
Total output (KW): 5.6
Weight (kg): 4000
Zhangjiagang Beierde Beverage Machinery Co., Ltd., located by the side of the Yangtze River, National Civilization City- China Zhangjiagang City, enjoys pleasant scenery and convenient communications of land ways and water ways, renowned as " A land of fish and rice" and " An oasis of the South Yangtze River".
As the leading beverage bottling machinery in China, we own more than 500 production lines running all over the world.
Main Products: Three-in-one filling machine (include rinser, filler, capper).
1.2000-23000 BPH Table-Water Bottling Line;
2.2000-16000 BPH Hot Bottling Line;
3.2000-15000 BPH Carbonated Beverage Bottling Line;
4.100-1800 Barrels/Hour Filling Line, 3-Gallon & 5-Gallon Water Filling Line;
5. PET Preform Injector and Bottle Blow moulding machine;
6. Water Treatment;
7. Packing machine;
8. Carbonating Mixer;
9. Turn key Project.
