Price: | US $ 5.5-6.2/Piece |
---|---|
Trade Terms: | FOB,CIF,DAP |
Min Order: | 10/Piece |
Pay Type: | T/T,Paypal,Western Union |
Prod Model: | HE045-01 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 132*45*30mm |
Net Weight: | 170g |
Usage: | LED Light |
Output Type: | Single |
Driving Method: | LED Constant Current |
Circuit Structure: | PWM Controlled |
Brand: | Fahold |
Pack Sealing Size: | Plastic Case |
Certification: | SAA, CB |

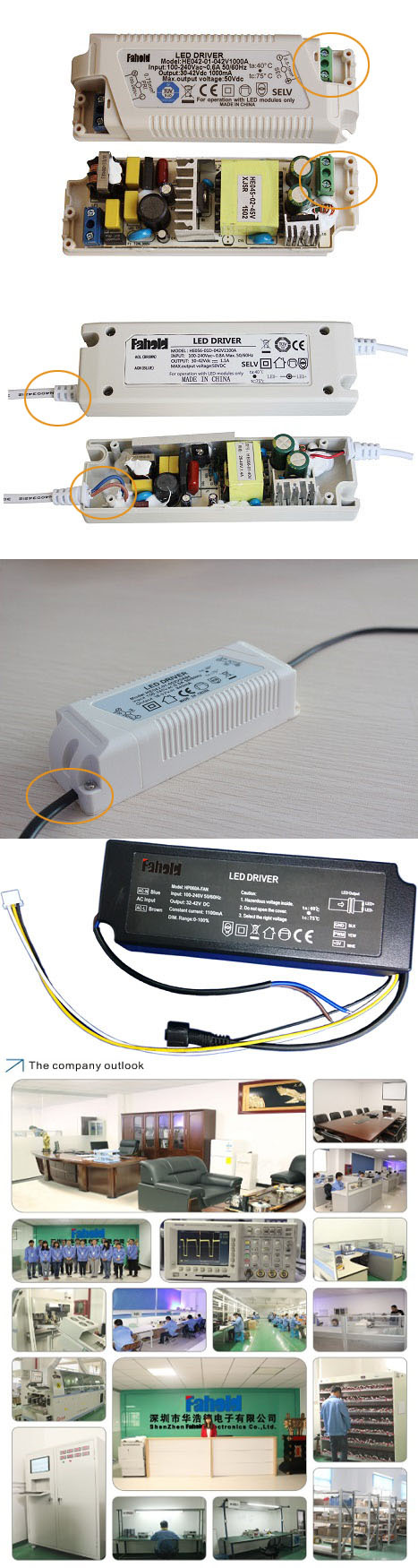

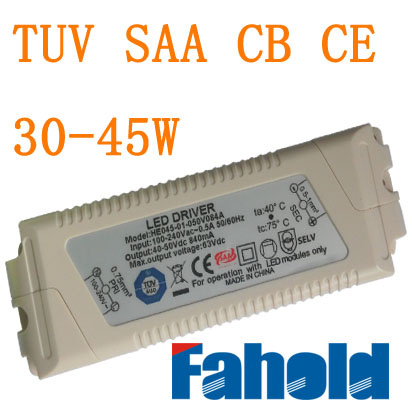

LED driver ,30-36W ,high quality capacitor and control IC, proved by TUV SAA CE CB,Be used for LED panel light,LED ceiling light,LED down light et. We are a professional LED driver manufacturer with 2000 square meters workshop. 5 years warranty.
Features:
1.White plastic case
2.Protection function:SCP/OTP/OVP
3. 5 years' warranty.
Specifications:
Output | DC output | 32V~58VDC |
Current range | 220~1300mA | |
Rated power | 30~45W | |
Ripple&Noise | 250mV | |
Current regulation | ±3% | |
Starting time | 2000mS/230Vac, 3000mS/115Vac | |
Input | Voltage range | 90Vac-264Vac |
Frequency range | 47Hz-63Hz | |
Power factor | PF>0.94 | |
Efficiency | 83%typ @100Vac, 85%typ @220Vac | |
Inrush current | (Cold start)<75A@240Vac | |
Leakage current | 0.25mAmax @ 230Vac | |
Protection | Short circuit | Output short circuit protection |
Protection:Auto recovery after the fault removed | ||
Over voltage | Protection mode:Limit highest voltage, recovery after the fault removed. | |
Over temperature | 105°C±5 °C ( Internal radiator's temperature) | |
Protection mode:Closed Output voltage,recovery after temperature automatic recovery. | ||
Environment | Operating temperature | -10°C~+50°C |
Safety&EMC | Safety | CE EN 61347-1, EN61347-2-13 SAA AS/NZS IEC 61347.2.13:2013 AS/NZS 61347.1:2002 |
HI-POT | I/P-O/P: 1K5Vac | |
Insulation resistance | I/P-O/P: 100M Ohms/500Vdc | |
EMI |
| |
Harmonic current | IEC 61347.2.13:2013 Class C compliant | |
Others | Dimension | 130mm*43mm*30mm(L*W*H) |
Net weight | 170g |
