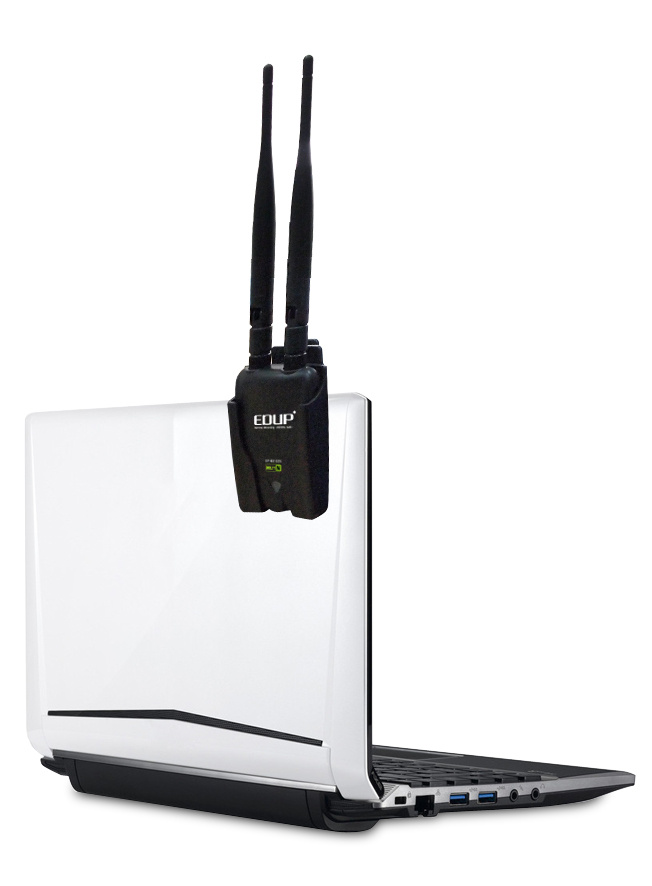

300Mbps EDUP EP-MS1539 5372 Chipset Double Antenna High Power WiFi Adapter Wireless Network Card
Specifications
Wireless Standards
IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b
Host Interface High speed USB2.0/1.1 interface
Data Rate 802.11n: Up to 300Mbps (downlink) and 150Mbps (uplink)
802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Frequency Band 2.4GHz ISM (Industrial Scientific Medical) Band
Chipset Ralink 5372
RF Frequency 2412 ~ 2462 MHz (North America)
2412 ~ 2472 MHz (Europe)
2412 ~ 2484 MHz (Japan)
Radio Channel 1 ~ 14 channels (Universal Domain Selection)
Range Coverage Up to 3 times farther range than 802.11g
Antenna type Integrated Antenna
Roaming Full mobility and seamless roaming from cell to cell
RF Output Power 13 ~17 dBm (Typical)
Modulation 11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
Data Security 64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
Network Auto-switch to use 802.11n or 802.11g or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance
Site Survey with Profile function
Configuration & Management Plug-and-Play setup and installation
Management Utility supports 2000 / XP/ Vista
Media Access Control CSMA/CA with ACK
LED Indicator Link/Active ( Green )
Operating System Windows 2000, XP 32/64-bit, Vista 32/64-bit,
Linux and MAC OS X
Weight 18g
Environment Operating Temperature: 0oC to 40oC
Storage Temperature: -20oC to 75oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
Meets 64/128-bit WEP, WPA, and WPA2 security standards
Provides 300Mbps transmission rates
WPS (PBC and PIN) enabled device
Supports Soft AP to establish a quick wireless LAN network
Supports Windows 98SE, Me, 2000, XP, Vista
