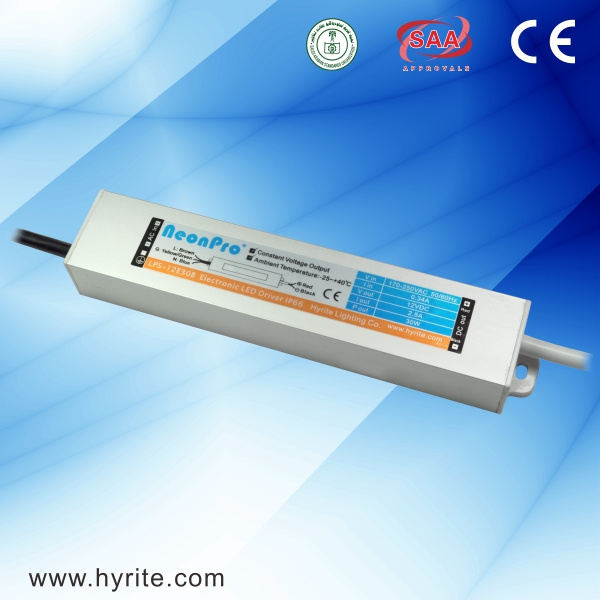

30W 12V IP67 Single-Output Outdoor Waterproof LED Driver with SAA
Product Feature of Outdoor waterproof LED Driver:*170-250 VAC, 12VDC
*Constant Voltage type; Mature models
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*SAA/CE/RoHS/SASO approval.
Specification of Outdoor waterproof LED Driver:| Model no. | LPS-12E30B |
| Model series | LPS-B |
| Input voltage | 170-250 VAC 50/60 Hz |
| Power | 30 W max |
| Output type | Constant voltage |
| Dimming | Not dimmable |
| Power Factor | Low PF~0.6 |
| Power factor | Low |
| Efficiency | 80% |
| Output voltage | 12VDC ± 5% |
| Output current | 2.5 A max |
| Overload protection | 105%-120% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -25~40ºC |
| Installation | Outdoor waterproof |
| IP rating | IP 67 |
| Cooling | Free air convection |
| Certificates/standards | CE |
| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*1 (18cm) |
| Dimensions(L*W*H) | 170*32*22 mm |
| Weight(kg) | 0.2300 |
| Packing information | 50 Pcs/ Carton, G.W 11.5KG |
Applications of LED Driver* LED module
* LED strip
* LED-neon tube
* Bar light
* Other signage lighting
Important Parameter of LED Driver:* Store Temperature: -25~75° C
* Working Temperature: -25~40° C
* Work environment: Indoor or outdoor installations
* Waterproof Rating: IP67
Shipping Method:* Ocean or Air transportation
* International Express:DHL FedEx TNT UPS EMS etc.
Our Service & Advantages: * 24 hours Service for customers all over the world
* More than 20 years sales and manufacturing experience for LED Power Supply and Neon transformers in China.
* All of our products are sold to overseas market.
* Our products passed CE ROHS SASO TUV SAA UL approval.
Welcome to our factory!Only 45 mins away from Guangzhou International Baiyun Airport.
Contact Info:Company Name: Hyrite Lighting Co. (known as NeonPro)
Address:15 Junye RD, Shishan Industry Zone C, Shishan, Nanhai, Guangdong,P.R.China, 528225
Tel: +86-757-81200188(10 lines)
Fax: +86-757-81200369
Customer Service: 400 660 8083 (China), +86-757-81200368(Overseas)
Website:www.hyrite.com
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
