Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

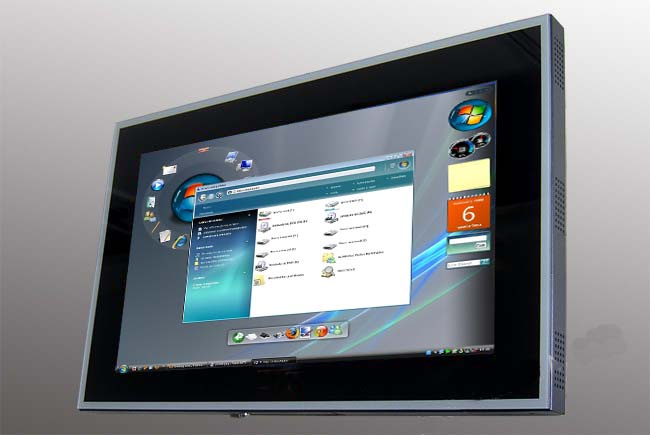

32 inch All in One Touch Screen PC Specifications
Touch Screen: 32 inch IR Touch Screen, Tempered Glass in 3mm(one point click)
Operating System: Ubuntu 10.04 (default), support Windows XP, Windows 7, Windows Vista, Linux
Processor: Intel Atom 330-Dual Core Intel Atom processor
Chipset: Intel 945GC chipset, 82945GC Northbridge with integrated graphics, 82801GB ICH7 Southbridge
Memory: 2G(default), one 240 pin DIMM socket supporting 533/667MHz single channel DDR2
Audio: RealTek ALC662 codec with HDA and 6 channel audio
Video: GMA 950 integrated graphics
Storage: 160G SATA HDD
Network Interface: Gigabit Ethernet
Wireless LAN: Optional: 802.11b. G. N with antenna
Portable DVD: Portable DVD (optional)
Power: 80W, 110V-230V, 50/60Hz
I/O Ports: 6xUSB
2xeSata
1xVGA
1xS-video
1xRJ45(10/100/1000 LAN)
1xAudo(mic, hearphone)
1xPS/2
1xSerial Port
Power socket
Housing: Metal Case (black color)
WallMount: Vesa Holes, Wallmount bracket
Display Parameter:
Screen Size(inch): 31.5 (Diagonal) TFT-LCD
Aspect Ratio: 16: 9
Display Resolution(DOT): 1366(w)x768(h), RGB
Active Area(mm): 392.26(v)x697.68(H)
DOT Pictch(mm): 0.4425(w)x0.4425(H)
Brightness: 500CD/m2
Contrast Ratio: 1000: 1
Display Depth: 8-bit, 16.7m colors
View Angle: Left / right 170° , up 170° , down 170°
Accessaries:
Mouse optional
Keyboard
Power Cable
Packing Details:
Machine size(mm): 842*525*90mm
Packing Size (mm): 935*165*655mm
Net Weight (kg): 25
Gross Weight (kg): 30
Dipu Electronics Co., Ltd is located in shenzhen of China, and found on 2004, specilizing in developing, manufacturing and distributing of LCD advertising player, LCD digital signage, LCD advertising display to North America, EU, Middle East Area, South Asia and South Amerca.
Our LCD advertising players are widely used in supermarkets, airport, lift, hotels, buses, exhibitions, Retail Stores, Restaurants, Sales Demos, Trade Shows, Lobbies, Waiting Rooms, Service Co, Banks, Gyms, Offices, Auto Dealers, Manufacturers and so on.
We become one of leading advertising display supplier after 5-years development in China. The latest advertising media technology is promptly applied to our products, like: LAN network media, GPS, 3G, wirless, touch screen, motion sensor. They can meet most of customers? ¢? ? Requests, and flexible support is our another advantage to catch with some special demands to develop the right software and hardware. Our engineers can make software to make our advertising players work under the controll of server manage system through LAN cable, internet, wirless, GPS, 3G net.
We are a manufacture which can produce the right and your-wanted products because there are a lot of experience in the past 5 years.
Our LCD Advertising player can pass the security certificates like CE, FCC, RoHS, CB and so on. We provide full of support and warranty for our-sold products, with rapidly response and giving the the best solution.
You are welcome to Dipu, the LCD advertising player, LCD digital signage, LCD advertising display supplier to set up relationship, and let us help you to give the economic and right solution for your advertisement project.
