Product Specifications
| Prod Model: |
SC-3216 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
| Type: |
Portable |
| Game Function: |
Without Game Function |
| Screen Size: |
16:9 |
Product Description
Features:
# We-Based Management Software
# Program Scheduling and Loop
# Fashionable Housing Design
# Stable Embedded System
# Easy Setup

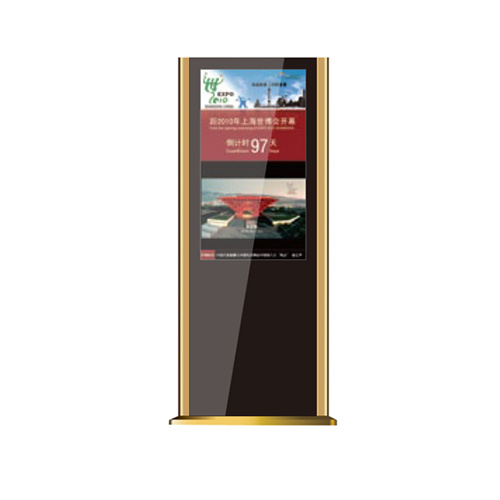

SC-3216 is floor standing LCD network player integrated with the latest DSM80 digital signage solution. It features with simple installation, centralized management, web-based management software, etc.
With R&D ability on both hardware and software, OEM and ODM services are available.
Any size between 8 inches and 42 inches are available
Production Feature Description
1. Display: A grade NEW 32" TFT LCD
2. ARM based Multimedia Processor
3. Touch Screen Function (Customization)
4. Built-in WiFi/3G module (Optional)
5. Support Video/Audio/Image/Text/Streaming Video
|
LCD Spec. |
LCD Panel Type |
32 Inches, 16: 9 |
|
LCD Resolution |
1366 x 768 |
|
Viewing Angle |
178° /178° |
|
Color |
16.7M |
|
Response Time |
5ms |
|
Contrast Ration |
3000: 1 |
|
Brightness(cd/m2) |
500 |
|
Player Spec. |
Processor |
ARM based Multimedia processor |
|
Network |
10/100 Mbps Fast Ethernet |
|
Storage |
Default 8GB SD card (Maximum up to 128GB) |
|
Wireless |
Built-in module of WiFi 802.11b/g or 3G (Optional) |
|
USB Host |
USB2.0 x 1, USB1.0 x 1 |
|
Power Input |
AC 100V~240V 50/60 Hz |
|
Software Spec. |
Media Support |
Video / Audio / Picture / Scrolling text/Streaming Video |
|
Video format |
MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS, DAT, MPG, MPEG, VOB |
|
Audio format |
MP3, WMA, WMA Pro, AAC, ADPCM, OGG Vorbis, Dolby Digital AC3, Dolby Digital Plus, FLAC |
|
Picture format |
JPEG, BMP, GIF, PNG, TIFF |
|
Scrolling Message (Ticker) |
Horizontal, Adjustable speed, effect, font and background color |
|
Local Time and Date |
Support |
|
Multiple Zones Display |
Support multiple zones on screen |
|
Others |
Player Dimension |
1750 x 770 x 100 mm |
|
Power Consumption |
100W |
|
Environmental Factors |
Operating temperature: 0-55° C |
|
Relative humidity: 20%-80% |
|
Color |
Silver, Black or any other color |
|
Speaker |
built with 2 stereo speaker |
|
Accessories |
Wall-mount plate, Remote, Key, Power Cord |
|
Certification |
CE, RoHS, FCC |
Founded in 2006 by a group of talented IT specialist, Signage (China) is always dedicated itself to developing various digital signage products and DS related solutions.
In the past five years, we have launched hundreds of easy-to-use and economic products including Digital signage media player, LCD advertising player, Digital signage management software, Floor-Standing KIOSK, 3G wireless digital signage, Touch Digital Signage and more.
Our products are widely used in retail, healthcare, corporate, government, education, entertainment industries in more than 30 countries.
At Signage (China), our priority is to continuously offer easy, stable and economic digital signage solutions
