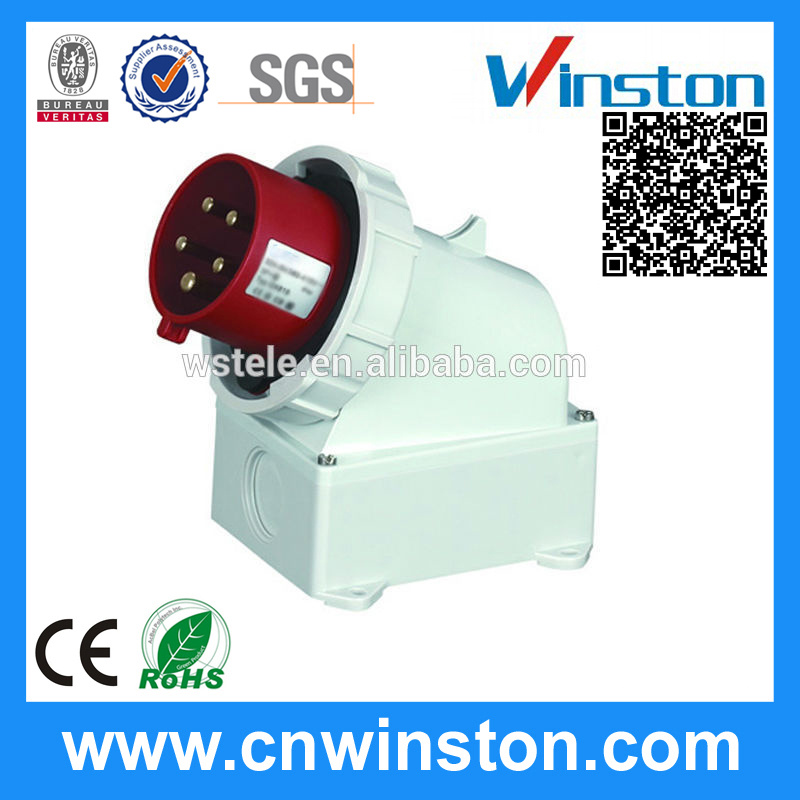

Product Specifications
| Prod Model: |
WTS-1006, 1007, 1008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Current: |
32A |
| Voltage: |
110V |
| Pole: |
5pin |
| Conductor Crosssectional Area: |
4-6 |
| Ground Level: |
6h |
| Frequency: |
50Hz/60Hz |
| Standard: |
European Standard |
| Function: |
AC Plug |
| Certification: |
CE |
| Brand: |
Winston |
Product Description
Product Description
Provide different series products for different environment
Resistance to bad weather and ageing
Good space stability and accuracy
Good resistance to acid and alkali
Effectively prevent power outages and leakage
Advantage:
Made of Nylon, PC plug and socket are contructed for extreme operating condition. Easy installation, long life reliability, which provide high insulating, resistant for chemicals and weather proof and almost unbreakable.
| Current | poles | 110V | 230V | 400V | 500V | >50-500 | >50-500 |
| 50a.60Hz | 50a.60Hz | 50a.60Hz | 50a.60Hz | 100-300Hz | a.300-500Hz |
| 3pole | 3pole | 4pole | 5pole | 3pole | 4pole | 5pole | 3pole | 4pole | 5pole | 3pole | 4pole | 5pole | 3pole | 4pole | 5pole |
| 4h | 6h | 9h | 9h | 9h | 6h | 6h | 7h | 7h | 7h | 10h | 10h | 10h | 2h | 2h | 2h |
| 16A | 3 |
| WST-1003 |
|
|
|
|
| 16A | 4 |
|
| WST-1004 |
|
|
|
| 16A | 5 |
|
| WST-1005 |
|
|
|
| 32A | 3 |
| WST-1006 |
|
|
|
|
| 32A | 4 |
|
| WST-1007 |
|
|
|
| 32A | 5 |
|
| WST-1008 |
|
|
|
| 63A | 3 |
| WST-1107 |
|
|
|
|
| 63A | 4 |
|
| WST-357 |
|
|
|
| 63A | 5 |
|
| WST-361 |
|
|
|
Earth Contact Position |
6h |
rated current (A) |
32 |
pole |
5 |
Dimension(mm) |
a |
90.2 |
b |
79 |
c |
98.5 |
d |
120.7 |
e |
155.4 |
f |
161.8 |
g |
5.5 |
h |
5 |
M |
32 |
M* |
1Pcs M32 Blind Cable Entry Can Cut |
Conductor crosssectional2 area (mm )Min. To Max |
4-6 |
TESTING AND QUALITY CONTROL:
Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands' product.
Temperature-Rist Test:
When we design the product, the first thing we need to do is make sure that our product can work in tated current for a long time. To keep the high quality, we use the experimental apparatus which can test the temperture-risk, product life, and mechanical property together for finsh the test more fast and widely.
CTI/PTI Test:
When we were designing the product, we not only need to considering the metal part, but also for the plasic part. CTI/PTI is a very improtant test for testing the plastic. We only chose the raw material which can pass the CTI/PTI test to keep our product have high insulativity and safety.
Sand Dust Test:
The operational environment is the first problem we considered when we design the product. We need to make sure that our product can be used over the world. So we need to evaluate the flexible condition of environment for store, deliver, and use in dry-sands or abound with lots of dusts.
The sand dust test adopted the manual simulation of sand & dust conditions. So we can ensure that whether they had long-term usage in al kinds of harsh natural environments
Rainfall Test:
As we know, whatever the product , product can inordinately influence with all kinds of liquids, whatever they in operative or storage. It has varying effects on their raw materials and features and even can damage the structures when they are permeated.
Rainfall test can exam the product outside case's stabilities and reliabilities of against the liquid.
Insertion and Extraction Force Test:
We need to make sure the variable temperature at first when we design the product. Base on the variable temperature, we try to do the best feeling of inspection and extraction force.
The target of insection and extraction force test is translate the nastic feeling to the exactly data, base on the data, we can provide the information for design, improve, and inspect the product
High And Low Temperature Test:
There are many type of nature environment and precipitating environment in the world, and hundreds of environment factor can effect the life of electrical equipment, especially for the temperature.
In the high temperature or low temperature condition, we can exam the product physical performance by the simulation. After the exam, we can judge the how is the performance of product by inspection.
Glow Wire Test:
Decrease the risk of risk fire disaster is necessary. The electrical equipment case more and more fire disaster in the modern life. The component of electrical equipment may be fire because overload or bad contact.
The glow wire test is use the simulation to know the risk of fire when the component is overload or glow in short time.
