Product Specifications
Prod Model: |
VMS-2515T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Digital Angle Surveying Machine: |
for 3D Measure and Inspection |
Measuring Range: |
150*100*150mm |
Accuracy: |
3+L/200um |
Resolution: |
0.001mm |
CCD: |
U.S. Teo C5 |
Lens: |
U.S. Navitar Zoom Lens |
Certification: |
ISO9001:2008, CE |
Factory Location: |
Dongguan |
MOQ: |
1 Set |
Warranty: |
12 Months |
Type: |
Standard |
Measure Method: |
Manual |
Material: |
Stainless Steel |
Product Description
No Difficult Products To Test In The World!

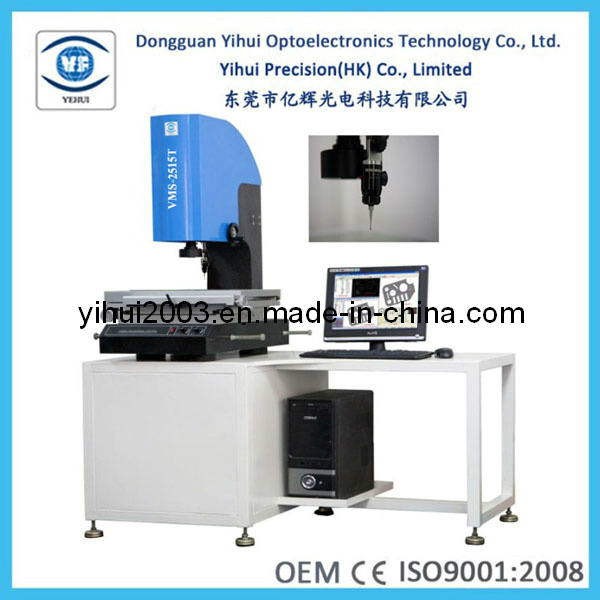

3D Optical Instruments for Angle Testing (VMS-2515T)
Usage:
Manual measurement;
To measure two coordinates with simple three coordinates areas;
To used in precision finishing industries, such as: Machinery, electronics, ironware, instrument, plastics and so on.
"Established in 2003, professional manufacturer of measuring machine. "
Function:
1. It can measure point, line, circle, arc and oval, rectangular and can improve the accuracy with the multi-point positioning function.
2. Coupled with our company's self-developed 3D optical measurement software, which used in three-dimensional work piece on the slope, round, ditch, columns, ball, blind holes to achieve rapid detection.
3. It has many great features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
4. Coordinating translation and straightening to make measurement more convenient and efficient and to improve measurement efficiency.
5. Measurement data and graphics can be directly converted to Word, Excel and Auto CAD for statistical analysis.
We also produce: 2D Video Measuring Machine (VMS), Profile Projector and CMM etc.
Welcome to visit our factory! ! !
Model |
VMS-1510T |
VMS-2010T |
VMS-2515T |
VMS-3020T |
VMS-4030T |
Table |
The metal table size(mm) |
354*228 |
404*228 |
450*280 |
500*330 |
606*466 |
The glass table size (mm) |
210*160 |
260*160 |
306*196 |
350*280 |
450*350 |
X, Y, Z Measurement Range (mm) |
150*100 |
200*100 |
250*150 |
300*200 |
400*300 |
Weight(kg) |
170 |
180 |
220 |
260 |
315 |
Dimensions ( L*W*H ) mm |
556*540*860 |
670*660*950 |
720*950*1020 |
Measuring Targeting System(Standard Accessories) |
Camera: made in U. S. TEO C7 1 / 2 Color CCD Camera |
Zoom lens magnification: original U. S. NAVITAR lens, with the company' s software to achieve fully automatic continuous zoom, with British RENISHAW probe |
Zoom lens magnification: 0.7 ~ 4.5X Data Resolution: 0.0005mm |
Video Total Magnification: 30~190X |
Full mouse / joystick is easy to operate |
Z-axis travel (mm): 150mm The indication error of X, Y-axis ≤ ( 3+L/200 ) um (L be regarded as measuring the length unit: mm) |
Lighting: Surface light and transmission light are used LED, brightness adjustable
Power: 220V(AC), 50Hz 30W |
Dongguan Yihui Optoelectronics Technology Co., Ltd. was established in 2003, which is a high-tech enterprise with the precision measuring equipment R&D, prodution and sales. Our main products are: Video measuring machine, optical projectors, CMM, tool microscope etc. It is widely used in electronics, plastics, mold, machinery, hardware, clocks and connectors, mobile and other industries.
At present, our company have passed ISO9001 and CE Certificate. What's more, we has more than 30 design patents, and got the sofware copyright registration certificate awarded by the state intellectual property office.
"Customer oriented, quality first, standardized management, continuous transformation" is our company's operating philosophy. Base on leading technology, excellent quality and scientific management makes our company recognized by our customers.
Our Target: No Difficult Products To Test In The World!
