Product Specifications
| Prod Model: |
F100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
110V~220V |
| Gross Power: |
120W |
| Dimensions(L*W*H): |
457mm*423mm*466mm |
| Weight: |
21kg |
| Printing Size: |
305 X 205 X 175 mm |
| Printer Material: |
PLA&ABS |
| Precision: |
0.02mm |
| Speed: |
300mm/S |
Product Description

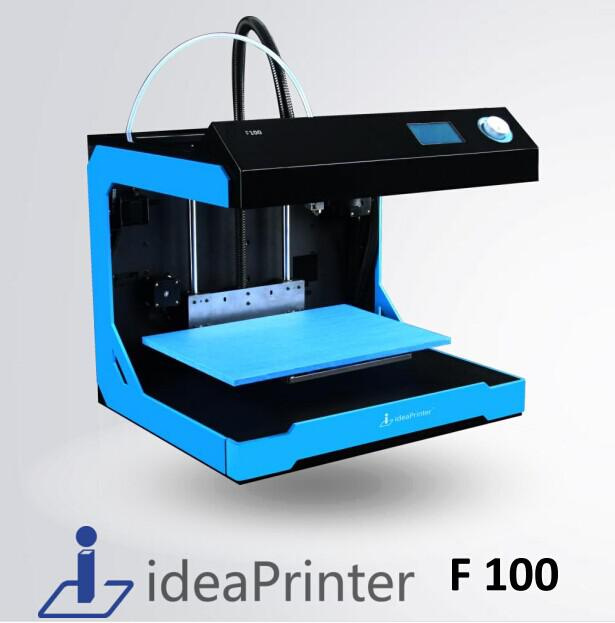

3D printer with high resolution 0.02mm
Product description
The 3D models offer the highest resolution of all desktop 3D printers worldwide.They're your assurance of detailed, high-quality results.
Every 3DPrinter model is equipped with our exclusive kernel algorithm.These features make operation user-friendly.Moreover, the system can be optimized and upgraded continuously.You won't be stuck with an outmoded product.
The 3D Printer products deliver stable performance unrivaled by any other line of commercially available desktop 3-D printers.Start using ideaPrinter, and stop worrying about stock-nozzle blockage, etc.
The 3DPrinter can print an extra model size up to 305 x 205 x 575 mm, the largest available!
The 3D Printer products look simple but are ergonomically pleasing.The ideaPrinter models also operate at the industry's lowest noise level.
Every 3D Printer model adopts the mold development, manufacturing and QA system of the top OEM factories for Fortune 500 companies.Our goal is to provide exquisite industrial products.
The 3D Printer products are forward-compatible with all the leading technologies:Wi-Fi, Ethernet, Bluetooth, power-up, remote monitoring, remote control, etc.
Printing Materials
ABS & PLA
Colors:White, black, red, green, blue, yellow, etc.
Thread diameter:3mm
Material:Imported ABS (modified)
PLA Material
Colors:Crystal clear, Black, red, green, blue, yellow, etc.
Thread diameter:3mm
Material:Imported PLA modified materials
PVA Water-Soluble Support Material
Color:White
Thread diameter:3mm
Material:Imported PVA (modified)
3M Blue High-Temperature-Resistant Adhesive Tape
Function:Strengthens the adhesion of printing materials, without edge-curling
Parameters:50 mm x 50 m;15 mm x 33 m
USAGE IN THE FIELD:
1.3D printer used in your factory.
It can reduce the design time and bring more efficient design.3D sample is the most useful bridge between you and your cutomers.Before the real sample, you use 3D printer to get one 3D sample, show it to your customers.Then your customers can see the sample and place the order.
At the same time, your designer can find the effencitive and modify it.It is less cost and high efficient.Then you can speed up the products to market
2.3D printer in your crafts field:
Crafts is made by hand-made mould, it need CNC.Now you can use 3D printer without mould.Then you can print it according to the drawing paper.If you find something to modify, you just modify it in the drawing paper.Then you can save the cost and the time
3.3D printer used in your daily life:
Do you want to get one copy of yourself?
Please use 3d scan to you, then transfer to 3d mould in sd card.Then insert 3d cart to 3d printer, it will take one or half an hour to print, then you can see one copy of yourself.
Picture of reference of sample:
Specifications:
| Specification |
| | F100 | F100L |
| Printing | | |
| Print Technology | Fused deposition modeling (FDM) | Fused deposition modeling (FDM) |
| Build Volume | 305 L×205 W×175 H mm | 305 L×205 W×575 H mm |
| [12 L×8.1 W×6.9 H in] | [12 L×8.1 W×22.6 H in] |
| Layer Resolution | 0.02 - 0.5 mm | 0.02 - 0.5 mm |
| Material | 3.0 mm [0.118 in] PLA Filament | 3.0 mm [0.118 in] PLA Filament |
| Nozzle Diameter | 0.4 mm [0.015 in] | 0.4 mm [0.015 in] |
| Nozzle working temperature | 190-230 ºC | 190-230 ºC |
| Print File Type | .gcode | .gcode |
| Number of Nozzle | Single | Single |
| Print Speed | 50-300 mm/s | 50-300 mm/s |
| Positioning accuracy | Z axis <0.0125mm | Z axis <0.0125mm |
| XY axis 0.0125mm | XY axis 0.0125mm |
| Operation interface | English, Chinese, Japanese, Korea | English, Chinese, Japanese, Korea |
| | | |
| Software | | |
| Software Bundle | ideaMaker | ideaMaker |
| 3D Model File Types | .stl, .obj | .stl, .obj |
| Supported OS | Windows XP/Vista, Windows7/8,+, Mac | Windows XP/Vista, Windows7/8,+, Mac |
| | | |
| Physical features | | |
| Outward Material | Metal | Metal |
| Printer Size | 460 L×400 W×460 H mm | 460 L×400 W×850 H mm |
| Carton Size | 600 L×520 W×550 H mm | 600 L×520 W×940 H mm |
| Wooden Case Size | 630 L×570 W×680 H mm | 630 L×570 W×1080 H mm |
| Printer Weight | 21 kg | 37 kg |
| Carton Weight | 28 kg | 46 kg |
| Wooden Case Weight | 42 kg | 65 kg |
| | | |
| Electrical | | |
| Power Requirements | 100-240 VAC; 50/60Hz; 120 W | 100-240 VAC; 50/60Hz; 120 W |
| Connectivity | USB, SD Card | USB, SD Card |
| | | |
