Product Specifications
| Prod Model: |
SIM5215/6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |

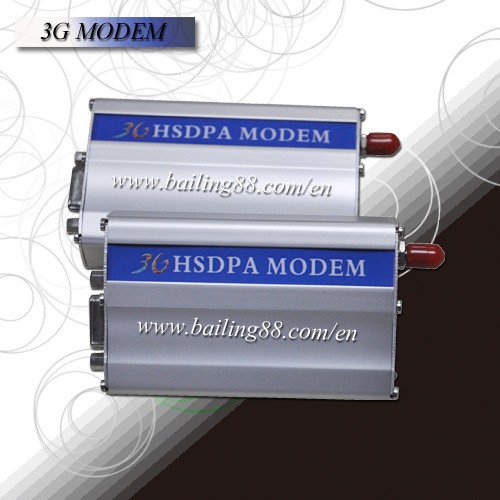

3G HSDPA WCDMA Modem SIM5218 Modem |
| Function: |
Data Collection and Transmission |
| Network: |
WCDMA |
| Input Voltage: |
6V-36V DC |
| Standby Current: |
56mA |
| Working Temperature: |
-20 °c -+55 °c |
| Size: |
98*54*25mm |
| Type: |
External |
| Interface Type: |
USB |
| Application: |
Industrial |
| Transmission Rate: |
384kbps |
Product Description
The SIM5215/6Eeries is a Multi-Band WCDMA/GSM/GPRS/EDGE module solution which supports WCDMA 384kbps for data transfer.
Moudle introduction:
The SIM5215 series is a Multi-Band WCDMA/GSM/GPRS/EDGE module solution which supports WCDMA 384kbps for data transfer.
With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's application. Its unique camera/video call feature shall add value to security solutions. It is ideal for a wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.
General features
* SIM5215A: Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
* SIM5215E: Dual-Band UMTS/HSDPA 900/2100MHz
Tri-Band GSM/GPRS/EDGE 850/900/1800MHz
* SIM5215J: Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
* GPRS multi-slot class 12
* EDGE multi-slot Class 12
* WCDMA 3GPP release 99
* Output power
- UMTS 1900/850: 0.25W
- UMTS 2100/900: 0.25W
- GSM850/GSM900: 2W
- DCS1800: 1W
- PCS1900: 1W
* Control Via AT Commands
* Supply voltage range: 3.3V~ 4.2V
* Operation temperature range: -30 ° C to +80° C
* Dimension: 36*26*4.7mm
* Weight: 7g
Support embedded Script Language
* LUA Script Language
Specifications for Data transfer
* WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
* EDGE
- Max. 236.8Kbps(DL), Max. 118Kbps(UL)
* GPRS
- Max. 85.6Kbps(DL), Max. 42.8Kbps(UL)
* CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
Interfaces
* USB2.0
* UART
* USIM card
* ADC
* Digital Camera
* GPIO
* I2C
* Micro-SD card
