Product Specifications
Prod Model: |
S3124 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Signshine |
Product Status: |
Stock |
Customized: |
Yes |
Package: |
Yes |
Module: |
Industrial 3G Module |
Frenquency: |
Quad Band 850/900/1900/2100MHz(Optional) |
Housing/IP Grade: |
Metal/IP 41 |
Product Dimension: |
81X55X20 Mm |
Certificate: |
CE FCC ISO9001:2008 |
Type: |
External |
Interface Type: |
RS-232 |
Transmission Rate: |
7.2Mbps |
Application: |
Fire Alarm, Bulgar Alert, Anti Thief |
Product Description

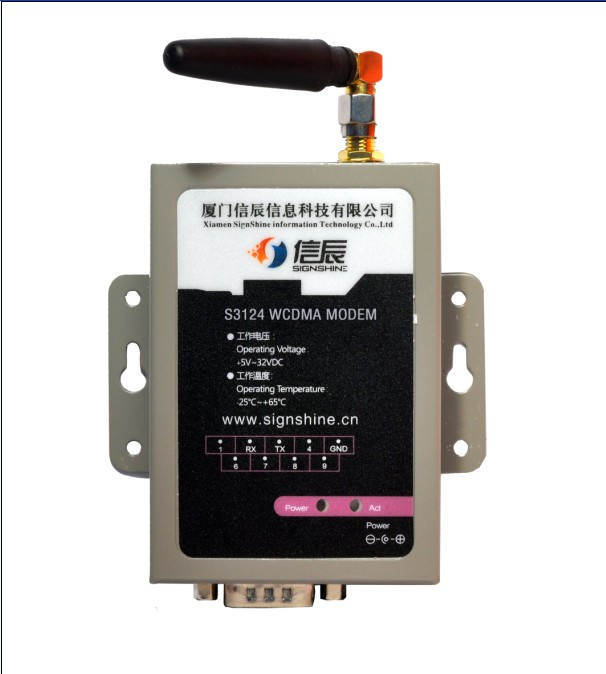

Signshine S3124 UMTS/WCDMA/HSPA 3G Modem SMS is a kind of cellular terminal device with RS232
That provides SMS, dial-up and CSD function by public UMTS/WCDMA/HSPA network.
UMTS WCDMA HSPA SMS Modem 3G adopts high-powered industrial cellular module and supports
RS232 port that can conveniently connect one device to a cellular network, allowing you to connect
To your existing serial device.
This 3G SMS Modem has been widely used in M2M/SCADA field, such as power automation,
Transportation, financial service terminal, factory automation, water, oil&gas, large machine maintenance,
Environment, building automation, outdoor digital signage ect.
Industrial Design
1. Industrial high-powered cellular module
2. Strengthened PCB which follows the principle of 20H and 3W, and adopts health benefits material to ensure the product stability
3. Industrial grade rigorous screened components
4. Industrial power adapter, wide voltage power supply design, power range DC7V~DC32V,
Reverse-voltage and overvoltage protection
5. Stability and Reliability
6. GPRS SMS Modem supports serial port I/O reset, offer DLL with control functions for I/O reset.
7. SIM/UIM port: 15KV ESD protection
8. RS232: 15KV ESD protection
9. Housing: Iron, providing IP41 protection, radiation protection, anti-interference, lightning protection design, special for
10. Outdoor harsh environmental application
11. All modules of GPRS SMS Modem RS232 are certified by CGD/CE/FCC certificate
EMC&EMI outstanding performance, passed 3000V electrical shock test&EMC test
High Performance
1. Support to send and receive Chinese, English, number and SMS alarm
2. Support APN and VPDN
3. Offer VB/VC/C#/DEPHI DLL for test, secondary development
4. Support to send bulk SMS
5. Support standard AT command
6. Support WINDOW/LINUX ect
Easy to Use
1. Offer the software to send and receive bulk SMS
2. Offer Center software based on C, VC, VB, DEPHI language
Content |
Serial Port |
1 RS232 port
Data bits: 7, 8
Stop bits: 1, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Flow control:None\RTS/CTS hardware flow control or XON/XOFF software flow control |
Indicator |
POWER,ACT and Online |
Antenna |
Standard SMA female interface, 50 ohm, lighting protection(optional) |
SIM/UIM |
Standard user card interface, support 1.8V/3V/5V SIM/UIM card, 15KV ESD protection |
Voice |
Standard Earphone and Microphone port(Need software matched) |
Power |
Standard 3-PIN power jack, reverse-voltage and over voltage protection |
Item |
Content |
Cellular Module |
Industrial cellular module |
Standard and Band |
Support UMTS / HSDPA / WCDMA 850/1900/2100MHz
Dual Band GSM 850/900/1800/1900MHz
Support GPRS / EDGE CLASS 12 |
Coding scheme |
HSDPA/HSUPA/WCDMA/EDGE/GPRS/CSD mode |
Bandwidth |
HSDPA / HSUPA mode: Download 7.2Mbps, Upload 5.76Mbps
WCDMA mode: Download / Upload 384Kbps |
TX power |
<24dBm |
RX sensitivity |
<-109dBm |
Function |
SMS |
Item |
Content |
Housing |
iron, IP41 protection, radiation protection, anti-interference, lightning protection design |
Product Dimensions |
81x55x20 mm |
Package Dimensions |
298x226x60mm |
Weight |
0.41kg |
Item |
Content |
Power Range |
DC 7~32V |
Standard Power |
DC 9V/500mA |
Communication Current |
Average:90mA@+9VDC;Peak:1.0A@+9VDC |
Standby Current |
Average:<15mA@+9VDC |
Item |
Content |
Operating Temperature |
-25 ºC ~+65ºC |
Extended Operating Temperature |
-35 ºC~+75ºC |
Storage Temperature |
-40ºC~+85ºC |
Relative Humidity |
95%(Non-condensing)
|
