Product Specifications
| Prod Model: |
4-20MA/0-10VDC/0-5VDC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Input And Output: |
0~5V/0~10V/10V/4~20mA/0-20mA |
| Operation Temperature: |
-45 ~ +85 ºC |
Product Description
4-20mA analog signal isolation transmitter Selection Example:
Example 1: Signal input 1:4-20mA; Signal input 2:4-20mA; Signal input 3:4-20mA;signal output 1:4-20mA output 2:4-20mA; Signal in--output 3:4-20mA;power supply:24VDC; Model:DIN35 3x3 MI-I4-P1-IO1
Example 2:Signal input 1:0-10VDC;Signal input 2:0-10VDC;Signal input 3:0-10VDC;output 1:0-5VDC;output 2:0-5VDC;output 3:0-5VDC; power supply:15VDC; Model:DIN35 3x3 MI-V2-P2-VO4
Example 3:Signal input 1:0-10VDC;Signal input 2:0-10VDC;Signal input 3:0-10VDC;output 1:4-20mA;output 2:4-20mA;output 3:4-20mA; power supply:24VDC; Model:DIN35 3X3MI-V2-P1-IO1

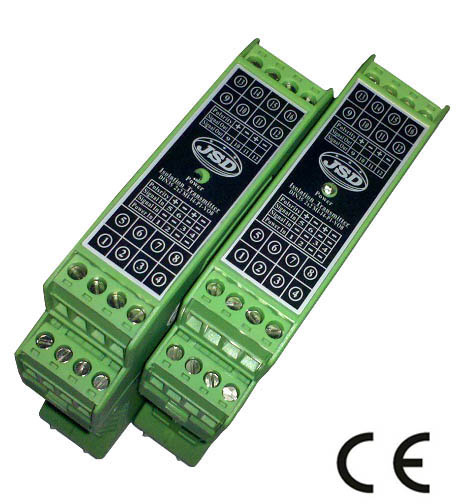

4-20mA signal isolation transmitter (3-input-3-output )Features:
Small size, low cost, international standards DIN35mm rail mounting
three-port isolation (input, output, operating supply)
3-input-3-output ,isolated between channels
High accuracy (0.1% F.S, 0.2% F.S)
High linearity (0.1% F.S)
High isolation voltage (2500VDC/60S)
Low temperature drift (35PPM / ºC)
Wide Industrial class operation temperature (-45 ~ +85 ºC)
High reliability (MTBF> 50 Wan hour)
Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
International standard signal input and output (0 ~ 5V / 0 ~ 10V / 0 ~ ± 10V / 4 ~ 20mA / 0 ~ ± 20mA, etc.)
isolation transmitterapplication:
DC current / voltage signal isolation, conversion and amplification
industrial field signal isolation and remote transmission
analog signal ground interference suppression and data isolation/collection
4-20mA/0-20mA/0-5V/0-10V, etc signal isolation and transformation
instrumentation and sensor signal transceiver
non-power signal transmission
signal transmission distance without distortion
power monitoring, medical equipment isolation barrier
Sensor 4-20mA analog signal acquisition and conversion
PLC / DCS / PC system analog signal acquisition, isolation, conversion
