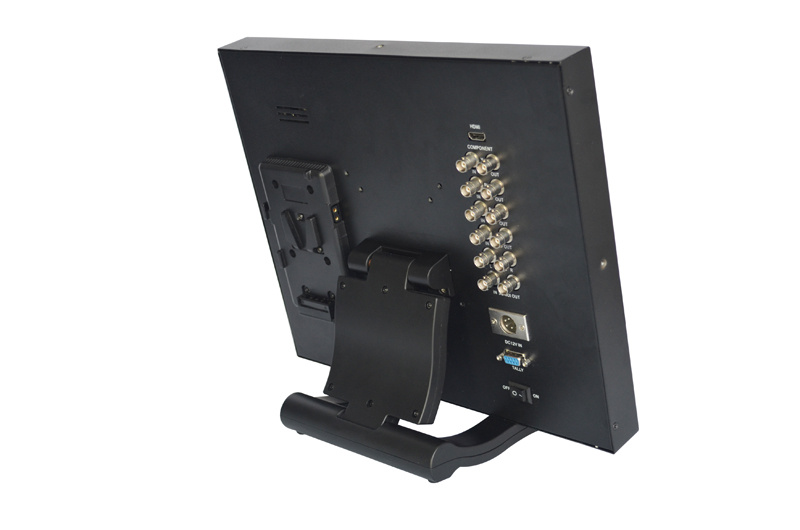

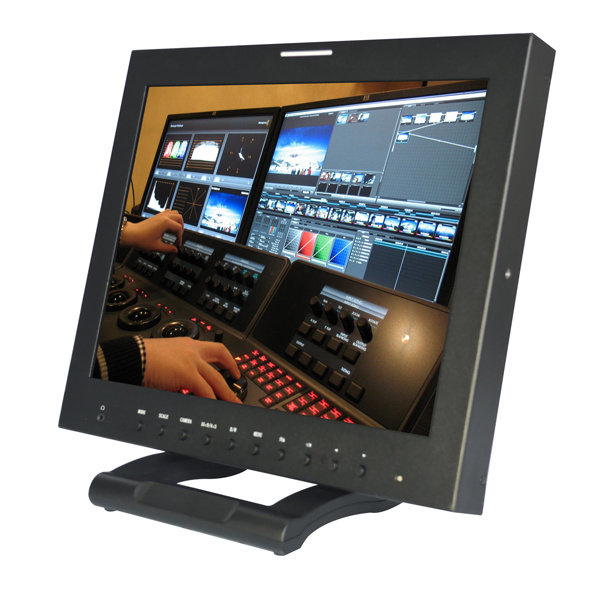

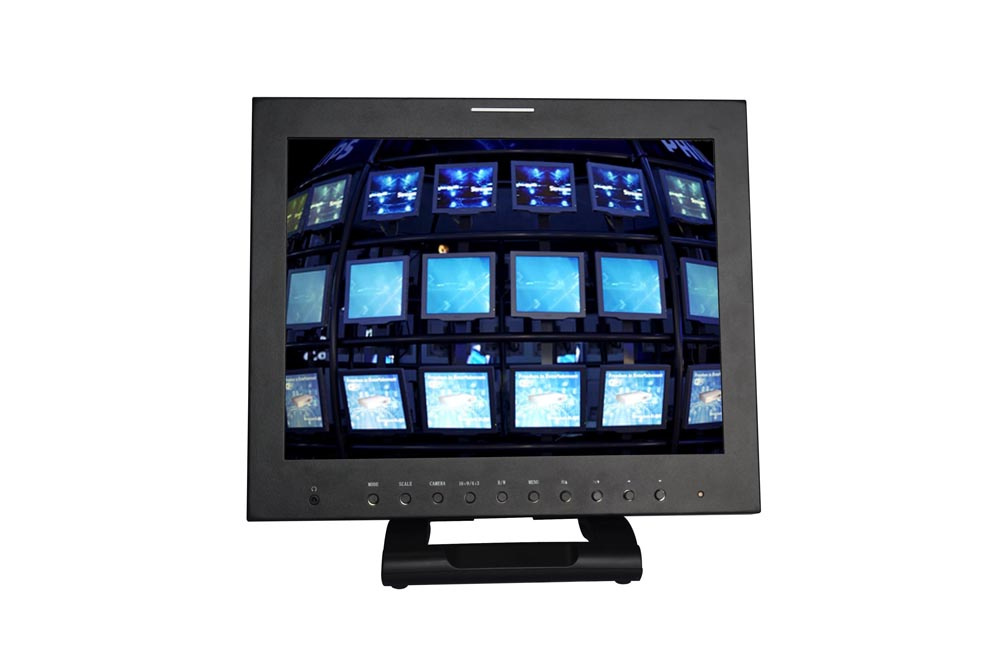

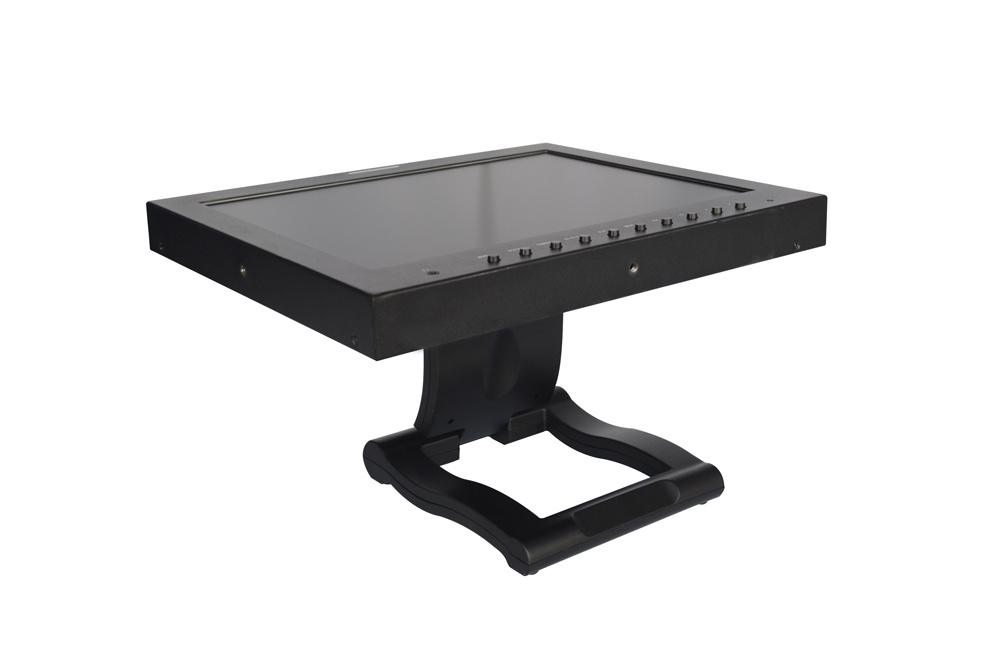

4: 3 15" Broadcasting Monitor with SDI, HDMI, YPbPr, AV Input
Model: P150-3HSD
Resolution 1024x768
Brightness 200CD/m²
Distance: 0.204(H)x0.204(V)mm
Contrast: 500: 1
Response Time: 16ms
Aspect Ratio: 16: 9&4: 3
Backlight: LED
Inputs: 3G/HD/SD-SDI, HDMI, Component, Composite
Outputs: 3G/HD/SD-SDI, Component, Composite, speaker
Viewing Angle: 40° /40° (L/R) 10° /30° (U/D)
Power Consumption: ≤ 8.5W
Input Voltage: DC6V-14V± 15%
Work Temperature: -20-60
Store Temperature: -30-70
Unit Size: 345Lx290Wx65H(Fold)
345Lx175Wx315H(Unfold)
Unit Weight: 3.6kgs
| Specification | Advanced Features |
| Description: | 15" 4:3 Broadcast HD 3G-SDI Monitor | *Peaking Focus Assist(peaking filter) |
| Model: | P150-3HSD | *Image Multiplication&Freeze&Flip |
| Resolution | 1024x768 | *Picuture in Picture(PIP) |
| Brightness | 200cd/m² | *H/V Delay |
| Distance: | 0.204(H)x0.204(V)mm | *front earphone jack |
| Contrast: | 500:1 | *Tally Red/Green Color |
| Response Time: | 16ms |
| Aspect Ratio: | 16:9&4:3 | *Check Field | Mono,Red,Green,Blue,Off |
| Backlight: | LED | *Aspect Ratio | Dot by Dot,Panorama,Zoom1,Zoom2,4:3,Full screen |
| Inputs: | 3G/HD/SD-SDI,HDMI,Component,Composite | *Scan Mode | Standard,Overscan,Underscan |
| Outputs: | 3G/HD/SD-SDI,Component,Composite,speaker | *screen Marker | Off,96%,93%,90%,85% |
| Viewing Angle: | 40°/40°(L/R) 10°/30°(U/D) | *Power Ways | DC XLR Power adapter |
| Power Consumption: | 8.5W | Sony V battery plate |
| Input Voltage: | DC6V-14V±15% | Panasonic Anton battery plate |
| Work Temperature: | -20ºC_60ºC | Power from DV device |
| Store Temperature: | -30ºC_70ºC | Accessories |
| Unit Size: | 345Lx290Wx65H(Fold) |
| 345Lx175Wx315H(Unfold) | XLR Power Adapter X 1 |
| Unit Weight: | 3.6kgs | Mini HDMI Cable X 1 |
| SDI Support mode: | BNC Connector X 3 |
| NO. | Resolution | Catalogue | Tally X 1 |
| 1 | 1080P@60HZ/59.94HZ | 3G-SDI | SDI Cable X 1 |
| 2 | 1080P@50HZ | 3G-SDI | BNC Cable X 1 |
| 3 | 1080I@60HZ/59.94HZ | HD-SDI | Operation Manual X 1 |
| 4 | 1080I@50HZ | HD-SDI | SONY V Mount Battery Plate X 1 |
| 5 | 1080P@30HZ/29.97HZ | HD-SDI | Panasonic Battery Plate (optional) |
| 6 | 1080P@25HZ | HD-SDI | |
| 7 | 1080P@24HZ | HD-SDI | Terms |
| 8 | 720P@60HZ/59.94HZ | HD-SDI | Price Term | FOB Xiamen,China |
| 9 | 720P@50HZ | HD-SDI | Payment | T/T,Paypal,Western Union |
| 10 | 720P@30HZ/29.97HZ | HD-SDI | Delivery Time | within 1 week after pay |
| 11 | 720P@25HZ | HD-SDI | Warranty | 1 year |
| 12 | 720P@24HZ/23.97HZ | HD-SDI | MOQ | 10pcs |
| 13 | 480I@60HZ/59.94HZ | SD-SDI | Sample is available |
| 14 | 576I@50HZ | SD-SDI | Packing |
| 15 | PAL | SD-SDI | Box size | |
| 16 | NTSC | SD-SDI | Per box G.W. | 5kgs |
Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.
Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.
Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.
We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
