4.5mm 6-LEDs Waterproof 1m Cable Support up to 32g TF Card Snapshot Video Record Handheld Removable
| Price: |
US $ 29-32/Piece |
| Trade Terms: |
FOB,CIF,DDP |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,D/P,Paypal |
Description

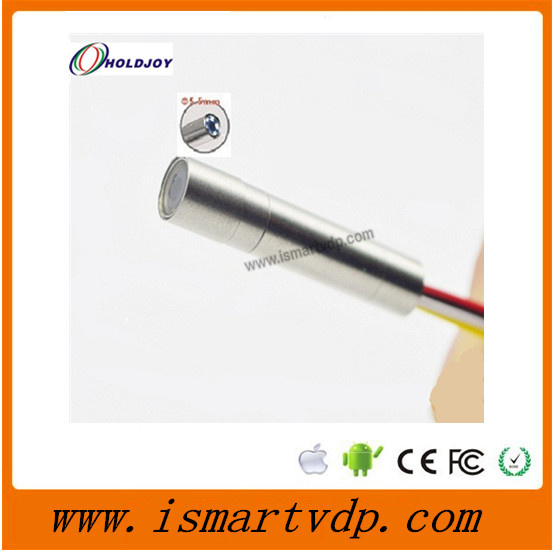

This camera module work with an OV 1/12 CMOS chip. The size is Φ4.5 x 18mm,and resolution is 720*428 (300000Pixel),support NTSC/PAL. With a shout focal distance Len, it's images, color are high quality. Our camera module is best in marketing with this size.
Two kind of lens we offer they are FOV:60 and FOV:80
The Application field: Detal Endoscope,Medical treatment, Bore cope,Industrial Endoscope etc. can assemble LED light, and snake pipe.
Connection definition
white | LED DC3.5V |
| Red | DC3.3V~5V ,max:5V |
| Black | GND |
| Yellow | (NTSC Only)/ CVBS |
Lens
EFL | 1.19mm |
| DOF | 20mm~60mm |
| FOV | 60 |
| F.NO | 2.8mm |
| Struc | 2P+IR |
Electrical Spec
| Sensor | 1/12 color COMS |
| Image Sensor | 1440μm×1653μm |
| Pixel size | 1.75μm×1.75μm |
| Fps | 60Fps(N) / 50Fps(P) |
| Effective Pixels | 720(h)×480(v) |
| Sensitivity | 960mV(Lux×sec) |
| Operation Temperature | -10ºC~+50ºC |
| Voltage | DC 3.3V~3.5V/100mA max 5V |
| S/N Ratio | 38dB |
| Video Output | CVBS/NTSC |
| LED | 6PCS 0402 LED,DC3.3V×50mA |
| Dynamic range | 66dB |
| Dimensions | 4.5mm×18mm |
| AWB | ON |
| AGC | ON |
Attention
1:This camera module is a precision electronic components, please Keep, use and transport in a right way.
2:If you have special requirement, please contact with us
3:With IPR, no copy
| Prod Model: |
RA34518A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Fixed Focus Lens |
| Type: |
Video Camera |
| Sensor: |
CMOS |
| HDMI Format: |
576I |
| Kind: |
Autofocus Lens |
| Certification: |
SGS |
| Feature: |
Mini Size |
| Effective Distance: |
10-30m |
| Remote Control: |
Without Remote Control |
