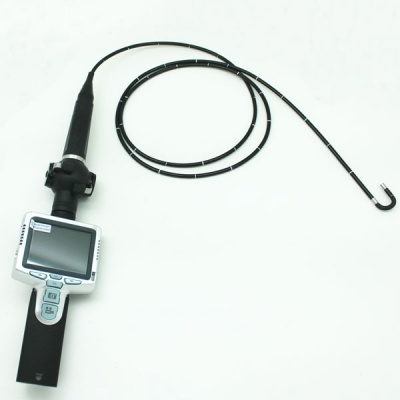

4 Direction of Bending Fiber Infrared Night Vision Endoscope

The main accessories show

The main technical parameters
1, the camera parameters

Camera specifications	With 7.5mm	Angle of view	110 degrees
The number of pixels	The 460000 pixel	Camera shell	Alloy steel
Depth of field (line of sight)	5mm~150mm offers 10mm~ optional	Types of lighting	5W highlight the fiber optic lighting

2, the probe orientation parameters

The operating rod control and guide bearing	The four direction	Position fixing	The resistance of the internal mechanism is fixed
Orientation angle	A unilateral 90 DEG.	The guide distance and the length of	The standard 1 meters (the longest can be 2 meters)
Axial control	360DegreeAxial rotation	Insert tube	Braided tube outer covering smooth polyurethane (four layers)

3, display and system configuration

The weight of system	The complete set of equipment including: 3.4kg bare chassis: <1kg	Host size	21cm X 11cm X 4.5cm
Power Supply	Lithium battery: 3.7V, 2000maH	Materials of construction	Encapsulated PC fall proof enclosure
LCD screen	Bright 3.5 inch active matrix color LCD	Brightness adjustment	Manual adjustment
The data port of I/O	The USB2.0 port,TvoutVideo signal output	Memory	8GHigh speedSDCard (32G max)
Function keys	Menu operation, videoRecording, photos	White balance	Automatic white balance
The image function	Mirror image, magnification, preview, contrast	Language support	Supports 15 country

4, the work environment

The host system working temperature	-10~50 OC, LCD screen 0 DEG C preheating	Relative humidity	A maximum of 90%, no condensation
The working temperature of video probe	-20DEG ~70 DEG, 0 DEG C should reduce oriented operation	Waterproof	Objective probe and can bear IP67 waterproof
Storage temperature	-20~60 OC

Application field:
1, the aerospace industry: used for product for aircraft structure frame, engine, blade inspection
2, automobile production, repair: used for auto parts, engine inspection products
3, electricity production, the construction unit: used for wind power plant, hydroelectric power plant, thermal power plant, electric power construction unit detection products EndoscopeTesting
4, precision casting and mechanical manufacturing: for machinery spare parts production, product with casting unit inspection
5, petroleum, chemical industry, pressure vessel industry: for the detection of oil products, chemical industry and pressure vessel industry
6, railway, ships, construction engineering, research units: for the detection of locomotive product, turbine, engineering, pharmaceutical, food pipeline
7, national defense and military security, security: for weapon equipment, public safety inspection
