Product Specifications
| Prod Model: |
42HSL40-1004YAL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
2 Phase |
| Step Angel: |
1.8 Degree |
| Voltage: |
3.9V |
| Current: |
1.0A |
| Type: |
Linear |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Number Of Poles: |
Other |
| Brand: |
Jk |
| Speed: |
Other |
| Application: |
3D Printer , Robot ,and So on |
| Operate Mode: |
Other |
| Certification: |
CE / RoHS / ISO9001 |
Product Description

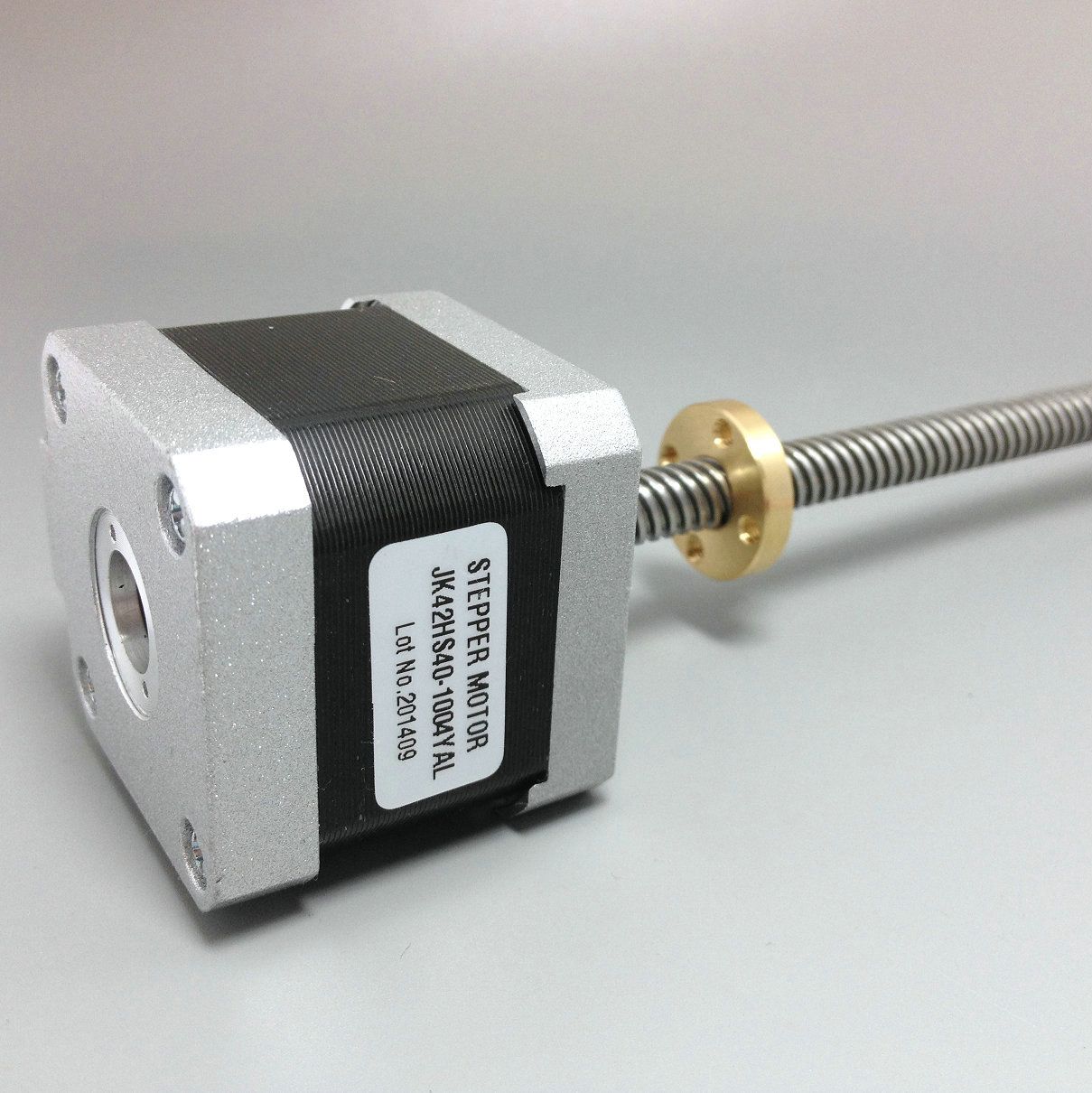

42HSL 42mm linear stepping motor with CE / ROHS
Brand Name: JK
Model Number: JK42HSL
Certification: CE / ROHS / ISO9001
Packaging Details: Export carton
Delivery Time: FOR SAMPLES, 7-10days; For batch. 15-25days.
Payment Terms: T/T, L/C, PAYPAL, Western union
Supply Ability: 100000pcs/month
Item Specifications:
1. NEMA8 Hybrid Stepper Motor
2. Model Number: JK42HSL40-1004YAL
3. Phase: 2 Phase
4. Linear stepper motor
5. Structure: Hybrid
6. Step Angle: 1.8 degree
7. Motor Height: 40mm
8. Current: . 1A
9. Resistance: 3.9Ω
10. Inductance: 8.9 mH
11. Motor Weight: 0.28KG
12. Holding Torque: 8.9 Kg. Cm
13. Speed: Low / High speed
14. Certification: CE, RoHS, ISO9001
15. Shape: Square
16. Applications: Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.
Description:
NEMA17 linear stepping motor, 42mm linear actuators
NEMA17 linear stepping motor, 42mm linear stepper motor
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor,
Advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
About our manufacturer:
We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and RoHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.
High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.
If you need more information. Please contact with us, our contact information:
Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Contact Person: Ms Jane
More Quantity. More discount! ! !
|
Model No. |
Step distance |
Motor Length |
Rate
Voltage |
Current
/Phase |
Resistance
/Phase |
Inductance
/Phase |
Holding Torque |
Mass |
|
Mm/step |
(L)mm |
V |
A |
Ω |
mH |
kg.cm |
No. |
|
JK42HSL40-1004YAL |
|
40 |
3.9 |
1 |
3.9 |
8.9 |
4.8 |
0.28 |
|
JK42HSL34-0804 |
0.01 |
34 |
5.4 |
0.8 |
6.7 |
9.5 |
2.5 |
0.2 |
|
JK42HSL40-0406 |
0.02 |
40 |
12 |
0.4 |
26 |
23 |
3 |
0.26 |
|
JK42HSL48-0406 |
0.04 |
48 |
12 |
0.4 |
30 |
22 |
3.8 |
0.36 |
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 1, 500 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor.
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
